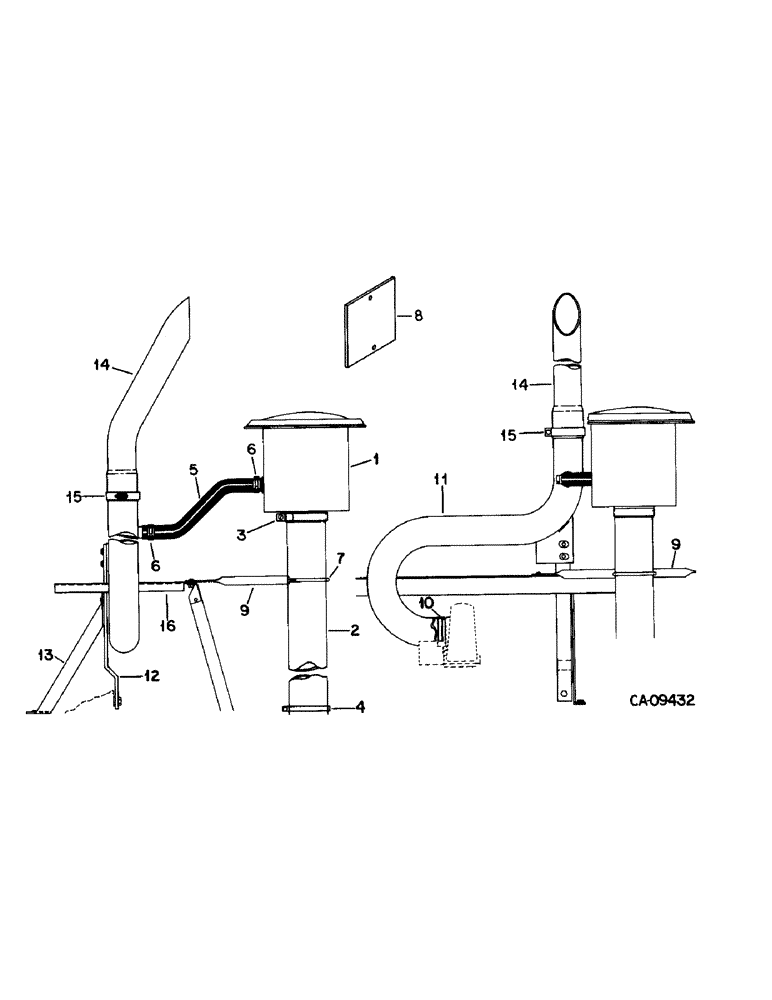

Запчасти Case IH 1470 (12-04) - POWER, ASPIRATED PRE-CLEANER PRE-SCREENER, FACTORY INSTALLED ASPIRATOR ATTACHMENT W/O MUFFLER Power

1

130918C91

PRESCREENER ASSY.

PRE-CLEANER PRE-SCREENER ASSY

1шт.

2

131065C2

TUBE

air cleaner intake pipe

1шт.

3

650986C1

CLAMP,69.85mm - 82.55mm

intake pipe

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 znd type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

390462R91

CLAMP

pre-cleaner tube

1шт.

5

HOSE, exhaust ejector, use 19 inch from bulk hose, 407001R2

1шт.

6

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, no. 20 type F hose

2шт.

7

121839C1

BOLT,5/16" - 18 x 4.88" W x 5.30" L

U-BOLT, pre-cleaner support

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

121985C1

PLATE

air intake cover

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

130729C1

SUPPORT

pre-cleaner strap

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

107594C1

SPACER

turbo exhaust sleeve

1шт.

11

1275892C1

MUFFLER

PIPE, exhaust

1шт.

NLS

NO LONGER SERVICED

2шт.

12

1324171C1

BRACKET

SUPPORT, exhaust pipe

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 znd type 5

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

13

1324211C1

BRACKET

SUPPORT, exhaust pipe

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

1275833C1

TUBE

PIPE, exhaust ejector elbow

1шт.

15

1321280C1

CLAMP

exhaust elbow

1шт.

16

SHEET, top cover rear, refer to group 20 under engine shield and service deck

1шт.
