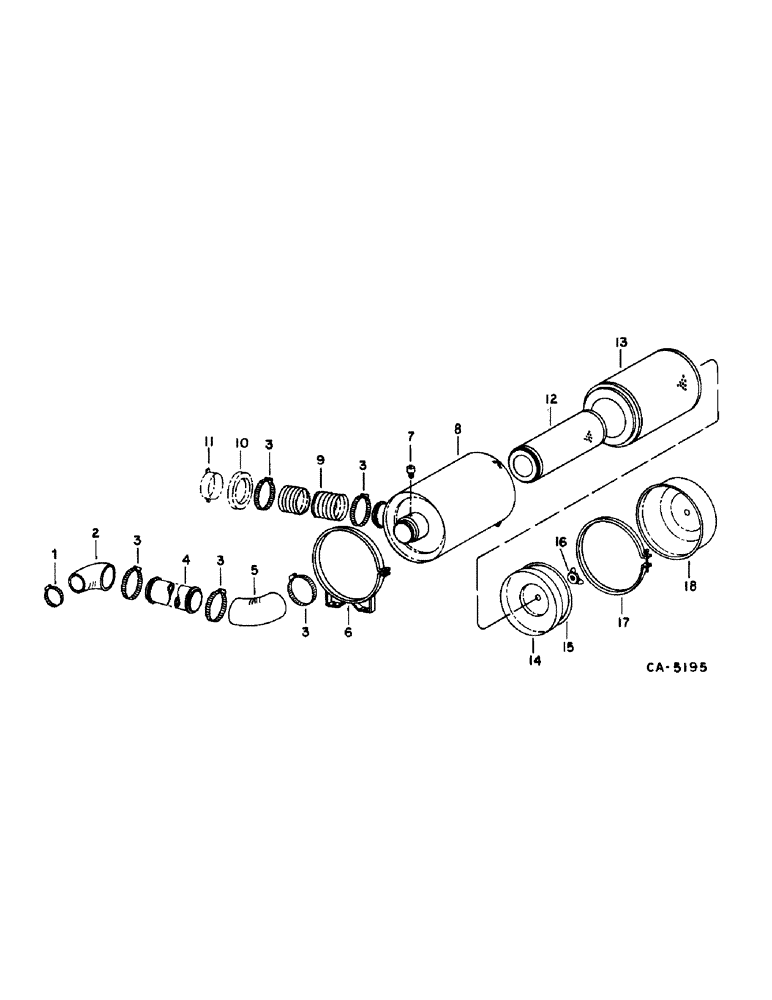

Запчасти Case IH 1470 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

121788C91

CLEANER

ASSY, air dry type, includes ref. nos. 12 thru 18

1шт.

1

146569C1

CLAMP

1шт.

2

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW, inlet engine

1шт.

3

146570C1

CLAMP

air cleaner inlet hose

5шт.

4

130963C1

AIR INTAKE TUBE,4" OD, 30" Length

TUBE, air cleaner outlet

1шт.

5

218899R1

ELBOW

air cleaner outlet

1шт.

6

259922C91

BAND

air cleaner mounting

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

7

366078C1

INDICATOR

air restriction

1шт.

8

HOUSING, air cleaner, not serviced separately, order cleaner assy, 121788C91

1шт.

9

130720C1

INTAKE AIR HOSE,4.50" ID x 60.00"

Air Cleaner Inlet 4.50" ID x 60.00"

1шт.

10

SEAL, air cleaner tubing, refer to group 6 under rotary screen chute

1шт.

11

TUBE ASSY, air cleaner inter, refer to group 6 under rotary screen chute

1шт.

12

932390C1

AIR FILTER

ELEMENT, safety

1шт.

13

932391C2

AIR FILTER

ELEMENT, primary

1шт.

14

383610C1

BAFFLE

1шт.

15

225067R1

O-RING,10.62" ID x 0.27" Width

1шт.

16

412078C1

WING NUT

NUT

1шт.

17

891128R91

CLAMP

1шт.

18

529820R1

CUP

1шт.
