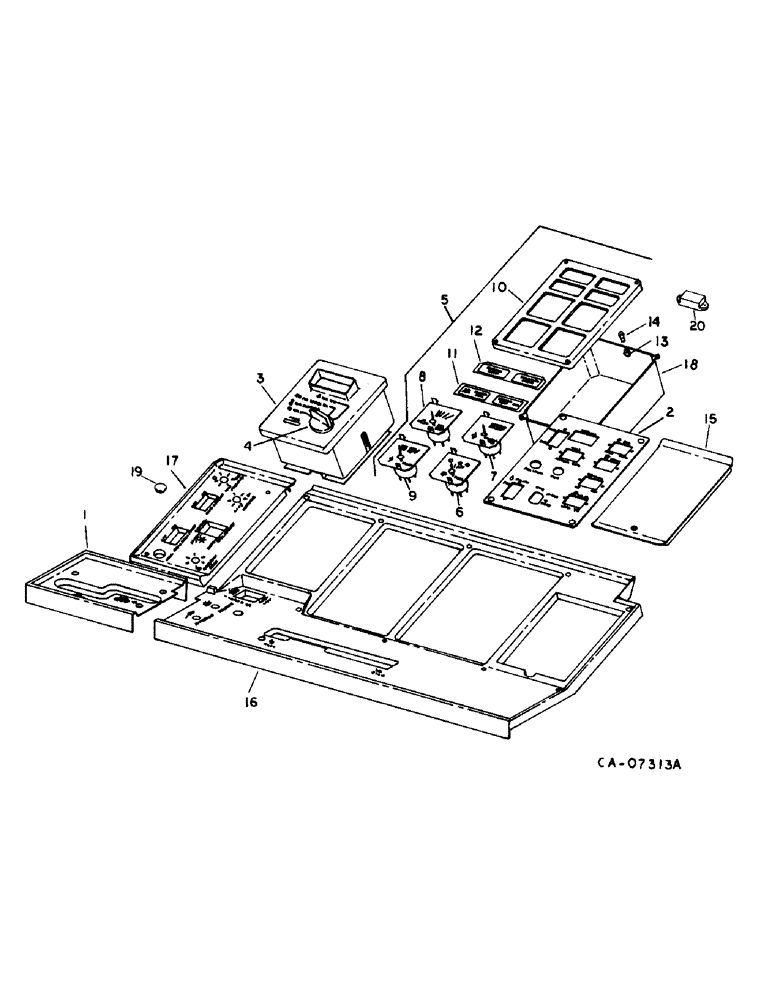

Запчасти Case IH 1470 (11-02) - INSTRUMENTS, INSTRUMENTS AND GAUGES, SERIAL NO. 10001 AND ABOVE Instruments

1

198988C1

COVER

hydrostatic drive console

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc O/HDCR tap

1шт.

2

1310773C1

COVER

ASSY, console switch plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

27017R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10 x 3/4 phc P/HDCR tap

1шт.

3

245256C91

TACHOMETER

SYSTEM, multi-position module, replaces 187512C91, includes ref. no. 4

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc O/HDCR tap

1шт.

4

196980C1

KNOB

1шт.

192208

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW, #8 x 3/16 c/pt znp hdl/s set

1шт.

5

198067C91

ELECTRICAL GAUGE

GAGE ASSY, cluster, includes ref. no.s 6 thru 14

1шт.

6

121604C1

ELECTRICAL GAUGE

GAGE, fuel

1шт.

7

121605C2

ELECTRICAL GAUGE

GAGE, temperature

1шт.

8

121606C1

ELECTRICAL GAUGE

GAGE, oil pressure

1шт.

9

121607C1

METER

VOLTMETER

1шт.

10

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

11

187597C1

LENS

warning light, shaker drive and elevator drive

1шт.

12

187596C1

LENS

warning light, oil pressure, brake, temp & amps

1шт.

13

121611C1

SOCKET

ASSY

8шт.

14

20627R1

BULB,C2F, #194, 14V

#194

8шт.

15

187573C1

COVER

fuse panel

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc O/HDCR tap

1шт.

16

1324973C1

COVER

W/PRODUCT GRAPHIC, console instrument panel, replaces 1301222C4

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc O/HDCR tap

1шт.

17

1301223C3

COVER

console extension

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc O/HDCR tap

1шт.

18

BODY, tachometer, order tachometer (NSS)

1шт.

19

183617C1

PLUG

RH console

1шт.

19

353-404

PLUG,Dome, .500" hole, Nylon

Header height and auto reel Dome, .500" hole, Nylon

4шт.

19

353-408

PLUG,Dome, .750" hole, Nylon

potentionmeter calibration

1шт.

20

1301238C1

PLUG

switch hole

2шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.
