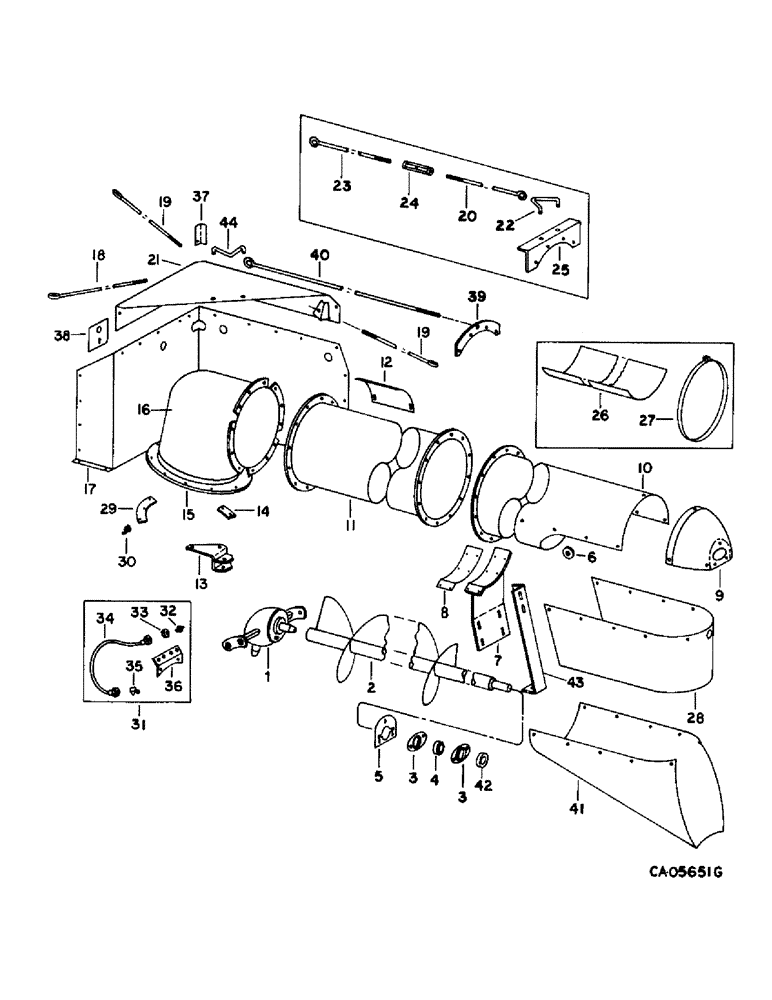

Запчасти Case IH 1470 (26-07) - GRAIN TANK, GRAIN TANK UNLOADER UPPER Grain Tank

1

HOUSING ASSY, unloader upper gears, refer to this group under unloader upper gear case assy

1шт.

2

191107C2

AUGER

ASSY, unloader horizontal, long

1шт.

3

571424R1

FLANGE

unloader auger outer brg., 3 bolt hole

2шт.

3

F9417

FLANGE

auger outer bearing, 2 bolt hole, replaces 612031R1

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, unloader auger outer ball

1шт.

5

182838C1

SUPPORT

cap outer bearing, for use with two bolt bearings

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

20824R1

WASHER

rear thrust downspout sheet, replaces two strips, 178168C1

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

7

195188C1

SADDLE ASSY.

SADDLE ASSY, unloader tube

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

8

195191C1

STRIP

unloader tube saddle

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

9

182837C1

SUPPORT TUBE

CAP, unloader rear tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

10

195342C1

TUBE

ASSY, horizontal auger rear, not perforated

1шт.

10

195344C1

TUBE

ASSY, horizontal auger rear, perforated

1шт.

11

192089C1

UNLOADING TUBE

TUBE ASSY, horizontal auger front, long

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

12

178158C1

PLATE

unloader front tube inspection

1шт.

13

191121C2

SUPPORT ASSY.

SUPPORT ASSY, cylinder front

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 type 8

1шт.

9418646

NUT,7/16"-14, G8

7/16 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

1шт.

25960R1

JAM NUT,Jam, 7/16"-14, G8

7/16 PHC jam type 8

1шт.

14

193472C2

PLATE

BAR, unloader tube keeper

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

15

193418C3

FLANGE

upper tube elbow

1шт.

16

193417C93

TUBE

ELBOW ASSY, unloader upper tube, includes ref. no. 15

1шт.

17

195390C3

SUPPORT

left center extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18

193625C1

ROD

unloader tube front lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

19

193626C1

ROD

unloader tube RH front lower

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20

191057C1

BOLT

unloader tube rear support, long, for use with 20ft, 22.5 ft, or 24 ft header, Serial Range: -1179

1шт.

120371

NUT,1/2"-20, G5

Lug 1/2"-20, G5

1шт.

21

186020C2

BRACKET

SUPPORT, unloader tube rod anchor

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

no. 3/8 x 1-1/4 t/hds

1шт.

22

193534C1

ROD

unloader tube support rear, Serial Range: -1179

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

23

193624C1

BOLT,1/2" - 13 x 10", LH Thd

unloader tube front support, Serial Range: -1179

1шт.

24

628698R1

TURNBUCKLE

unloader tube support rod, Serial Range: -1179

1шт.

25

193532C2

ANGLE

unloader tube support rod outer, Serial Range: -1179

1шт.

26

178165C2

COVER

auger tube section, for use w/perforated tube assy

1шт.

27

178166C1

CLAMP

auger tube section, for use w/perforated tube assy

4шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

186677C1

SPOUT, DISCHARGE

SHEET, unloader rear tube downspout

1шт.

29

186657C2

SUPPORT

front keeper

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

30

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub, Serial Range: -1179

1шт.

31

BANK, lub, requires ref. nos. 32 thru 36, Serial Range: -1179

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

33

F53473

LOCK NUT,1/8-27 NPSM

lub hose

4шт.

34

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lube 0.14" ID x 22.00"

2шт.

34

937781R91

HOSE

lub, 27 in., 685.8mm

2шт.

34

937782R91

HOSE

lub, 31 in., 787.4mm

2шт.

35

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING, 1/4-28 SAE 45 deg

4шт.

36

185134C1

SUPPORT

lub fitting

1шт.

37

186690C1

BRACKET

SEAL, corner

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

38

186691C1

PLATE

SEAL, support rod

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

39

181614C1

ANCHOR

ANGLE, tube support outer rod

1шт.

40

181613C1

BOLT,1/2" - 20 x 2360mm

unloader tube rear support

1шт.

169228C1

NUT

support bolt

1шт.

120371

NUT,1/2"-20, G5

1шт.

41

(Not used this application)

1шт.

42

564853R11

COLLAR

W/SET SCREW, auger outer bearing

1шт.

43

1319222C1

SUPPORT

unloader saddle

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

44

193534C1

ROD

unloader tube support inner

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.
