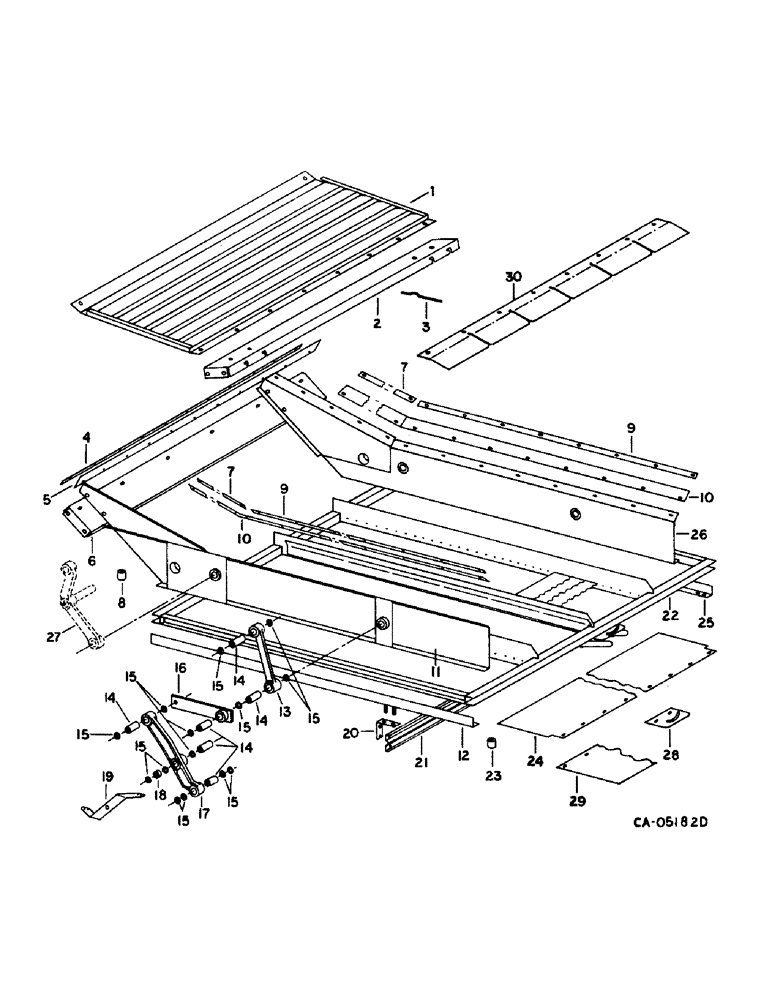

Запчасти Case IH 1470 (23-07) - AUGER BED, SHOE AND SHOE SIEVE, CHAFFER SIEVE Grain Pan, Shoe & Shoe Sieve

1

192056C1

GRAIN PAN

PAN ASSY, grain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

192060C1

SUPPORT

chaffer pan support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

175114C1

FINGER,Formed, 1 Prong, 264mm L

auger bed

13шт.

4

192048C1

BAR

front chaffer frame seal

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

5

192047C1

SEAL,63.5mm W x 1143mm L

chaffer frame front

1шт.

6

192044C1

SUPPORT

chaffer frame

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

192052C2

BAR

chaffer frame seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

8

186646C1

SPACER,5/8" Tube x 15/16"

chaffer sieve support front

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 x 2-1/4 type 8

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc P/T lock type 8

1шт.

9

192053C1

BAR

chaffer frame seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

10

192051C3

SEALING STRIP

SEAL, chaffer frame

2шт.

11

185430C4

RAIL

ASSY, chaffer left

1шт.

12

186369C1

ANGLE

CHAFFER SUPPORT LH

1шт.

13

175131C91

ARM ASSY.

ARM ASSY, rear hanger, includes ref. no. 14

1шт.

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

5/8 x 6-1/2 type 8

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

9412231

NUT

5/8 phc P/T lock type 8

1шт.

14

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

rear hanger arm

1шт.

15

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

rear hanger arm

10шт.

16

188010C91

ARM ASSY.

ARM ASSY, shoe rear, includes ref. no. 14

1шт.

17

192941C92

LEVER ASSY.

LEVER ASSY, shoe, includes ref. no. 14

2шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x 1.20 znd

1шт.

18830R1

BOLT,Hex, 5/8"-11 x 5", G2

5/8 x 5 type 1

1шт.

9412231

NUT

phc P/T lock type 8

1шт.

18

168250C1

RING

SPACER, shoe and chaffer lever

2шт.

19

193107C2

SUPPORT

shoe lever LH

1шт.

19

193108C2

SUPPORT

shoe lever RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

186674C1

ANGLE

rear deflector

2шт.

120376

NUT,5/16"-18, G5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

192070C2

CHANNEL

rear

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 hex-hd flange lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

22

1330685C1

GRAIN SIEVE

SIEVE ASSY, 1-5/8 close slat chaffer, replaces 172840C3

1шт.

Ref #22 - SB 81-87 10/19/95

1шт.

22

1330684C1

GRAIN SIEVE

SIEVE ASSY, 1-1/8 grain adj chaffer, replaces 172839C3

1шт.

22

1319092C2

SIEVE

chaffer, Peterson, parts accessory

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

23

612233R1

SPACER,5/8" Tube x 1 1/8"

chaffer sieve support rear

2шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

24

195186C2

SEAL

SEAL, chaffer

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

25

186370C1

ANGLE

chaffer support RH

1шт.

26

185431C4

RAIL

ASSY, chaffer right

1шт.

27

LEVER ASSY, chaffer drive hanger, refer to this group under shaker shaft and auger drive

1шт.

28

186675C1

ADJUSTING PLATE

chaffer lever

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

29

(Not used this application)

1шт.

30

1319258C1

COVER

SUPPORT, chaffer finger cover

1шт.
