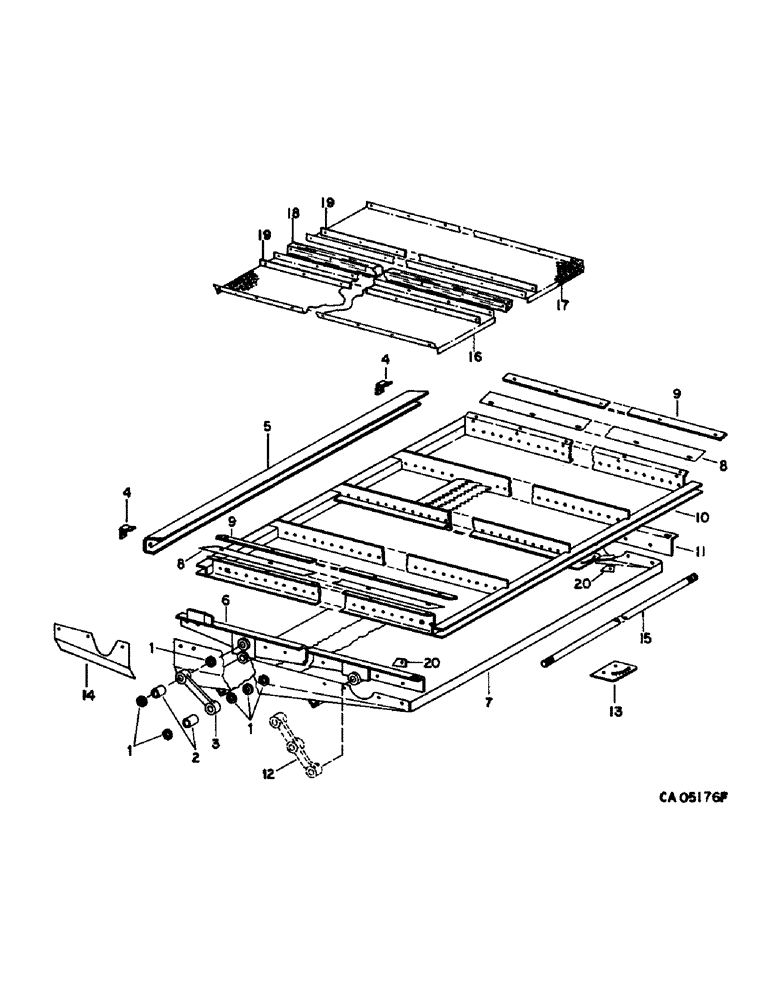

Запчасти Case IH 1470 (23-05) - AUGER BED, SHOE AND SHOE SIEVE, SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

shoe hanger arm bushing

12шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm

4шт.

3

175160C91

LEVER

HANGER ASSY, shoe front, includes ref. no. 2

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 znd

1шт.

9412231

NUT

5/8 phc P/T lock type 8

1шт.

4

182684C2

CLIP

shoe front support

2шт.

120376

NUT,5/16"-18, G5

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

1319238C1

ANGLE

ASSY, shoe front, replaces 182693C1

1шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1302070C3

SUPPORT

ASSY, shoe side LH

1шт.

7

1319211C1

BOTTOM

ASSY, shoe, replaces 191763C1, furnish package 1319275C91, Serial Range: -12000

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

192192C1

SEALING STRIP

shoe sieve

2шт.

9

192193C1

BAR

shoe sieve seal

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

10

192091C2

GRAIN SIEVE

SIEVE ASSY, shoe, includes ref. no. 13

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

10

194348C1

GRAIN SIEVE

SIEVE, show 1/10 RD holes, parts accessory

1шт.

10

194349C1

GRAIN SIEVE

SIEVE, shoe 7/32 RD holes, parts accessory

1шт.

10

194350C1

GRAIN SIEVE

SIEVE, shoe 3/8 RD holes, parts accessory

1шт.

10

194351C1

GRAIN SIEVE

SIEVE, shoe 1/2 RD holes, parts accessory

1шт.

11

1302071C3

SUPPORT

ASY, shoe side RH

1шт.

12

LEVER ASSY, shoe, refer to this group under chaffer sieve

1шт.

13

186675C1

ADJUSTING PLATE

shoe lever

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

126177

WING NUT

NUT, 1/4 wing

1шт.

14

1302335C2

SUPPORT

forward shoe return LH

1шт.

14

1302336C2

SUPPORT

forward shoe return RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

1319217C1

ROD

return pan bottom rear

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

1шт.

16

1319285C1

SCREEN

perforated side section, for use with sieve, 192091C1

2шт.

17

1319286C1

SCREEN

perforated mid section, for use with sieve, 192091C2

2шт.

18

1319284C1

BAR

wood spacer, for use with sieve, 192091C2

1шт.

19

1319300C1

BAR

screen fastener backing, for use with sieve, 192091C1

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

1319219C1

PLATE

BAR, shoe return pan filler

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1319278C91

PACKAGE

ASSY, alfalfa, consists of

1шт.

1319300C1

BAR

screen fastener backing

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

18шт.

18024

SEAL

BOLT, 1/4 x 1-1/4 znd type 5

9шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

27шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

27шт.

1319284C1

BAR

shoe sieve

1шт.

1319286C1

SCREEN

perforated mid section

2шт.

1319285C1

SCREEN

perforated side section

2шт.

1319258C1

COVER

SUPPORT, chaffer finger cover

1шт.

1319238C1

ANGLE

ASSY, shoe front, instruction, installing (NSS)

1шт.

1319275C91

COWL

PACKAGE ASSY, shoe return pan with increased slope, consists of

1шт.

1319219C1

PLATE

BAR, shoe return pan filler

2шт.

1319211C1

BOTTOM

ASSY, shoe return pan

1шт.

1319217C1

ROD

return pan bottom rear

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

2шт.

1302335C2

SUPPORT

forward shoe return, LH

1шт.

1302336C2

SUPPORT

forward shoe return, RH, instructions, installing (NSS)

1шт.
