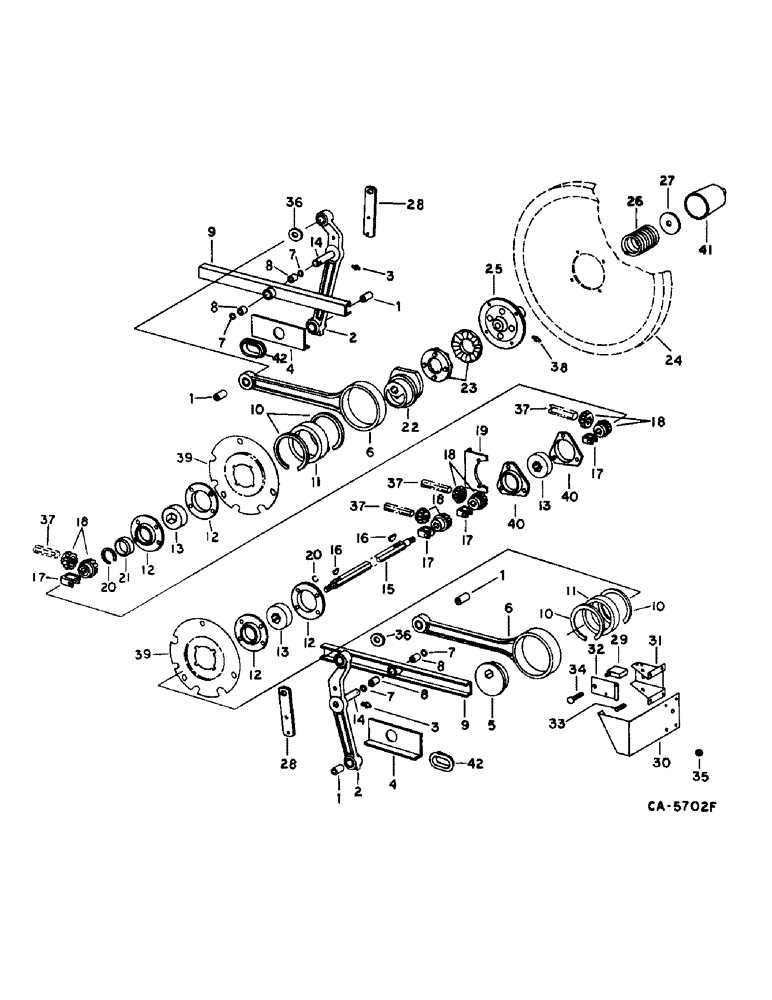

Запчасти Case IH 1470 (23-03) - AUGER BED, SHOE AND SHOE SIEVE, SHAKER SHAFT AND AUGER DRIVE Grain Pan, Shoe & Shoe Sieve

1

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

chaffer drive hanger arm and shaker shaft pitman

4шт.

2

1321374C91

LEVER ASSY.

LEVER ASSY, chaffer drive hanger, replaces lever, 186667C91, by also ordering plug, 1302644C2, includes ref. no. 1 and 14

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 phc P/T lock type 8

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

4

186684C1

SUPPORT

seal chaffer rail

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

5

183053C2

ECCENTRIC

CAM, shaker shaft pitman drive LH

1шт.

6

186738C91

PITMAN

shaker shaft, includes ref. no. 1

1шт.

7

372759R91

SEAL, front hanger support bearing

4шт.

8

551139R91

BEARING, NEEDLE

BEARING, front hanger support

4шт.

9

186651C91

SUPPORT ASSY.

SUPPORT ASSY, front hanger, includes ref. nos. 7 and 8

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

892775C1

SNAP RING,#475, 5.070", Int

RING, shaker shaft pitman brg. snap, replaces 630508C1

4шт.

11

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING, shaker shaft pitman

2шт.

12

180955C1

FLANGED BEARING,0.375"

FLANGE, shaker shaft bearing, 3 bolt, Serial Range: -1179

4шт.

12

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE, shaker shaft bearing, 4 bolt, Start Serial: 1180

4шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, shaker shaft

3шт.

14

186740C1

PIN,22.25mm OD x 147.32mm L

SHAFT, hanger arm

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

21761R1

WASHER

.906 x 1.500 x .054

1шт.

15

183051C1

SHAFT

shaker

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cad P/T lock type 5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

23245R1

WASHER

.781 x 1.750 x .164

1шт.

22482R1

WASHER

1.406 x 2.250 x .105

1шт.

16

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

17

225265R1

CLAMP

auger bed gear

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad P/T lock type 5

1шт.

18

185411C1

GEAR-SET

GEAR SET, auger drive bezel, 14T, matched set, Serial Range: -10000

4шт.

18

1300639C1

GEAR-SET

GEAR SET, auger drive bezel, 14T, matched set, Start Serial: 10001

4шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

19

186589C1

SUPPORT

auger drive center brg.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

575186R1

SNAP RING

RING, shaker shaft pitman

2шт.

21

935856R1

BUSHING

shaker shaft pitman

1шт.

22

191429C2

CAM

shaker shaft pitman drive RH

1шт.

23

B12170

RATCHET,Clutch Slip, 94.49mm

shaker shaft drive slip clutch

2шт.

24

PULLEY, shaker shaft driven, refer to group 29 under belt drive, RH side

1шт.

25

186508C1

HUB

shaker shaft drive slip clutch, Serial Range: -10000

1шт.

25

1303136C1

HUB

shaker shaft drive slip clutch, Start Serial: 10001

1шт.

26

19302K

SPRING

shaker shaft drive slip clutch

1шт.

27

167521H1

SPRING WASHER

slip clutch retainer

1шт.

28

186752C1

BAR

pitman stabilizer

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

29

574649R91

SWITCH

ASSY, auger alarm

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

no. 6 x 1-1/4 znd slt

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

131014

WASHER

.156 x .375 x .036

1шт.

30

1309429C2

SUPPORT

auger alarm switch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

31

167323C1

SUPPORT

auger alarm switch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2.500 hd type 1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 GA C-Z

1шт.

32

167324C1

HINGE

STRIP, auger alarm switch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23099R1

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 std hd

1шт.

19765R1

SCREW

BOLT, 3/8 x 1-3/4 pln weld

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

33

M296

SPRING

alarm switch strap return

1шт.

34

194304C1

STOP

ASSY, auger alarm switch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

35

117959

GROMMET,5/16" ID x .719" x .062"

5/16 ID x .72 OD

1шт.

36

608701R1

WASHER

.656 x 1.250 x .054

1шт.

37

AUGER ASSY, refer to this group under auger bed

4шт.

38

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 str self-tap lub

1шт.

39

1302221C1

PLATE

shaker shaft, Start Serial: 1180

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

40

180955C1

FLANGED BEARING,0.375"

FLANGE, center shaker shaft bearing

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

41

182544C1

SHIELD

INSULATOR, shaker spring

1шт.

42

1302644C2

SEAL

PLUG, chaffer rail front pivot, seal, used w/lever, 1321374C91

2шт.
