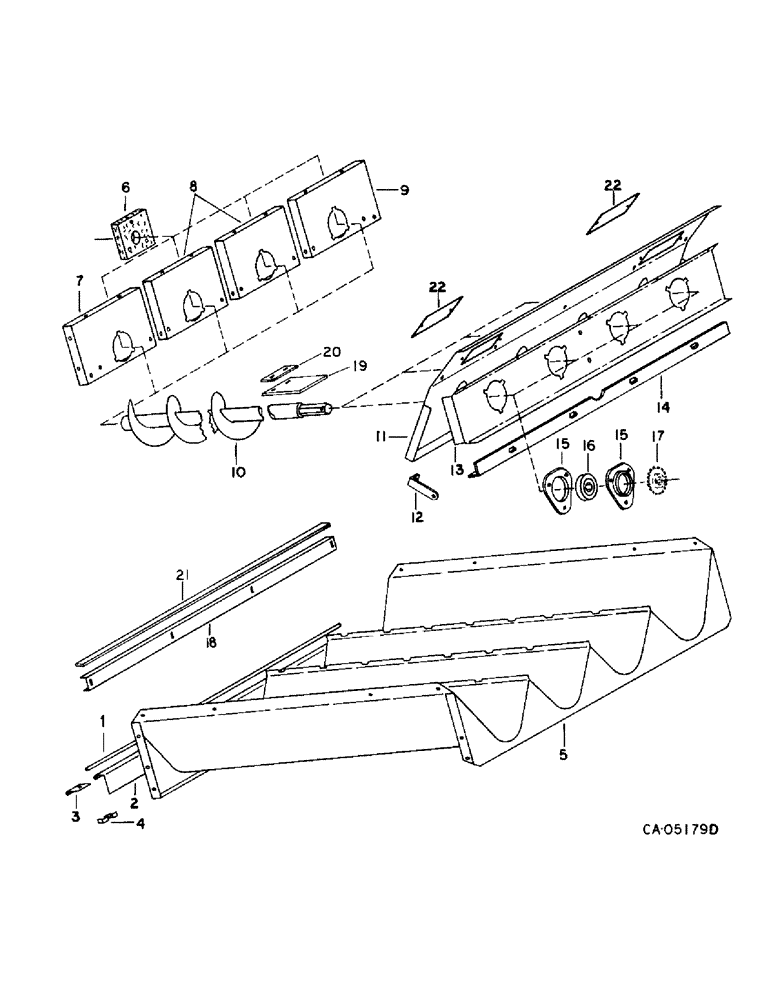

Запчасти Case IH 1470 (23-01) - AUGER BED, SHOE AND SHOE SIEVE, AUGER BED Grain Pan, Shoe & Shoe Sieve
№
Артикул
Название
Примечание
Количество
1
(Not used this application)
1шт.
2
(Not used this application)
1шт.
3
(Not used this application)
1шт.
4
(Not used this application)
1шт.
5
185038C3
TRAY
TROUGH ASSY, auger
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
6
193414C2
BOARD
front auger brg
4шт.
27451R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5
BOLT, 3/8 x 2-1/4 crg type 5
1шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 cad P/T lock type 5
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
7
191662C1
SUPPORT
front auger LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
8
191659C1
SUPPORT
front auger center
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
9
191663C1
SUPPORT
front auger RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
10
193398C1
AUGER
ASSY, RH rotation, Serial Range: -10000
4шт.
10
1308541C1
AUGER
ASSY, RH rotation, Start Serial: 10001
4шт.
20885R1
WASHER
1.156 x 2.000 x .054
1шт.
496-21106
WASHER,1 1/16" x 2" x .209", HDN
1.062 x 2.000 x .108
1шт.
11
1321373C1
PLATE
FILLER, rotor to auger drive support, replaces 193556C1 by also ordering two covers, 1319548C1 and attaching hardware
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
12
193554C1
SUPPORT
pan
2шт.
13
191655C1
SUPPORT
auger drive gears, Serial Range: -10000
1шт.
13
1309225C1
SUPPORT
auger drive gears, Start Serial: 10001
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
14
188359C1
ANGLE
auger support stiffener
1шт.
15
571424R1
FLANGE
auger drive bearing
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
1шт.
16
195293C91
BALL BEARING,0.89" ID x 2.04" OD x 1"
BEARING, auger drive
4шт.
17
GEAR, auger drive bezel, 14T matched set, refer to this group under shaker shaft and auger drive
1шт.
18
1319163C91
COVER
auger trough clean out, includes ref. no. 21
1шт.
19
1302112C1
STRIP
auger bed grain spreader LH
1шт.
20
1302113C1
BAR
grain spreader strip
1шт.
27902R91
CLAMP, no. 28 type F hose
2шт.
21
1309426C1
SEALING STRIP,13mm W x 990mm L x 6mm Thk
auger trough clean out, 39 in., 990.6 mm
1шт.
22
1319548C1
BAR
COVER, grain loss sensor
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
1300638C1
KIT
PACKAGE, auger adapter, to adapt swedge tube augers, consists of
1шт.
195293C91
BALL BEARING,0.89" ID x 2.04" OD x 1"
BEARING, auger shaft
1шт.
571424R1
FLANGE
auger shaft bearing
2шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock, gear, auger shaft (NSS)
3шт.
1309227C1
PLATE ASSY.
SUPPORT ASSY, auger bearing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock, instructions, installing (NSS)
3шт.
1300666C91
KIT
PACKAGE, auger bed grain spreader strips, consists of
1шт.
1302112C1
STRIP
LH auger grain spreader
1шт.
1302113C1
BAR
grain spreader strip
1шт.
279027R91
CLAMP,#28, 1.31/2.25 Type F Worm
no. 28 type F hose, instructions, installing (NSS)
2шт.
Выбрано товаров: 61
