Запчасти Case IH 1470 (25-15) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, GRAIN, SERIAL NO. 1180 AND ABOVE Elevators

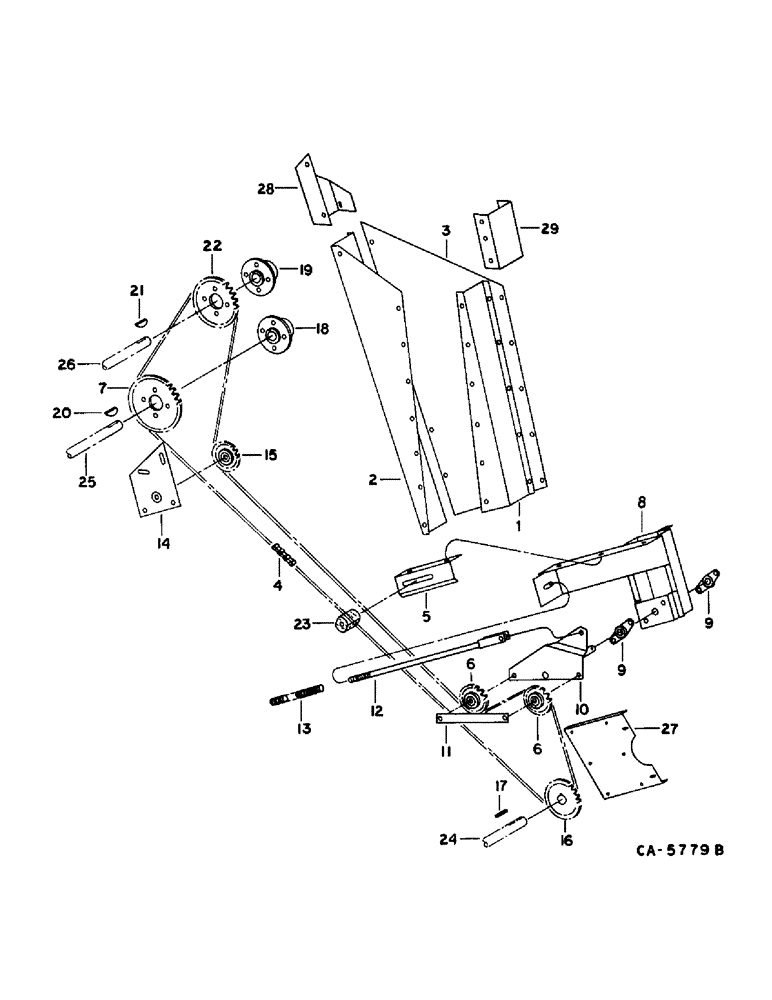

Схема запчастей Case IH 1470 - (25-15) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, GRAIN, SERIAL NO. 1180 AND ABOVE Elevators

Артикул

Название

Примечание

Количество

1

188027C1

SHIELD

inner elevator upper

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188026C1

SHIELD

inner elevator lower

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188028C1

SHIELD

outer elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

CHAIN ASSY, grain elevator drive, used 259 links from 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

5

1302487C1

SUPPORT

elevator tightner block

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

631905R91

SPROCKET

elevator chain idler, 17T

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

7

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33T, Serial Range: -5500

1шт.

7

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 27T, Start Serial: 5501

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

182765C1

SUPPORT

ASSY, idler pivot

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .015

1шт.

9

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSY, idler pivot

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

182758C1

ARM

ASSY, double idler pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108 (or as required)

6шт.

11

182771C1

BAR

double idler tie

1шт.

12

182768C1

ROD ASSY.

ROD ASSY, idler spring tension

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1.000 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

13

523677R1

SPRING

double idler tensioning

1шт.

14

182777C1

SUPPORT ASSY.

SUPPORT ASSY, stationary idler

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

15

631905R91

SPROCKET

stationary idler, 17T

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 znd type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

16

192139C2

SPROCKET

ASSY, grain elevator drive, 25T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd C/PT set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

18

1302217C1

HUB

grain spout drive sprocket, Serial Range: -20000

1шт.

18

1302216C1

HUB

grain spout drive sprocket, Start Serial: 20001

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd C/PT set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

, Serial Range: -20000

1шт.

20

124554

O-RING

5/16 x 1 SAE B Woodruff, Start Serial: 20001

1шт.

21

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 SAE B Woodruff

1шт.

22

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27T

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

23

582017R1

SPACER

BLOCK, grain elevator drive chain tightner

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

606546R1

JAM NUT

5/8 hex. jam

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

24

SHAFT, elevator drive, refer to this group under tailings elevator drive and jackshaft

1шт.

25

AUGER ASSY, grain delivery, refer to this group under grain elevator

1шт.

26

SHAFT, grain elevator head, refer to this group under grain elevator

1шт.

27

(Not used this application)

1шт.

28

183265C1

EXTENSION

CHANNEL, shield front

1шт.

29

183266C1

EXTENSION

SUPPORT, shield rear

1шт.

Выбрано товаров: 77
