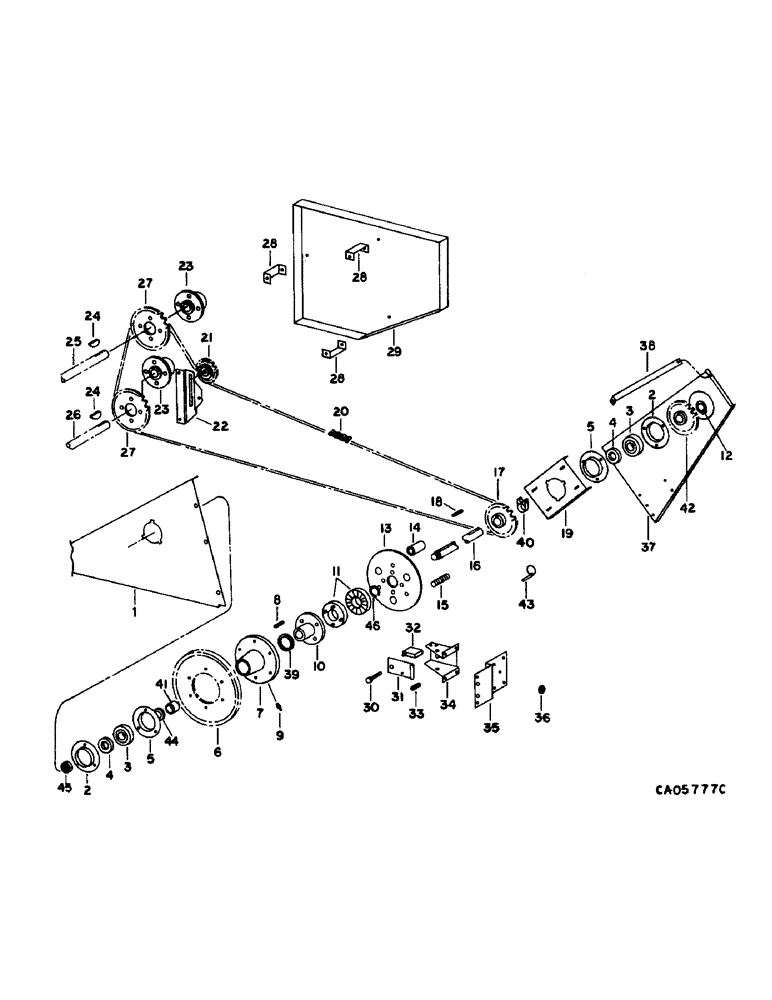

Запчасти Case IH 1470 (25-11) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR DRIVE AND JACKSHAFT Elevators

1

183205C1

SUPPORT

elevator jackshaft inner

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

473092R1

FLANGED BEARING

jackshaft bearing

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

3

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, elevator jackshaft

2шт.

4

455104R11

COLLAR

W/SET SCREW, jackshaft bearing

2шт.

5

939462R91

FLANGE

W/LUB FITTING, jackshaft

2шт.

6

PULLEY ASSY, jackshaft driven, refer to group 20 under belt drive, RH side

1шт.

7

HUB, elevator jackshaft drive, order package, 180954C91, Serial Range: -1179

1шт.

7

183210C91

HUB

elevator jackshaft drive slip clutch, includes ref. no. 39, Start Serial: 1180

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad prevailing torque lock

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8 x 6 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

586879R1

KEY

5/16 x 2 sq parallel

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

2шт.

10

HUB ASSY, drive slip clutch, order package, 180954c91, Serial Range: -1179

1шт.

10

183212C1

HUB ASSY.

HUB ASSY, drive slip clutch, for use with shaft, 194796C2

1шт.

10

1319232C1

HUB

ASSY, drive slip clutch, for use with shaft, 1319246C1

1шт.

11

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

12

609053R1

SNAP RING,#125, Ext

Ring, Snap, , elevator drive jackshaft #125, Ext

1шт.

13

194835C2

RETAINER

elevator drive slip clutch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

14

194836C1

BUSHING

elevator jackshaft

3шт.

15

PO177

SPRING

elevator drive slip clutch

3шт.

16

194796C2

SHAFT

elevator drive, 27.5 in. long, not threaded

1шт.

22182R1

WASHER

1.28 x 2 x .033 znd

1шт.

21226R1

WASHER

1.28 x 2.000 x .105

1шт.

16

1319246C1

SHAFT

elevator drive, 28.27 in. long, threaded on one end

1шт.

23668R1

CLEVIS PIN,3/16" x 1 3/4"

PIN, CLEVIS, 3/16" x 1 3/4"

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

21226R1

WASHER

1.28 x 2.000 x .105

1шт.

17

192139C2

SPROCKET

ASSY, tailings elevator drive, 25T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd C/PT set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

18

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

19

192138C2

BRACKET

CHANNEL, jackshaft outer

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

CHAIN ASSY, tailings elevator drive, use 153 links from 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

1310D

LINK

#50 singe pitch connecting

1шт.

21

631905R91

SPROCKET

tailings elevator dr idler, 17T

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

22

191788C1

SUPPORT

tailings elevator drive chain idler, Serial Range: -1179

1шт.

22

1302069C2

SUPPORT

tailings elevator drive chain idler, Start Serial: 1180

1шт.

23

1302217C1

HUB

tailings elevator drive and driven sprockets

2шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd C/PT set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

24

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

25

SHAFT, tailings elevaotor head, refer to this group under tailings elevator

1шт.

26

AUGER ASSY, tailings delivery, refer to this group under tailings elevator

1шт.

27

188188C1

SPROCKET ASSY.

SPROCKET, tailings elevator drive & driven, 27T

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

28

191775C1

CHANNEL

head shield

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

29

195099C1

SHIELD

delivery sprocket

1шт.

30

19765R1

SCREW

BOLT ASSY, clutch control arm

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

31

167324C1

HINGE

STRIP, elevator slip clutch switch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23099R1

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 std hd

1шт.

19765R1

SCREW

BOLT, 3/8 x 1-3/4 pln weld

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

32

574649R91

SWITCH

ASSY, elevator alarm

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

159358

PIN

no. 6 x 1 znp P/HDCR mach

1шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

131014

WASHER

.156 x .375 x .036

1шт.

33

M296

SPRING

alarm switch slip return

1шт.

34

167323C1

SUPPORT

elevator slip clutch switch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2.500 hd type 1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 gs

1шт.

35

185138C2

SUPPORT

elevator alarm switch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

36

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 OD

1шт.

37

(Not used this application)

1шт.

38

(Not used this application)

1шт.

39

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

slip clutch hub

2шт.

40

225265R1

CLAMP

inner drive sprocket

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

41

(Not used this application)

1шт.

42

SPROCKET, grain elevator drive, refer to this group under grain elevator drive

1шт.

43

373025R91

PIN ASSY.

PIN ASSY, outer drive sprocket

1шт.

44

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, 1.28 x 1.88 x .18, used with shaft 1319246C1

1шт.

45

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 znd hex slotted, used with shaft 1319246C1

1шт.

46

1319235C1

RING

elevator drive shaft, used with shaft 1319246C1

1шт.

46

609053R1

SNAP RING,#125, Ext

Ring, Snap, , elevator drive shaft, used with shaft 194796C2 #125, Ext

1шт.

180954C91

PACKAGE

pulley and hubs elevator driven, consists of ref. no. 6, 7, 10 and 39, Serial Range: -1179

1шт.
