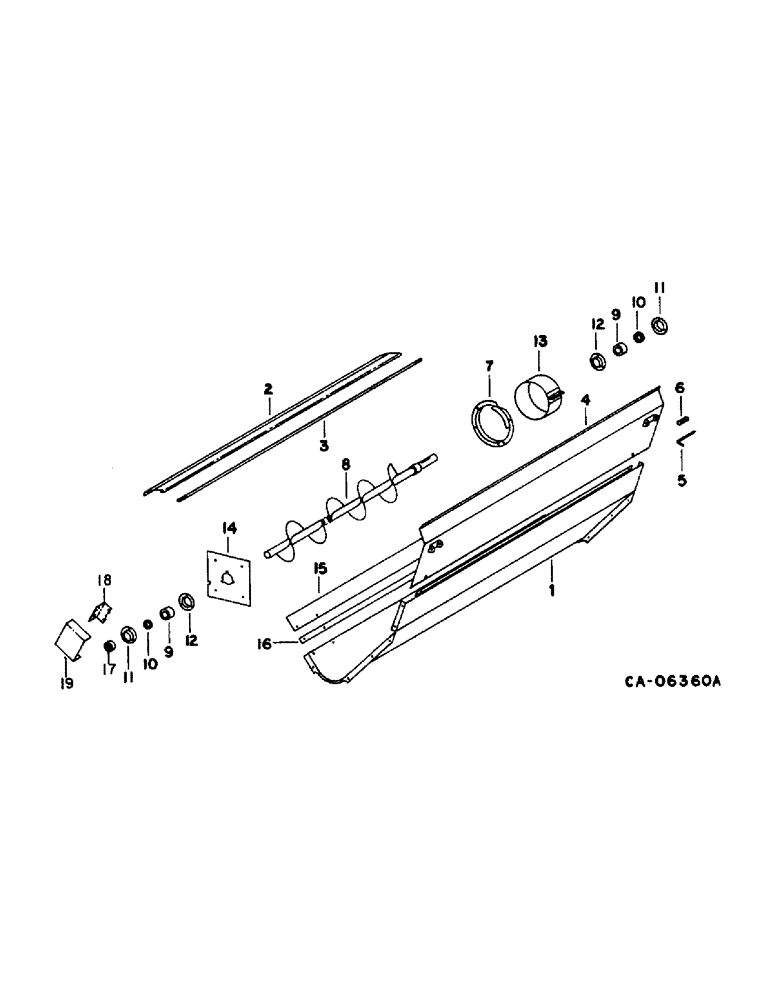

Запчасти Case IH 1470 (25-09) - GRAIN AND TAILINGS ELEVATORS, TAILINGS AUGER TROUGH Elevators

1

186907C2

TROUGH

ASSY, tailings auger

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

2

185195C1

DOOR

tailings auger trough

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

3

185198C1

ROD

auger trough door

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

4

186909C1

DOOR

GATE ASSY, tailings

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

186736C1

ROD

PIN, tailings tailgate

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

6

540815R1

SPRING

tailgate pin

2шт.

7

160324C2

FLANGE

tailings auger

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

8

191734C1

AUGER

ASSY, tailings

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

9

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

tailings auger

2шт.

10

455102R21

COLLAR

W/SET SCREW, brg locking

2шт.

11

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE W/LUB FITTING, auger brg., replaces 937518R91

2шт.

12

937517R1

FLANGE

auger bearing grooved

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

195078C1

SCREEN

ASSY, tailings auger extension, perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

13

192693C1

CLAMP

ASSY, tailings auger extension, non-perforated

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

1шт.

14

192357C2

BAR

left bearing support

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

(Not used in this application)

1шт.

16

(Not used in this application)

1шт.

17

178801C1

COLLAR

tailings (Replaces 1301135C1)

1шт.

18

187615C2

BRACKET

sensor support

1шт.

19

187616C1

SUPPORT

sensor cover

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.
