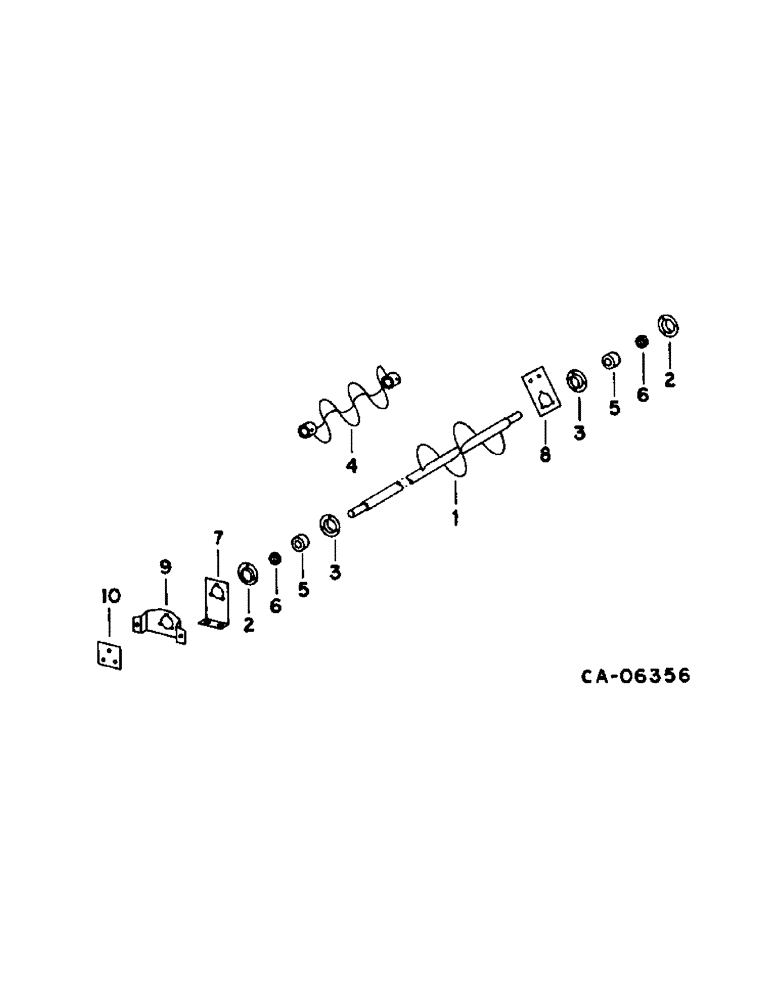

Запчасти Case IH 1470 (25-06) - GRAIN AND TAILINGS ELEVATORS, GRAIN DELIVERY AUGER Elevators

1

1319710C1

AUGER

ASSY, delivery, replaces 191913C1

1шт.

Delivery auger, 1319710C1 must be ordered for use with this package.

1шт.

2

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE W/LUB FITTING, auger bearing, 2 required w/auger, 191913C1 one required w/auger, 1319710C1 at left end of auger

1шт.

2

167878C11

FLANGE

W/LUB FITTING, auger bearing, for use w/auger 1319710C1 at right end of auger

1шт.

3

937517R1

FLANGE

auger bearing grooved, 2 required w/auger, 191913C1, one required w/auger, 1319710C1 at left end of auger

1шт.

3

202909C1

BEARING HOUSING

FLANGE, auger bearing grooved, for use w/auger, 1319710C1 at right end of auger

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

162103C91

AUGER

ASSY, distributer

2шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

1шт.

5

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

delivery auger, 2 required w/auger, 191913C1, one required w/auger, 1319710C1 at left end of auger

1шт.

5

939475R92

BEARING ASSY

delivery auger, for use w/auger, 1319710C1 at right end of auger

1шт.

6

455102R21

COLLAR

bearing locking, 2 required w/auger, 191913C1, one required w/auger, 1319710C1 at left end of auger

1шт.

6

557115R11

COLLAR

COLLAR, bearing locking, for use w/auger, 1319710C1 at right end of auger

1шт.

7

(Not used this application)

1шт.

8

183466C1

BAR

PLATE, distributor auger RH bearing, for ues w/auger, 191913C1

1шт.

8

1319839C1

PLATE

distributor auger RH bearing, for use w/auger, 1319710C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

(Not used this application)

1шт.

10

(Not used this application)

1шт.

1319967C91

PACKAGE

delivery auger retro, fit, consists of, Serial Range: -20000

1шт.

Delivery auger, 1319710C1 must be ordered for use with this package

1шт.

1319711C1

PANEL

SIDE ASSY, head RH

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

20шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

20шт.

1319839C1

PLATE

distributer auger RH bearing

1шт.

939475R92

BEARING ASSY

delivery auger RH

1шт.

557115R11

COLLAR

COLLAR, bearing locking RH

1шт.

167878C11

FLANGE

W/LUB FITTING, auger brg RH

1шт.

202909C1

BEARING HOUSING

FLANGE, auger bearing grooved RH

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

3шт.

1302216C1

HUB

grain spout drive sprocket

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 SAE B Woodruff, instructions, installing (NSS)

1шт.
