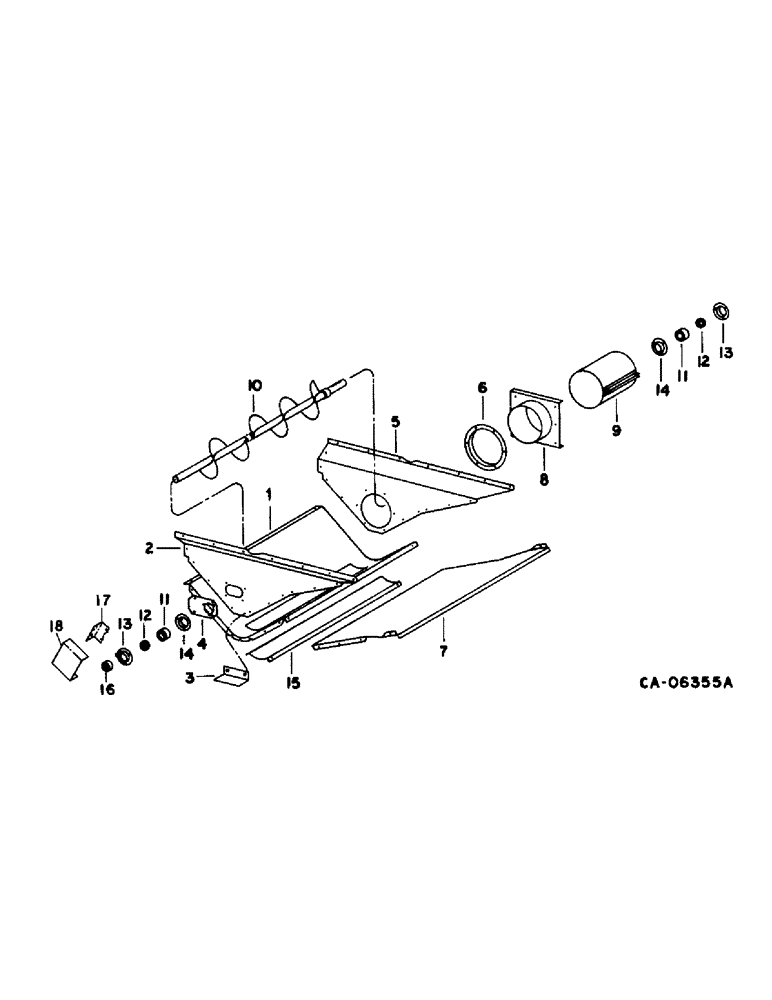

Запчасти Case IH 1470 (25-04) - GRAIN AND TAILINGS ELEVATORS, GRAIN AUGER TROUGH Elevators

1

191713C2

TROUGH

ASSY, grain bottom, no perforated

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

1

186630C1

TRAY ASSY.

TROUGH ASSY, grain bottom, perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 x 1/2 slt-truss-hd

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

188018C2

SUPPORT ASSY.

SUPPORT ASSY, grain trough LH

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

182715C1

ANGLE

trough support

1шт.

4

178602C1

PLATE

BAR, grain collecting auger LH access

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

191715C2

SUPPORT

grain trough RH

1шт.

622227R1

BOLT

5/16 x 3/4 znp slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

6

194688C1

RING

grain trough RH support

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

7

191716C1

EXTENSION

grain trough

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

8

192661C2

TUBE

ASSY, grain trough

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

195073C1

EXTENSION

ASSY, grain auger trough, perforated

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

192664C1

CLAMP

ASSY, grain auger trough, non-perforated

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

1шт.

10

1319169C1

AUGER

ASSY, grain, 1.250 in., replaces 191737C1, furnish package 1319978C91 and auger 1319169C1, Serial Range: -12000

1шт.

22050R1

WASHER

1.281 x 1.750 x .054

1шт.

11

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

grain auger

2шт.

12

455102R21

COLLAR

W/SET SCREW, grain auger

2шт.

13

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE, w/45 deg lub fitting

2шт.

14

937517R1

FLANGE

auger bearing grooved

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

186627C1

COVER

grain trough, perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW, 5/16 x 1 h/whd tap

1шт.

16

1304135C1

SUPPORT

COLLAR, clean grain

1шт.

17

183869C3

SUPPORT

BRACKET, sensor (Replaces 178794C1)

1шт.

18

COVER ASSY, clean grain sensor (Replaces 187642C2)

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

1319978C91

PACKAGE

ASSY, clean grain auger, replaces 1300725C91, to convert to 1.250 in. diameter shaft, consists of, see note

1шт.

When ordering package 1319978C91 for use on machines with S/N 12000 and below also order auger 1319169C1

1шт.

1319176C1

SPROCKET ASSY.

SPROCKET, elevator boot, 7 tooth

1шт.

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq. parallel

1шт.

1319181C1

SPACER

32.5 x 38.1 x 54 mm, instructions, installing (NSS)

1шт.
