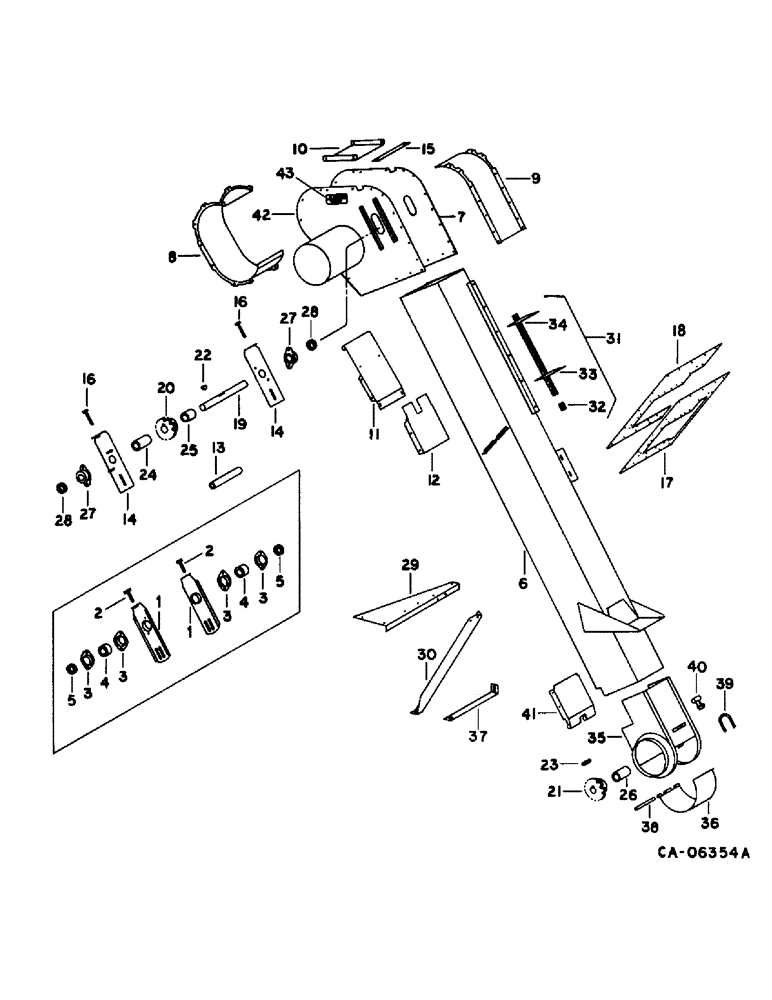

Запчасти Case IH 1470 (25-01) - GRAIN AND TAILINGS ELEVATORS, GRAIN ELEVATOR Elevators

1

170584C11

BRACKET

SUPPORT ASSY, elevator head shaft, Serial Range: -1179

2шт.

2

191200C1

BOLT,7/6" - 14 x 4.50", Cl 5, Full Thd

elevator head, Serial Range: -1179

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

3

F9417

FLANGE

elevator head shaft brg., replaces 612031R1, Serial Range: -1179

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, elevator head shaft, Serial Range: -1179

2шт.

5

455102R21

COLLAR

W/SET SCREW, elevator, Serial Range: -1179

2шт.

6

191608C2

ELEVATOR TUBE,115.07" Length

TUBE ASSY, grain elevator

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

183463C1

SIDE ASSY.

SIDE ASSY, elevator head RH, Serial Range: -1179

1шт.

7

1302190C1

SIDE ASSY.

SIDE ASSY, elevator head RH, Serial Range: 1180-20000

1шт.

7

1319711C1

PANEL

SIDE ASSY, elevator head RH, Start Serial: 20001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

195422C1

SUPPORT ASSY.

SUPPORT ASSY, grain spout cover, Serial Range: -10000

1шт.

8

1309140C1

SUPPORT ASSY.

SUPPORT ASSY, grain spout cover, Start Serial: 10001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

195415C1

TOP

SUPPORT, grain elevator head, Serial Range: -10000

1шт.

9

1309136C1

CHANNEL

grain elevator head, Start Serial: 10001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

195424C1

DOOR

CHANNEL, grain elevator head, Serial Range: -10000

1шт.

10

1309143C2

SUPPORT

ASSY, elevator head, Start Serial: 10001

1шт.

11

195423C1

COVER

END, grain elevator spout

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

12

193822C1

END

top false bottom, Serial Range: -1179

1шт.

12

183367C1

END

top false bottom, Start Serial: 1180

1шт.

13

191685C2

SPACER

headshaft guide lock

1шт.

14

183363C1

SUPPORT ASSY.

SUPPORT ASSY, elevator head shaft, Start Serial: 1180

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

188020C1

BAR

conveyor chain tightener, Serial Range: -1179

1шт.

15

183382C1

BAR

conveyor chain tightener, Start Serial: 1180

1шт.

16

667486R1

BOLT

BOLT, elevator head, Start Serial: 1180

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

17

194885C1

SEAL

grain elevator

1шт.

18

194886C2

PLATE

grain elevator seal

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

19

191694C1

SHAFT

grain elevator head, Serial Range: -1179

1шт.

19

186723C1

SHAFT

grain elevator head, Start Serial: 1180

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

20

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 6T, Serial Range: -1179

1шт.

20

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 7T, Start Serial: 1180

1шт.

21

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 6T, Serial Range: -1179

1шт.

21

168683C1

SPROCKET

grain elevator boot, 7T, Serial Range: 1180-10170

1шт.

21

1319176C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 7T, Start Serial: 10701

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

, Serial Range: -1179

1шт.

22

124554

O-RING

5/16 x 1 SAE B Woodruff, Start Serial: 1180

1шт.

23

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq-parallel, Serial Range: -10170

1шт.

23

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq parallel, Start Serial: 10170

1шт.

24

201567C1

SPACER,1" Pipe x 3 3/4"

1.049 x 1.315 x 3.75, Serial Range: -1179

1шт.

24

27953R1

SPACER,1 3/8" Tube x 3 3/4"

1.157 x 1.375 x 3.75, Start Serial: 1180

1шт.

25

516316R1

SPACER

1.49 x 1.315 x 2.5, Serial Range: -1179

1шт.

25

27954R1

SPACER,1 3/8" Tube x 2 9/16"

1.157 x 1.375 x 2.562, Start Serial: 1180

1шт.

26

605822R1

SPACER

1.157 x 1.375 x 2.562, Serial Range: -10170

1шт.

26

1319181C1

SPACER

32.50 x 38.10 x 54.0, Start Serial: 10171

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

27

1302001C91

ROLLER BEARING,28.57mm ID

grain elevator head shaft, Start Serial: 1180

2шт.

28

557115R11

COLLAR

COLLAR W/SET SCREW, elevator, Start Serial: 1180

2шт.

29

191697C1

SUPPORT

elevator upper

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

30

194753C2

SUPPORT

elevator lower

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

192699C92

CHAIN,149 Links x 41.4mm = 6168.6mm

CONVEYOR ASSY, grain elevator, Serial Range: -1179

1шт.

31

1302201C91

ELEVATOR CHAIN,CA550, 150 Links x 41.4mm = 6210mm

CONVEYOR ASSY, grain elevator, Start Serial: 1180

1шт.

1302203C1

RUBBER FLIGHT

FLIGHT, conveyor

37шт.

185053C1

RIVET

conveyor flight

74шт.

32

631254R91

DRAG LINK

LINK, connecting

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain, "S"

1шт.

32

23880R1

OFFSET LINK

LINK, offset

1шт.

32

631253R91

LINK

plain

1шт.

33

185330C91

LINK

CONVEYOR W/FLIGHT, grain elevator, rubber, Serial Range: -1179

1шт.

33

1302204C91

CONVEYOR

W/FLIGHT, grain elevator, rubber, Start Serial: 1180

1шт.

185053C1

RIVET

elevator flight

1шт.

33

160710C91

STEEL FLIGHT

CONVEYOR W/FLIGHT, grain elevator, steel, consists of the following serviceable items, Serial Range: -1179

1шт.

160706C1

STEEL FLIGHT

FLIGHT, steel

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 pln but/hd sol

1шт.

33

1302191C92

PALLET

CONVEYOR W/FLIGHT, grain elevator, steel, parts accessory, consists of the following serviceable items, Start Serial: 1180

1шт.

1302192C1

STEEL FLIGHT

FLIGHT, steel

1шт.

1302203C1

RUBBER FLIGHT

FLIGHT, conveyor

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

1шт.

34

LINK, attaching, for use with 185330C91 and 1302204C91 (NSS)

1шт.

34

150722C91

LINK

attaching, for use w/160710C91 and 1302191C92

1шт.

35

191687C2

BOOT

ASSY, grain elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

36

174194C1

DOOR

grain elevator boot, perforated

1шт.

36

1309146C1

DOOR

grain elevator boot, non-perforated, replaces 184559C92

1шт.

37

186734CF2

SUPPORT, grain elevator lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

38

160748C1

PIN

grain elevator boot door

1шт.

39

664360R1

BOLT,U, 1/4" - 20 x 69.65"

grain elevator boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 P/T lock type 5

1шт.

40

155909C1

LATCH

grain elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

41

191691C1

END

HINGE, false bottom grain

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

42

185113C93

SIDE ASSY.

SIDE ASSY, elevator head LH, Serial Range: -1179

1шт.

42

1319650C91

PANEL

SIDE ASSY, elevator head LH, replaces 1302222C91, includes ref. no. 43, Start Serial: 1180

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

43

1319494C1

PRODUCT GRAPHIC

caution, replaces 188197C3

1шт.
