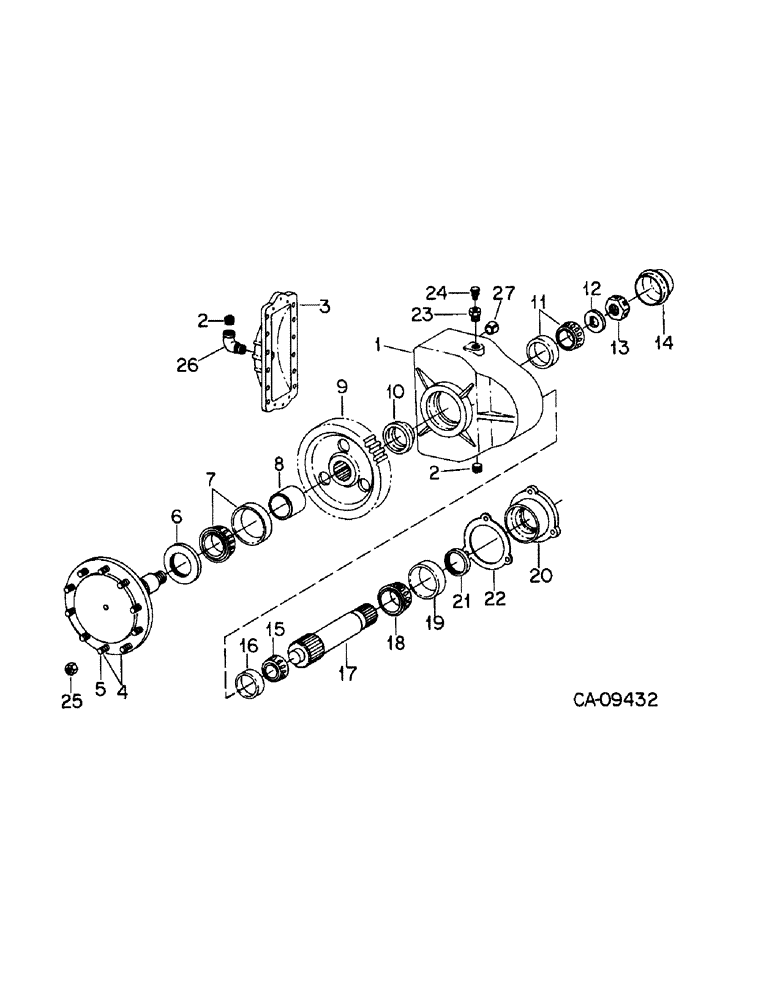

Запчасти Case IH 1470 (07-10) - DRIVE TRAIN, FINAL DRIVE, SERIAL NO. 20001 AND ABOVE Drive Train

1315500C92

DRIVE

ASSY, final, includes ref. nos. 1 through 22

2шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 type 8

10шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 type 8

16шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

3/4 x 2-1/2 type 8

4шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

20шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 .134 hdn

4шт.

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

split tapered dowel

4шт.

1

86851C2

HOUSING

final drive

2шт.

2

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 pln sq/skt auto pipe

3шт.

3

86839C2

COVER

final drive housing

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

26273R1

WASHER

.531 x 1.062 x .134 phc hdn

1шт.

4

1315484C91

SHAFT

ASSY, final drive

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

20шт.

6

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

outer bearing case

2шт.

7

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

ASSY, shaft roller outer

2шт.

8

130809C1

SPACER

gear outer

2шт.

9

130885C1

GEAR

drive, 66T

2шт.

10

130808C1

SPACER

final drive

2шт.

11

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

ASSY, shaft roller inner

2шт.

12

403896R1

WASHER

WASHER, final drive

2шт.

13

147030R1

SLOTTED NUT

shaft 2-12N3 thread

2шт.

17233R1

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

2шт.

14

403895R1

COVER

main shaft

2шт.

25

429-1112

NUT,3/4"-16, G5

3/4NF type 8

20шт.

15

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

BEARING ASSY, pinion shaft outer cone

2шт.

16

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

BEARING, pinion shaft outer cup

2шт.

17

184104C1

SHAFT

pinion, 13T

2шт.

18

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

pinion shaft inner cone

2шт.

19

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

BEARING, pinion shaft inner cup

2шт.

20

94649C1

CAGE

pinion inner bearing

2шт.

26499R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3/8 x 1-3/4 phc P/T type 8

1шт.

21

196452C1

OIL SEAL

bearing cage oil

2шт.

22

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

pinion inner bearing, .003 in./0.08mm

1шт.

22

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

pinion inner bearing, .005 in./0.13mm

1шт.

22

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

pinion inner bearing, .007 in./0.18mm

1шт.

22

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

pinion inner bearing, .030 in./0.76mm

1шт.

23

21276R1

ADAPTER,3/4" NPT Male x 1/8" NPT Fem

3/4 to 1/8 pln out/h/hd pipe

2шт.

24

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY, oil, in final drive housing cover

2шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

20шт.

26

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 pln 90D pipe street

2шт.

27

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

split tapered dowel

4шт.
