(07-09) - DRIVE TRAIN, MAIN DRIVE SHAFT

Запчасти Case IH 1470 (07-09) - DRIVE TRAIN, MAIN DRIVE SHAFT Drive Train

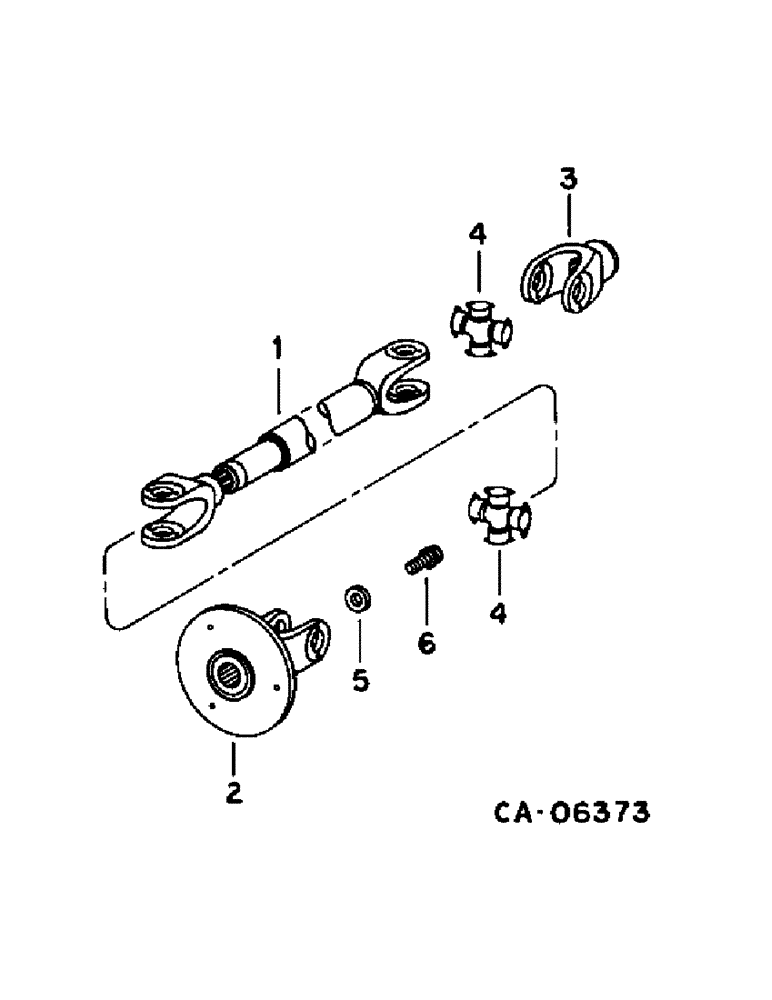

Схема запчастей Case IH 1470 - (07-09) - DRIVE TRAIN, MAIN DRIVE SHAFT Drive Train
2
5
1
3
4
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

184142C91

DRIVE SHAFT

JOINT ASSY, 17 in. long, includes ref. nos. 2, 3 and 4

2шт.

2

184115C1

YOKE

flanged

2шт.

3

184126C1

YOKE

splined

2шт.

4

184143C1

U-JOINT SPIDER

CROSS ASSY

4шт.

5

184141C1

WASHER

retainer

2шт.

6

184154C1

BOLT

retainer

2шт.
