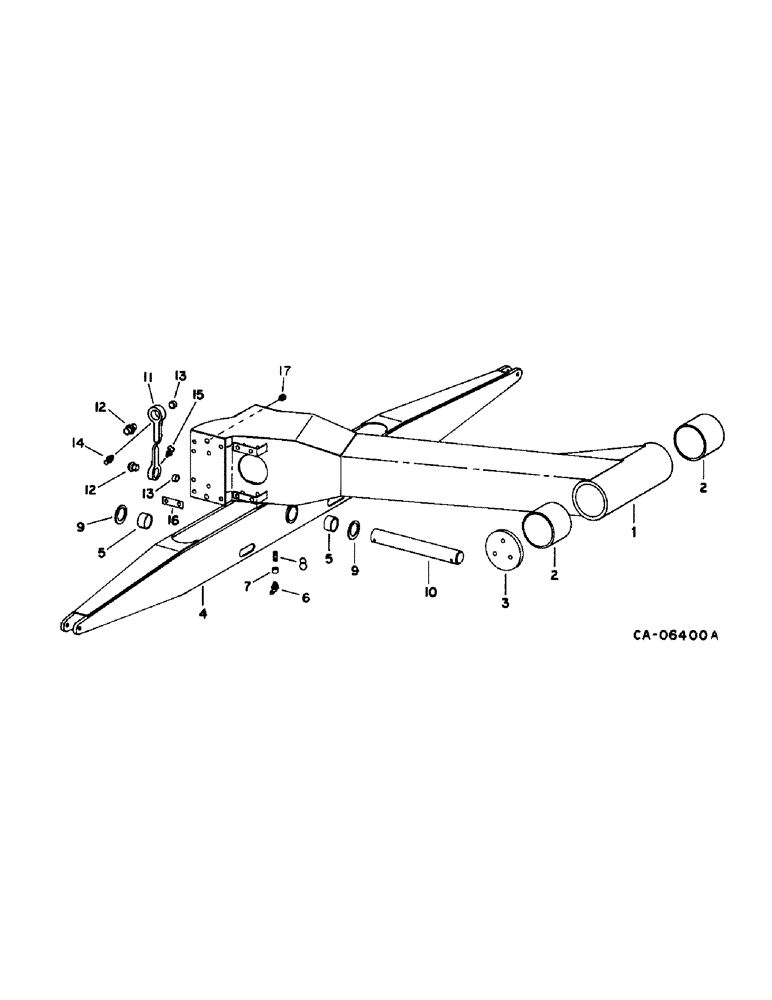

Запчасти Case IH 1470 (07-07) - DRIVE TRAIN, MAIN AXLE Drive Train

1

1304137C91

SUPPORT

ARM ASSY W/BUSHING, LH radial

1шт.

1

1304138C91

SUPPORT

ARM ASSY W/BUSHING, RH radial

1шт.

2

1304130C1

BUSHING

nylon

4шт.

3

1304128C1

RETAINER

CAP, radial arm

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

4

1304133C91

BEAM ASSY.

BEAM ASSY, walking, with stone retarder, includes ref. no. 5

1шт.

4

1314095C91

SUPPORT

BEAM ASSY, walking, with rock trap, includes ref. no. 5

1шт.

5

174122H1

BUSHING

walking beam

2шт.

6

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 NPT, 27 PFT 45 deg lub

1шт.

7

105408

COUPLING,1/8" NPT

COUPLER, 1/8 pipe

1шт.

8

114794

NIPPLE,Nipple, 1/8" NPT x 2"

1/8 x 2 pln long pipe

1шт.

9

1304156C1

THRUST WASHER

thrust

2шт.

10

1301140C1

PIN, pivot

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad P/T lock type 5

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

1шт.

11

1304166C92

ROD ASSY.

LINK ASSY W/BUSHING, connecting, includes ref. nos. 12 and 13

2шт.

28310R1

BOLT,Hex, 7/8" - 14 x 6", Gr 8

7/8 x 6 type 8

1шт.

28311R1

BOLT,Hex, 7/8" - 14 x 7", Gr 8

7/8 x 7 type 8

1шт.

26083R1

NUT,7/8"-14, G8

7/8 NF phc type 8

1шт.

131168

LOCK WASHER,7/8"

7/8"

1шт.

12

1330031C1

BUSHING

connecting link, replaces 1304402C1 by also ordering retainer, 1330030C1

4шт.

13

1330030C1

RETAINER

bushing, replaces 1304184C1 by also ordering bushing, 1330031C1

4шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

15

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90 deg lub

2шт.

16

1304288C1

SHIM

.12

1шт.

16

1304289C1

SHIM

.06

1шт.

17

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

split tapered dowel

4шт.
