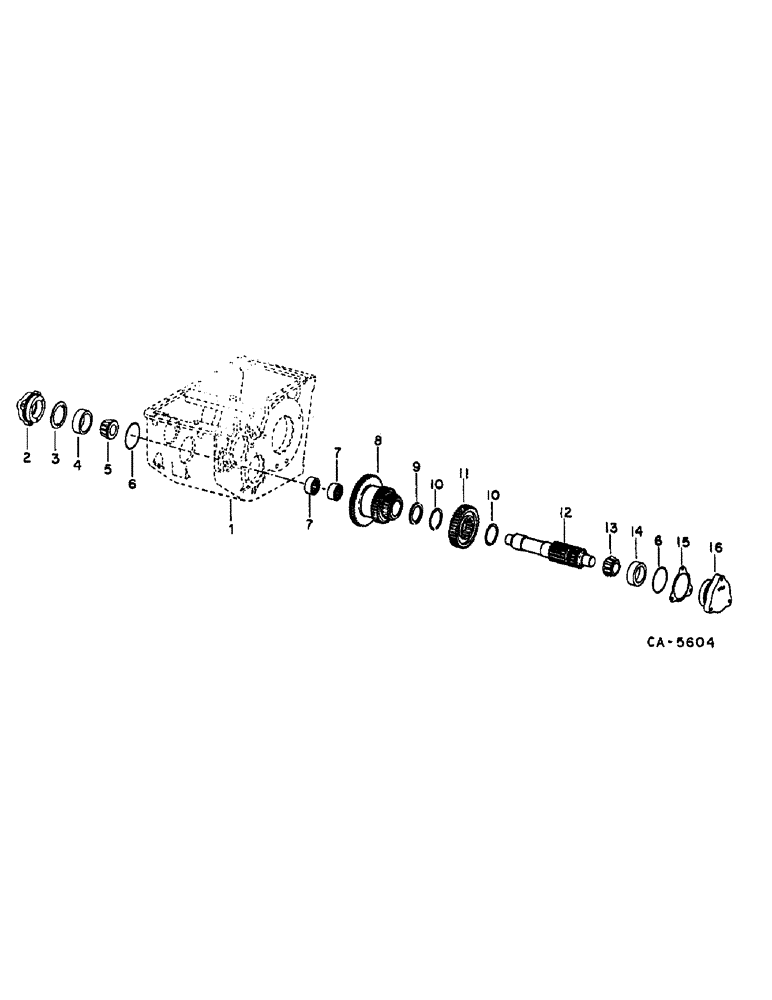

Запчасти Case IH 1470 (07-03) - DRIVE TRAIN, TRANSMISSION DIFFERENTIAL PINION SHAFT AND GEARS Drive Train

1

CASE, transmission, refer to this group under transmission, differential shaft and gears

1шт.

2

403362R2

CAGE

bearing cap LH

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

1шт.

3

530704R1

THRUST WASHER

WASHER, thrust

1шт.

4

131312C1

BEARING CUP

CUP, differential pinion shaft bearing, LH

1шт.

5

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

CONE, differential pinion shaft brg, LH

1шт.

6

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8

2шт.

7

675708R91

NEEDLE BEARING

BEARING, spool gear

2шт.

8

530699R1

PINION

GEAR, spool, 59, 39, 27T

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

spool gear

1шт.

10

196693H1

RING

chance driven gear snap

2шт.

11

401881R1

GEAR

chance driven, 37T, Serial Range: -5250

1шт.

11

130752C1

GEAR

change driven, 39T, Start Serial: 5221

1шт.

12

401878R1

SHAFT

AND GEAR, differential pinion, 14T

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CONE ASSY, differential pinion shaft brg, RH

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP, differential pinion shaft bearing, RH

1шт.

15

401883R1

SHIM

bearing cap retainer, .003

1шт.

15

401884R1

SHIM

bearing cap retainer, .005

1шт.

15

401885R1

SHIM

bearing cap retainer, .007

1шт.

15

184195C1

SHIM

bearing cap retainer, .030

1шт.

16

403363R1

BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm

CAGE, bearing cap RH

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

1шт.
