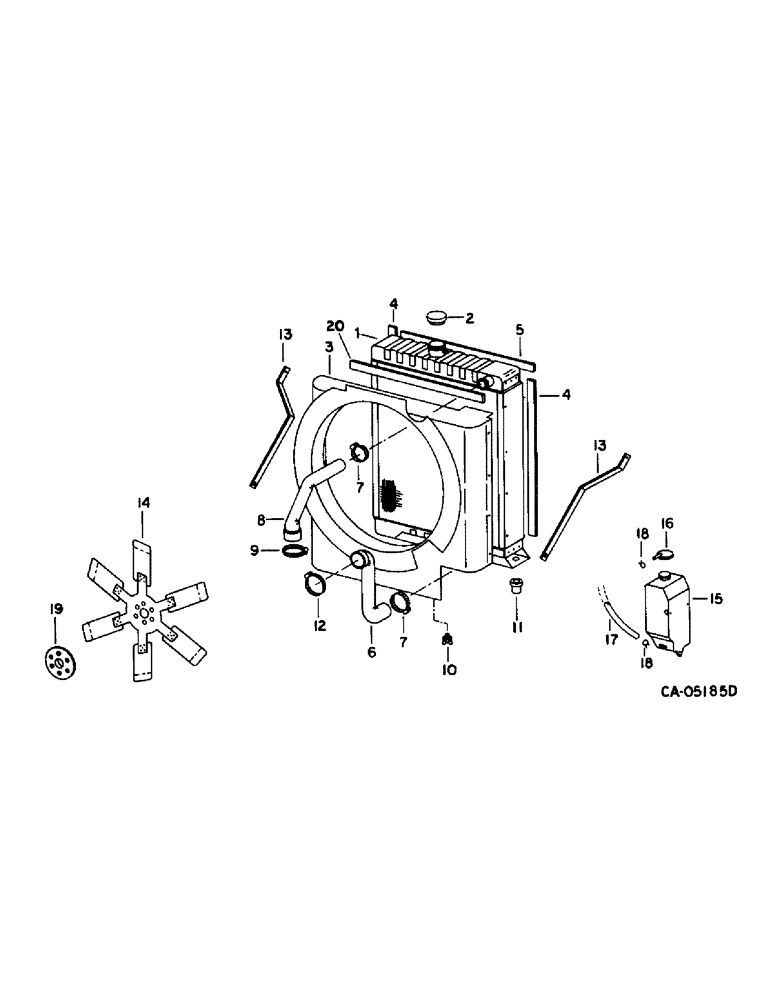

Запчасти Case IH 1470 (06-05) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

146529C2

RADIATOR

includes ref. no. 2

1шт.

2

121951C1

CAP

radiator pressure

1шт.

3

146534C1

SUPPORT

SHROUD, fan

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 H/HD tap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

4

STRIP, radiator side, use 34.5 in. from bulk stock marked 198581C2

2шт.

5

STRIP, radiator top and bottom, use 34.5 in. from bulk stock marked 198581C2

2шт.

6

121759C1

RADIATOR HOSE,2.00" ID, 2.62" ID x 5.10", SAE 20R4 CLASS D-2

Outlet 2.00" ID, 2.62" ID x 5.10", SAE 20R4 CLASS D-2

1шт.

7

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 type F

2шт.

8

548216R1

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

Inlet 50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

1шт.

9

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, no. 36 type F

1шт.

10

86982771

VALVE

COCK, radiator drain

1шт.

11

400159R1

BUMPER

MOUNT, radiator

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2 crg type 1

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 cad P/T lock type 5

1шт.

23043R1

WASHER

.469 x 2.000 x .105

1шт.

12

122323R91

CLAMP,#52, 2.81/3.75 Type F Worm

no. 52 type F

1шт.

13

121984C1

BRACE

radiator

2шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

175997

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

SCREW, 5/16 x 1-1/4 H/HD tap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

124527C2

FAN

blade

1шт.

22435R1

BOLT,Hex, 3/8"-16 x 3", G8

3/8 x 3 pln type 8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

437703C1

TANK

reservoir

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

.281 x .625. x .051

1шт.

16

437702C1

CAP

reservoir

1шт.

17

121983C1

RADIATOR HOSE,0.31" ID x 43.00", ASTM D 2000

- Reservoir to Radiator and Overflow 0.31" ID x 43.00", ASTM D 2000

2шт.

18

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, hose

3шт.

19

146486C1

SPACER

fan

1шт.

20

GASKET, radiator baffle, use 35.5 in. from 4 foot length, 73222C2

2шт.
