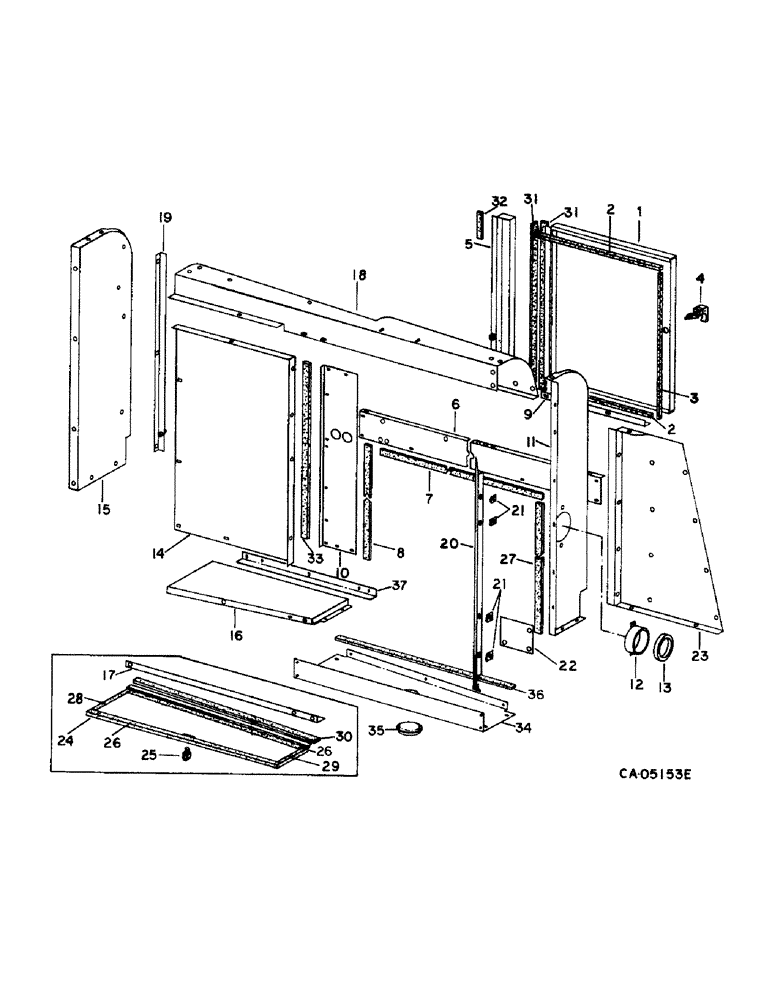

Запчасти Case IH 1470 (06-03) - COOLING, ROTARY AIR SCREEN CHUTE Cooling

1

1302529C1

DOOR

ASSY, radiator access

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

2

153495C1

SEALING STRIP

access door top and bottom, 16.7 in., 424.2 mm

2шт.

3

153495C1

SEALING STRIP

access door side, 26.2 in., 723.9 mm

1шт.

4

1302494C2

LATCH

radiator access door

1шт.

5

194295C1

SUPPORT

adaptor, replaces 188031C1

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

5/8 x .688 tube

1шт.

6

194296C2

SUPPORT

chute bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

7

177910C1

SEAL

adapter top

1шт.

8

188064C1

STRIP

adapter side

1шт.

9

194297C1

ANGLE

access door seal bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

10

194298C2

SUPPORT ASSY.

SUPPORT, radiator left

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

619856R1

WASHER

.406 x 1.00 x .056

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

194300C3

SUPPORT

chute filler

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

188398C1

AIR INTAKE TUBE

TUBE ASSY, air cleaner inlet, not used w/aspirated pre-cleaner pre-screener

1шт.

632226R

SCREW, 5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

177869C1

SEAL,4.5" ID x 5.5" OD x 0.5"

SEAL, air cleaner tube, not used w/aspirated pre-cleaner pre-screener

1шт.

14

194301C1

SUPPORT

rotary air screen

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

15

194302C4

SUPPORT

chute front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

16

1304368C2

SHEET

SUPPORT, chute bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

17

188035C1

ANGLE

seal lower, Serial Range: -12000

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

194308C2

CHUTE (DOWNWARD)

CHUTE ASSY, rotary air screen top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

19

188033C1

ANGLE

SUPPORT, adapter seal front, replaces 188032C1

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

5/8 x .688 tube

1шт.

20

186275C1

BAFFLE

air screen intake, not used w/aspirated pre-cleaner pre-screener

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

150100C1

SPRING NUT

air intake baffle, not used w/aspirated pre-cleaner pre-screener

1шт.

22

188021C1

BAR

oil cooler filler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

23

193156C1

SHEET

SUPPORT, RH rear upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

24

1880531C1

DOOR ASSY, radiator cleanout, Serial Range: -12000

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

25

188029C1

LATCH

cleanout door, Serial Range: -12000

1шт.

26

STRIP, clean out door RH, use 34 in. piece from bulk stock marked 73220C2, Serial Range: -12000

1шт.

27

188063C1

STRIP

adapter rear

1шт.

28

153495C1

SEALING STRIP

cleanout door front, 8.5 in., 215.9 mm, Serial Range: -12000

1шт.

29

153495C1

SEALING STRIP

cleanout door rear, 6.1 in, 154.9 mm, Serial Range: -12000

1шт.

30

1301236C1

SEALING STRIP

STRIP, clean out door hinge, 30.9 in., 787 mm, Serial Range: -12000

1шт.

31

1319429C1

STRIPPER

STRIP, radiator access door hinge, 25.6 in., 650 mm

2шт.

32

1319716C1

STRIPPER

STRIP, adapter top rear, 6.5 in., 165 mm

1шт.

33

1319430C1

STRIP

adapter bottom, 30 in., 762 mm

1шт.

34

1319684C1

SUPPORT

bottom rear inner, Start Serial: 12001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

35

1302758C1

PLUG

clean out hole

1шт.

36

STRIP, bottom rear inner support, use 34 in. piece from bulk stock marked 73200C2, Start Serial: 12001

1шт.

37

1319428C1

ANGLE

seal support, Start Serial: 12001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.
