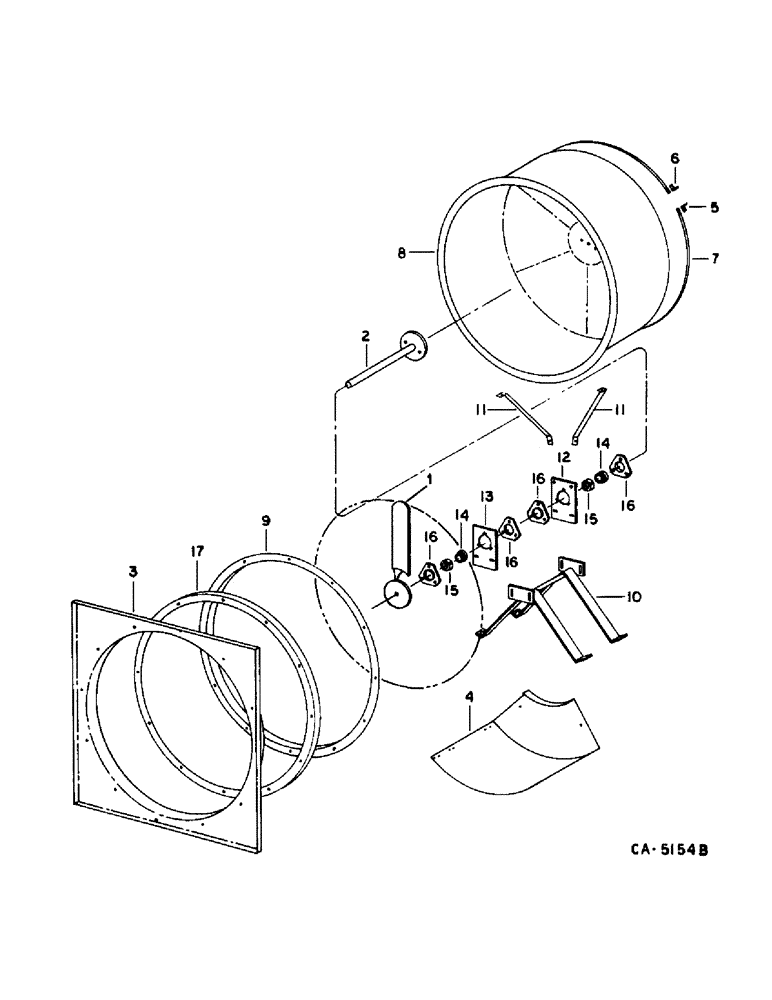

Запчасти Case IH 1470 (06-01) - COOLING, ROTARY AIR SCREEN Cooling

1

1315541C1

FAN

ASSY, rotary air screen, 7 blade, replaces two, four blade fans, 188047C1

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc P/T type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

2

194228C2

SHAFT

ASSY, rotary air screen fan

1шт.

3

192336C2

GUARD

ADAPTER ASSY, rotary air screen

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 flange lock

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

4

194224C1

BAFFLE ASSY.

BAFFLE ASSY, rotary air screen

1шт.

55077C1

RIVET

4.8 x 11.5 mm break mandrel

1шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

5

164617C1

ANGLE

brush long

1шт.

19910R1

LOCK NUT

no. 10 cad P/T lock type 5

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 znp p/hds mach

1шт.

6

164616C1

ANGLE

brush short

1шт.

7

164615C92

BRUSH, COMMUTATOR

BRUSH ASSY, rotary air screen, includes ref. no. 5 and 6

1шт.

8

194222C1

SCREEN

SIEVE ASSY, rotary air

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 pln al t/hd s/t

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

164627C1

RETAINER

brush seal

1шт.

55077C1

RIVET

4.8 x 11.5 mm break mandrel

1шт.

10

194226C1

SUPPORT ASSY.

SUPPORT ASSY, rotary air screen brg

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

11

194221C2

STAY

SUPPORT, bearing

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

12

164605C1

LARGE PLATE

BAR, bearing flange

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

.344 x .750 x. 105

1шт.

13

164604C1

BAR

bearing flange

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

14

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSY, rotary air screen

2шт.

15

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

W/SET SCREW, bearing

2шт.

16

H333534

FLANGED BEARING

FLANGE, bearing, replaces 186636C1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

17

164606C1

WASHER

RETAINER, brush seal

1шт.
