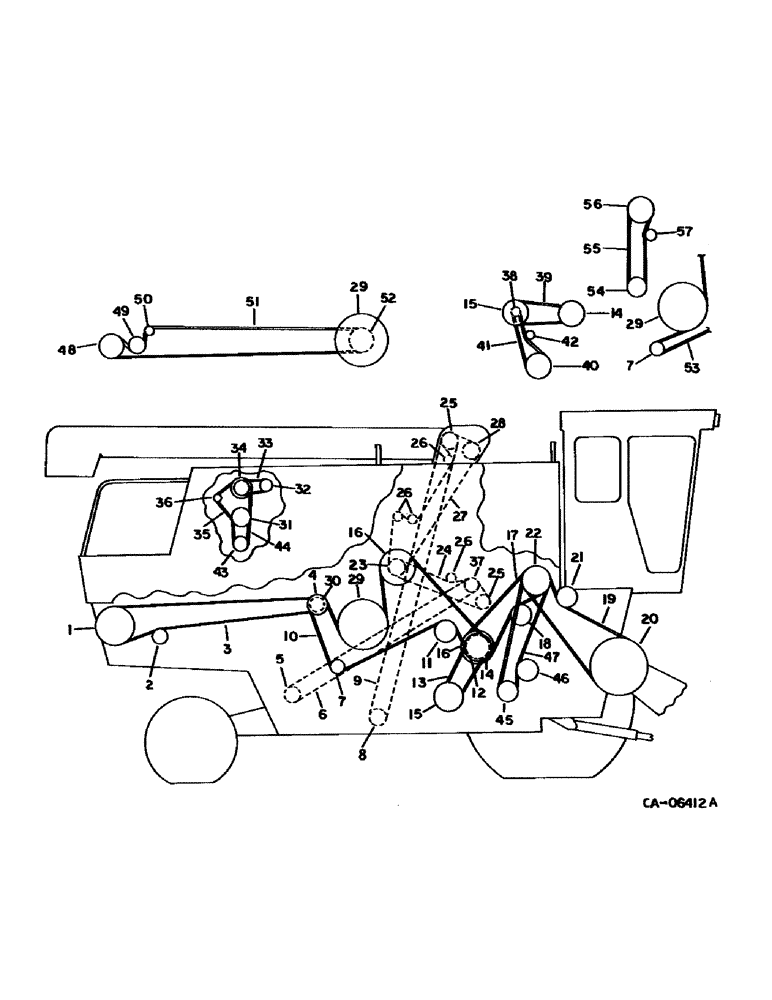

Запчасти Case IH 1470 (02-03) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE Accessories & Attachments / Miscellaneous

1

557917R92

PULLEY

ASSY, straw spreader driven, 15-7/8 in. OD, 403.1 mm OD

1шт.

2

564745R91

PULLEY

spreader tightner drive, 5.5 in. OD, 139.7 mm OD

1шт.

3

153359C1

V-BELT,0.63" W x 186.87" L

Straw Spreader Drive 0.63" W x 186.87" L

1шт.

4

195161C1

PULLEY

ASSY, beater drive, 8-3/8 in. OD, 212.9 mm OD

1шт.

5

165292C1

SPROCKET ASSY.

SPROCKET, tailing elevator boot, 6T, Serial Range: -1179

1шт.

5

168683C1

SPROCKET

tailing elevator boot, 7T, Start Serial: 1180

1шт.

6

192736C93

ELEVATOR CHAIN,C550, 111 Links x 41.4mm = 4595.4mm

CONVEYOR, tailing elevator, S/N 1179 and below, Serial Range: -1179

1шт.

6

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR, tailing elevator, S/N 1180 and above, Start Serial: 1180

1шт.

7

673214R91

PULLEY

elevator drive fixed idler, 7/15 in. OD, 181.6 mm OD

1шт.

8

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator front, 6T, Serial Range: -1179

1шт.

8

168683C1

SPROCKET

grain elevator boot, 7T, Start Serial: 1180

1шт.

8

1319176C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, Start Serial: 10171

1шт.

9

192699C92

CHAIN,149 Links x 41.4mm = 6168.6mm

CONVEYOR, grain elevator, Serial Range: -1179

1шт.

9

1302201C91

ELEVATOR CHAIN,CA550, 150 Links x 41.4mm = 6210mm

CONVEYOR, grain elevator, Start Serial: 1180

1шт.

10

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC 0.879" W x 255.99" L

1шт.

11

673214R91

PULLEY

elevator idler, 7.15 in. OD, 181.6 mm OD

1шт.

12

PULLEY ASSY, fan driver, refer to group 24 under fan drive

1шт.

12

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

14

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, elevator jackshaft drive, 9.75 in. OD, 247.7 mm OD

1шт.

15

PULLEY ASSY, fan driven, refer to group 24 under fan drive and slow speed fan drive

1шт.

16

194777C1

PULLEY

ASSY, cleaning unit drive. 13.0 in. OD, 330.2 mm OD, Serial Range: -1179

1шт.

16

183325C1

PULLEY

ASSY, jackshaft driven and cleaning unit drive, 13.0 in. OD, 330.2 mm OD, Start Serial: 1180

1шт.

17

191305C1

V-BELT,0.879" W x 112.19" L

Fan jackshaft drive, OC 0.879" W x 112.19" L

1шт.

18

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drive idler, 8 in. OD, 203.2 mm OC

1шт.

19

1304060C2

V-BELT,149.99" L

Drive Feeder 149.99" L

1шт.

20

1304075C2

PULLEY

feeder driven, 22.56 in. OD, 573.0 mm OD

1шт.

21

1304056C1

PULLEY

feeder drive idler, 8.0 in. OD, 203.2 mm OD

1шт.

22

191603C2

PULLEY

feeder drive, 12.0 in. OD, 304.8 mm OD

1шт.

23

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25T

2шт.

24

CHAIN ASSY, tailings elevator drive, use 153 links from a 10 ft. roll marked 1791D and one connecting link 1301D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

25

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 6T, Serial Range: -1179

1шт.

25

1302200C1

SPROCKET ASSY.

SPROCKET, grain and tailings elevator head, 7T, Start Serial: 1180

1шт.

25

188188C1

SPROCKET ASSY.

SPROCKET, grain and tailings elevator driven, 27T

1шт.

26

631905R91

SPROCKET

grain and tailings elevator drive idler, 17T

4шт.

27

CHAIN ASSY, grain elevator drive, use 259 links from a 10ft. roll marked 1791D and one connecting link 1310D, Serial Range: -1179

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

27

CHAIN ASSY, grain elevator drive, use 259 links from a 10ft. roll marked 1791D and one connecting link 1310D, Start Serial: 1180

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

28

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator driven, 33T

1шт.

29

193682C1

PULLEY

ASSY, shaker shaft driven, 25.0 in. OD, 635.0 mm OD

1шт.

30

195163C2

PULLEY

ASSY, straw spreader drive, 5.0 in. OD, 127.0 mm OD

1шт.

31

DAMPER ASSY, vibration, refer to ENG-5 engine catalog

1шт.

32

117820C1

PULLEY

ASSY, compressor, 7.08 in. OD, 179.8 mm OD, serial no. and below

1шт.

32

143406C1

PULLEY ASSY.

PULLEY ASSY, compressor, 7.0 in. OD, 177.8 mm OD, serial no, and above

1шт.

33

874097C1

V-BELT,39.50" L

Compressor 39.50" L

1шт.

34

537071R1

PULLEY

water pump and air conditioner, 7.4 in. OD, 188.0 mm OD

1шт.

35

537072R91

SET OF BELTS

Matched, Engine fan, 65.75 in. OC, 1644.7 mm OC

1шт.

36

107686C1

PULLEY

alternator, generator, 4.35 in. OD, 110.5 mm OD

1шт.

36

537070R1

PULLEY

alternator, generator, 4.35 in. OD, 110.5 mm OD

1шт.

37

165292C1

SPROCKET ASSY.

SPROCKET, tailings elevator head, 6T, Serial Range: -1179

1шт.

37

168683C1

SPROCKET

tailings elevator head, 7T, Start Serial: 1180

1шт.

37

188188C1

SPROCKET ASSY.

SPROCKET, tailings elevator driven, 27T

1шт.

38

181360C1

PULLEY ASSY.

PULLEY ASSY, slow speed fan jkshft, 5 in. OD, 1217.0 mm OD

1шт.

39

181359C1

BELT,1.25" W x 66.54" L

V-BELT , Fan jackshaft, OC 1.25" W x 66.54" L

1шт.

40

564569R11

PULLEY ASSY.

PULLEY ASSY, fan hub, 12.68 in. OD, 322.1 mm OD

1шт.

41

610521R1

V-BELT

Slow speed jackshaft, 76 in. OC, 1930.4 mm OC

1шт.

42

564745R91

PULLEY

idler, 5.5 in. OD, 139.7 mm OD

1шт.

43

1304182C1

PULLEY

ASSY, leveling pump driven, 12 in. OD, 304.8 mm OD

1шт.

44

1304181C1

V-BELT,62.99" L

Leveling Pump Drive 62.99" L

1шт.

45

1304185C1

PULLEY

header and reel drive pump, 7 in. OD, 177.8 mm OD

1шт.

46

174757C1

PULLEY

header and reel drive idler, 8 in. OD, 203.2 mm OD

1шт.

47

1304061C2

V-BELT,0.88" W x 119.19" L

Header and Reel Drive Pump 0.88" W x 119.19" L

1шт.

48

181196C2

PULLEY

straw spreader driven, 10 in. OD, 254.0 mm OD

1шт.

49

181126C91

PULLEY

straw spreader drive tightner, 6.75 in. OD, 171.5 mm OD

1шт.

50

181127C1

PULLEY

straw spreader idler, 4-3/8 in. OD, 111.3 mm OD, S/N and above

1шт.

50

1315269C1

PULLEY

straw spreader idler, S/N and above

1шт.

51

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive, OC 0.630" W x 222.59" L

1шт.

52

566516R91

PULLEY ASSY.

PULLEY ASSY, straw spreader drive, 9.75 in. OD, 247.7 mm OD

1шт.

53

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Cleaning unit drive, OC 0.879" W x 200.99" L

1шт.

54

181080C1

PULLEY

straw chopper driven, 6 in. OD, 152.4 mm OD

1шт.

55

181012C1

BELT,0.630" W x 94.09" L, 2 Ribs

V-BELT , Straw chopper drive, OC 0.630" W x 94.09" L, 2 Ribs

1шт.

56

181081C1

PULLEY

straw chopper drive, 12 in. OD, 304.8 mm OD

1шт.

57

181133C91

PULLEY ASSY.

PULLEY ASSY, straw chopper drive idler, 16-1/2 in. OD, 419.1 mm OD

1шт.
