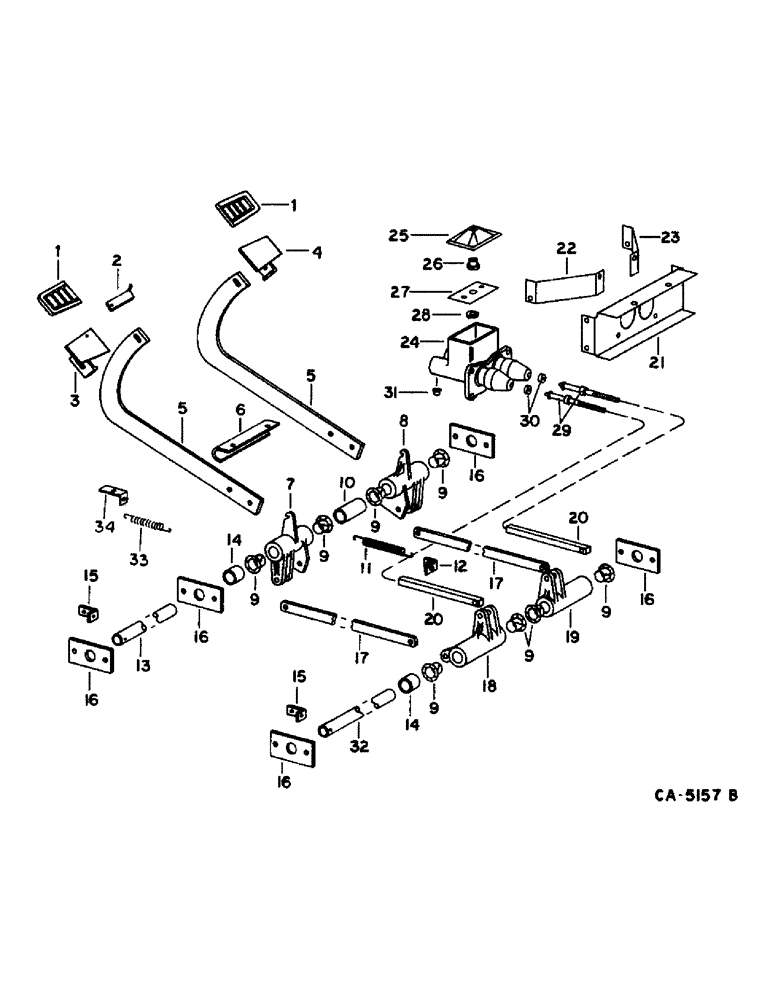

Запчасти Case IH 1470 (04-01) - BRAKE, MASTER BRAKE CONTROLS (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
863426R1
PAD
brake pedal
2шт.
2
614251R1
BAR
brake locking
1шт.
19938R1
PIN,1/8" x 7/8", Coiled
1шт.
3
163426C1
PEDAL
brake LH
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
4
163427C1
PEDAL
brake RH
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
5
184166C2
SUPPORT ASSY.
SUPPORT, brake, replaces 192970C1
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 type 5
1шт.
6
195509C1
SUPPORT
brake lever
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
7
192953C1
HUB
brake pedal LH
1шт.
8
192954C1
HUB
brake pedal RH
1шт.
9
277523R1
BUSHING
brake pedal pivot
8шт.
10
151478C1
SPACER,1 1/4" Tube x 1 5/8"
brake pivot shaft inner
1шт.
11
398763R2
SPRING
brake pedal return
2шт.
12
192969C1
ANGLE
brake pedal return spring, Serial Range: -10000
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
13
195567C1
ROD
brake and clutch pedal
1шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
1шт.
14
654385R1
SPACER,26.21mm ID x 31.75mm OD x 19.05mm L
brake pivot shaft LH
2шт.
15
187628C1
ANGLE
CLIP, brake pivot shaft retainer
2шт.
16
165901C1
BAR
brake pivot shaft support
5шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
17
1304201C1
BAR
ROD, brake pedal
2шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
22320R1
CLEVIS PIN,3/8" x 1.781"
PIN, 3/8 x 1.781 clevis
1шт.
18
192951C1
HUB
brake link LH
1шт.
19
192952C1
HUB
brake link RH
1шт.
20
1304200C1
BAR
brake cylinder
2шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
22320R1
CLEVIS PIN,3/8" x 1.781"
PIN, 3/8 x 1.781 clevis
1шт.
21
195515C2
SUPPORT ASSY.
SUPPORT, brake master cylinder
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
22
195510C1
SUPPORT
brake master cylinder LH
1шт.
23
195511C1
SUPPORT
brake master cylinder RH
1шт.
24
222834C91
MASTER CYLINDER,124.46mm Stroke
CYLINDER ASSY, master brake, replaces 184339C91, also furnish 1304270C1 push rods, includes ref. no. 25 thru 29 and 31
2шт.
SEE GSS 1503 SERV MANUAL
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
25
868351R1
CAP
master cylinder filler, Serial Range: -1179
1шт.
25
222843C1
CAP
master cylinder filler, Start Serial: 1180
1шт.
180050
BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5
1/4 x 2-3/4 type 5
1шт.
26
673857R1
SLEEVE
automatic adjuster, Serial Range: -1179
1шт.
26
222842C1
WASHER
SLEEVE, automatic adjuster, Start Serial: 1180
1шт.
27
868447R1
GASKET
filler cap, Serial Range: -1179
1шт.
27
222844C1
GASKET
filler cap, Start Serial: 1180
1шт.
28
673856R1
X
RING, external retainer, Serial Range: -1179
1шт.
28
222845C1
WASHER
internal, Start Serial: 1180
1шт.
29
965560R1
ROD
master cylinder push, Serial Range: -1179
2шт.
29
1304270C1
ROD
master cylinder push, Start Serial: 1180
2шт.
124925
JAM NUT,Jam, 3/8"-24, G5
1шт.
30
965561R1
RETAINER
push rod, Serial Range: -1179
2шт.
31
284588C1
INSERT
fitting body, Serial Range: -1179
2шт.
31
222846C1
INSERT
seat, Start Serial: 1180
2шт.
32
187580C1
SHAFT
ROD, brake rear pivot
1шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
1шт.
33
165
SPRING
brake pedal return
2шт.
34
187833C1
SUPPORT
ANGLE, return spring
2шт.
201594C1
PACKAGE
KIT, cylinder repair, Serial Range: -1179
1шт.
222835C91
KIT
cylinder repair, Start Serial: 1180
1шт.
