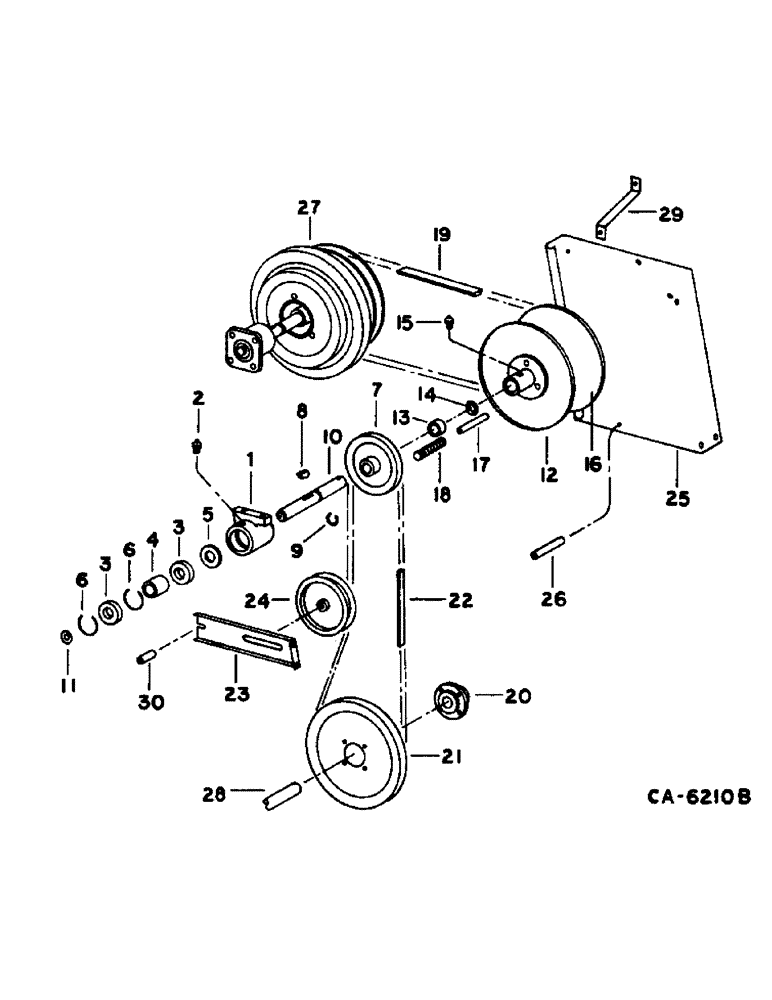

Запчасти Case IH 1470 (24-07) - CLEANING FAN AND DRIVE, SLOW SPEED FAN DRIVE (15) - CLEANING

1

185263C1

HUB

slow speed jackshaft

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

1шт.

3

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING, elevator and fan drive

2шт.

4

152926C1

SPACER

1-5/16 ID x 1-5/8 OD x 1.88

1шт.

5

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, fan jackshaft

1шт.

6

360936R1

RING

fan hub bearing snap

2шт.

7

181360C1

PULLEY ASSY.

PULLEY ASSY, slow speed fan jackshaft, 5 in. OD, 127.0 mm OD

1шт.

8

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

9

609053R1

SNAP RING,#125, Ext

Ring, Snap, , slow speed fan jackshaft #125, Ext

1шт.

10

181358C1

SHAFT HOUSING

SHAFT, slow speed fan jackshaft, Serial Range: -10000

1шт.

10

1309040C1

SHAFT

slow speed fan jackshaft, Start Serial: 10001

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flg w/scotch grip

1шт.

11

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, fan jackshaft bearing retainer

1шт.

12

185023C93

PULLEY

ASSY, fan driven adjustable, 11.24 in. OD, 285.5 mm OD, includes ref. nos. 13 and 14

1шт.

13

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

fan driven adjustable

2шт.

14

537545R92

SEAL

lub, used with pulley 185023C91 and 185023C92 only

1шт.

14

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 class 5, used with pulley 185023C93

1шт.

15

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

1шт.

16

185020C2

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, 285.5 mm OD, Serial Range: -10000

1шт.

277232R1

BOLT,Hex, 3/8" - 18 x 2 3/4", Gr 8

3/8 x 2-3/4 phc type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc P/T lock type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

1шт.

16

1309014C1

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, 285.5 mm OD, Start Serial: 10001

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 phc type 8

1шт.

9412230

LOCK NUT

1/2 phc P/T lock type 8

1шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.062 x .188 phc hdn

1шт.

17

185019C2

SLEEVE,8.18mm ID x 14.27mm OD x 69.85mm L

fan drive spring

3шт.

18

1302540C1

SPRING

fan drive outer pulley

3шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

5/16 x 3-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

19

181359C1

BELT,1.25" W x 66.54" L

V-BELT , Fan jackshaft, OC 1.25" W x 66.54" L

1шт.

20

185271C1

HUB

fan pulley, Serial Range: -1179

1шт.

20

182650C1

HUB

fan pulley, Start Serial: 1180

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

564569R11

PULLEY ASSY.

PULLEY ASSY, fan hub, 12.68 in. OD, 322.1 mm OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

610521R1

V-BELT

Slow speed fan jackshaft, 76 in. OC, 1930.4 mm OC

1шт.

23

185270C1

SUPPORT

idler

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

24

564745R91

PULLEY

idler, 5.5 in. OD, 139.7 mm OD

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

25

181372C1

SHIELD

SUPPORT, slow speed fan drive

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

PO22778

SPACER,1/4" Pipe x 2"

1/4 x 2 std pipe

2шт.

180113

SPRING

5/16 x 3 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

27

DRIVE ASSY, refer to this group under fan drive

1шт.

28

SHAFT, cleaning fan, refer to this group under cleaning fan and shields

1шт.

29

(Not used this application)

1шт.

30

612232R1

SPACER

.407 x .625 x 1.18

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.
