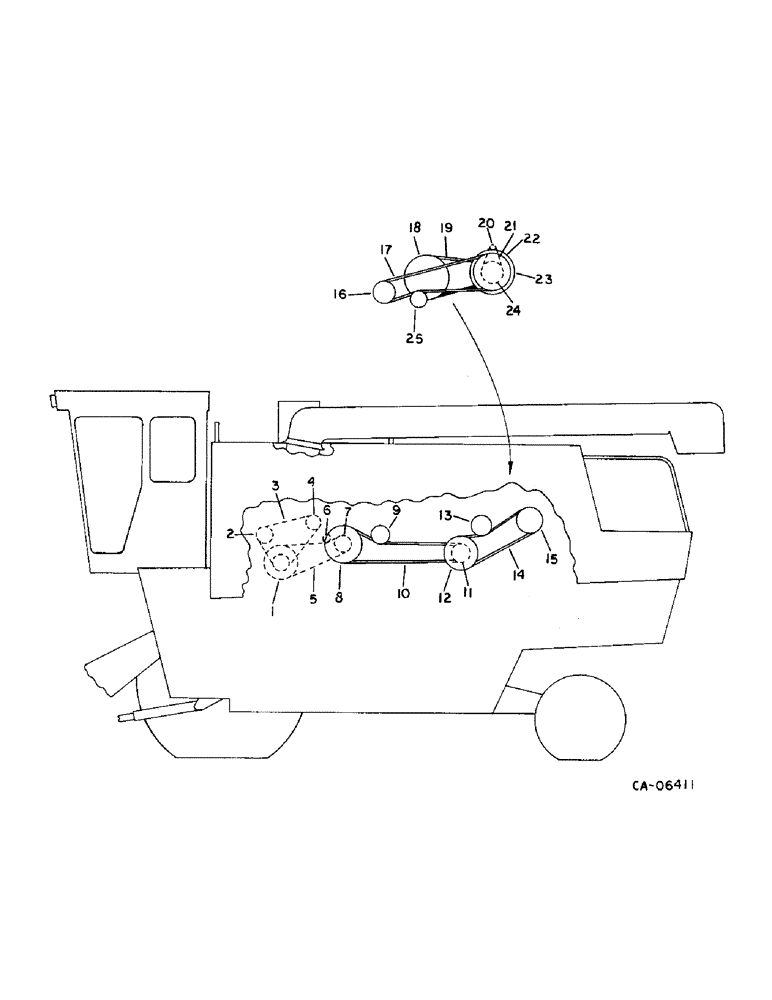

Запчасти Case IH 1470 (02-01) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous

1

192511C2

SPROCKET ASSY.

SPROCKET ASSY, unloader drive, 43T and 57T

1шт.

2

192922C1

SPROCKET

ASSY, front auger driven, 43T

1шт.

3

CHAIN ASSY, grain tank auger drive, use 157 links from a 10 ft. roll marked 1790D and one connecting link 1301D

1шт.

1301D

CHAIN LINK

LINK, #40 single pitch connecting

1шт.

4

192925C1

SPROCKET

ASSY, rear auger driven, 37T

1шт.

5

CHAIN ASSY, vertical auger drive, use 133 links from a 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

1301D

CHAIN LINK

LINK, #40 single pitch connecting

1шт.

6

565442R91

SPROCKET

vertical auger chain tightner, 17T

1шт.

7

192199C2

SPROCKET ASSY.

SPROCKET ASSY, rear auger drive, 33T

1шт.

8

192967C1

PULLEY ASSY.

PULLEY ASSY, unloader jackshaft driven, 18.6 in. OD, 472.4 mm OD

1шт.

9

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, unloader belt tightner, 8.75 in. OD, 222.3 mm OD

1шт.

10

191290C1

V-BELT,22.32 mm W x 3409.89 mm L

V-BELT , Drive, Unloader jackshaft drive, OC 22.32 mm W x 3409.89 mm L

1шт.

11

192945C91

PULLEY ASSY.

PULLEY ASSY, auxiliary pump drive

1шт.

12

192943C1

PULLEY ASSY.

PULLEY ASSY, auxiliary pump driven, 11.65 in. OD, 295.9 mm OD

1шт.

13

192865C1

PULLEY

ASSY, auxiliary pump drive, 8.0 in. OD, 203.2 mm OD

1шт.

14

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Auxiliary pump drive, OC 0.879" W x 96.11" L

1шт.

15

196481C1

PULLEY

auxiliary pump drive, 9.25 in. OD, 234.9 mm OD

1шт.

16

191461C1

PULLEY,110mm OD

separator drive, 11.0 in. OD, 279.4 mm OD

1шт.

17

191241C1

BELT

- Separator drive, 130 in. OC, 3302.0 mm OD

1шт.

18

193927C1

PULLEY

fixed variable, 17.75 in. OD, 450.9 mm OD, Serial Range: -10075

1шт.

18

185433C1

PULLEY

fixed variable, Start Serial: 10076

1шт.

18

193928C93

PULLEY ASSY.

PULLEY ASSY, adjustable variable, 17.75 in. OD, 450.9 mm OD, Serial Range: -10075

1шт.

18

185417C91

PULLEY ASSY.

PULLEY ASSY, adjustable variable, Start Serial: 10076

1шт.

19

193923C3

BELT

Rotor variable drive, 85 in. OC, 2159.0 mm OC

1шт.

20

194337C1

SPROCKET

control, 8T

1шт.

21

CHAIN ASSY, variable drive, use 31 links from a 10 ft. roll marked 569088R91 one connecting link 457113R91 and 2 offset links 457114R91

1шт.

457113R91

CHAIN LINK

LINK, #2040 double pitch connecting

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

2шт.

22

193620C92

PULLEY ASSY.

PULLEY ASSY, rotor drive variable, 17.5 in. OD, 444.5 mm OD

1шт.

22

193622C92

PULLEY ASSY.

PULLEY ASSY, rotor drive stationary, 17.5 in. OD, 444.5 mm OD

1шт.

23

PULLEY, separator jackshaft driven, refer to group 7 under separator drive, jackshaft bearing block and straw chopper geat case

1шт.

24

194464C2

SPROCKET

variable male, 25T

1шт.

25

174757C1

PULLEY

separator belt idler, 8.0 in. OD, 203.3 mm OD

1шт.
