Запчасти Case IH 1470 (21-18) - THRESHING ROTOR AND CONCAVES, VANE LAYOUT (14) - THRESHING

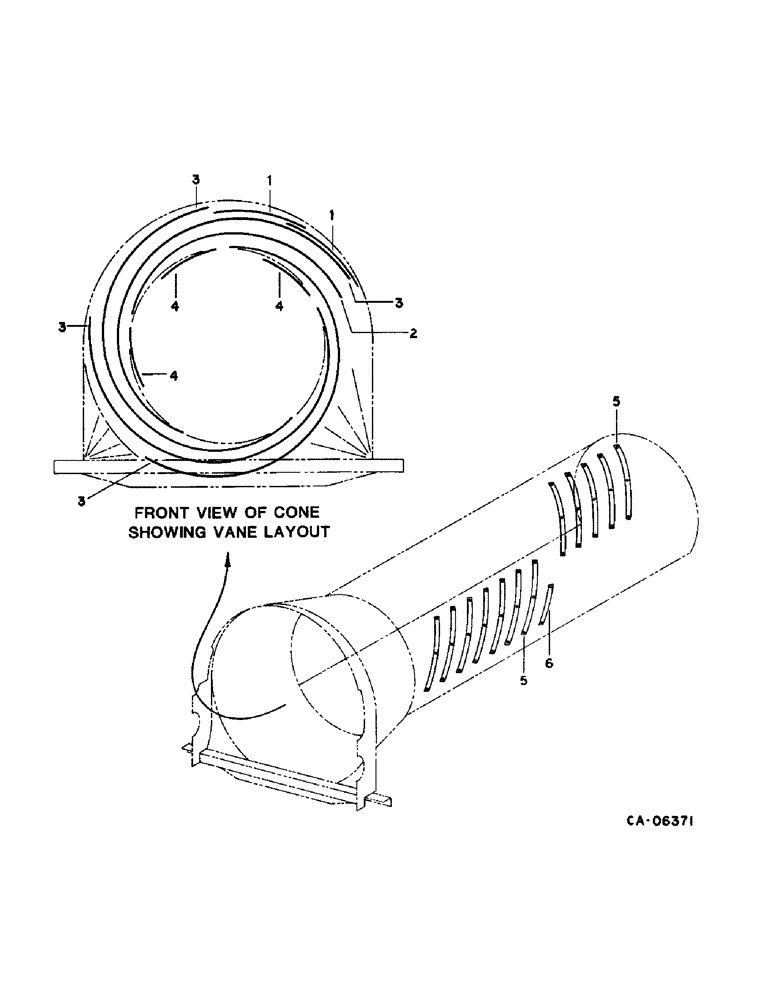

Схема запчастей Case IH 1470 - (21-18) - THRESHING ROTOR AND CONCAVES, VANE LAYOUT (14) - THRESHING
3
3
3
5
4
4
6
1
2
5
3
1
4

Артикул

Название

Примечание

Количество

1

186984C1

EXTENSION

VANE, cone extension

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

186985C3

SUPPORT

VANE, cone front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

195355C3

GUIDE

VANE, cone front

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

193179C2

VANE

VANE, extension transport

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

193175C2

GUIDE

VANE, transport

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

6

1302127C1

GUIDE

VANE, transport

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

Выбрано товаров: 18
