Запчасти Case IH 1470 (21-15) - THRESHING ROTOR AND CONCAVES, CONE (14) - THRESHING

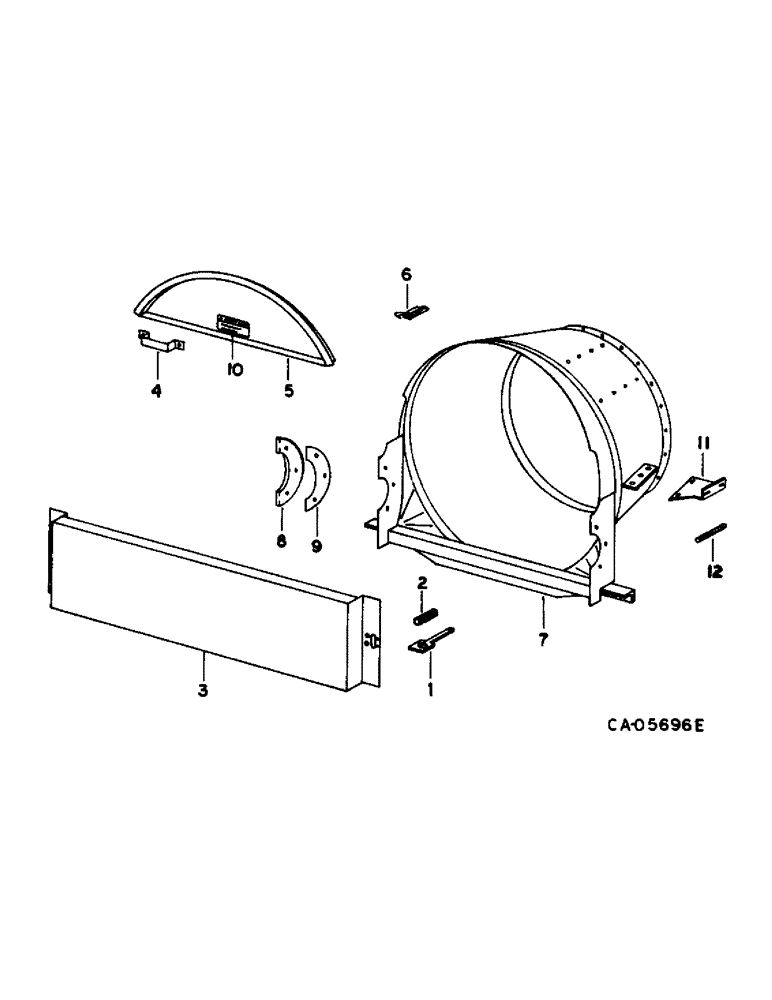

Схема запчастей Case IH 1470 - (21-15) - THRESHING ROTOR AND CONCAVES, CONE (14) - THRESHING
5
8
7
11
4
10
2
6
9
3
12
1

Артикул

Название

Примечание

Количество

1

454502R1

LATCH

separator front door

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

2

M296

SPRING

front door latch

2шт.

3

193436C2

DOOR

separator front

1шт.

4

160638C1

HANDLE

rotor front door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

1300208C91

DOOR

ASSY, rotor front, includes ref. no. 10

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

168481C1

LATCH ASSY.

LATCH ROTOR FRONT DOOR

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 znp p/hds mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

7

1309419C2

CONE

ASSY, transition, replaces 1317770C1, order cone 1309419C2 and vane 186985C3, Serial Range: -1179

1шт.

7

1309419C2

CONE

ASSY, transition, replaces 1317770C1, order cone 1309419C2 and vane 186985C3, Start Serial: 1180

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

186917C1

SCREW

SCREW, 3/8 x 1 slt t/hd w/scotch grip

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

8

195202C1

SEAL

feeder

2шт.

9

195409C1

PLATE

ASSY, seal backup

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

179749C2

PRODUCT GRAPHIC

danger

1шт.

11

1302141C2

SUPPORT

LH pocket, used with cone, 1309419C1, Serial Range: -1179

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

12

120253C1

CONDUIT

LH pocket support, 8.25 in.

1шт.

Выбрано товаров: 28
