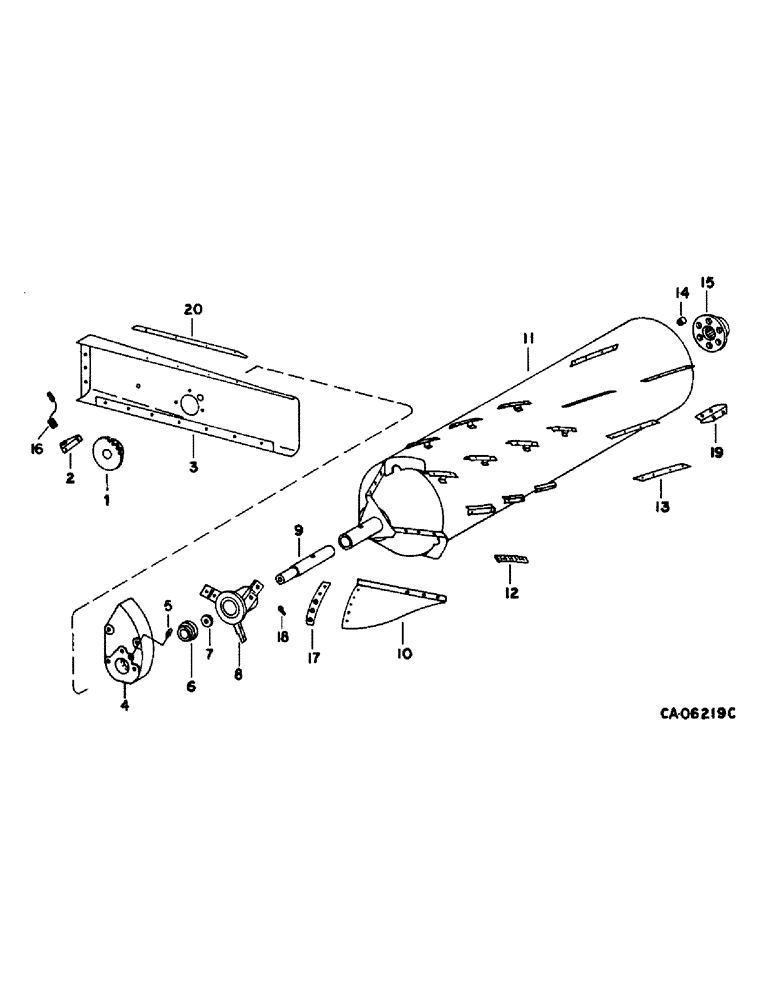

Запчасти Case IH 1470 (21-03) - THRESHING ROTOR AND CONCAVES, ROTOR, EDIBLE BEAN (14) - THRESHING

1

ROTOR, mult-position tachometer rotor speed magnetic pickup, refer to this group under rotor, grain

1шт.

2

SUPPORT, rotor tachometer magnetic, refer to this group under rotor, grain

1шт.

3

SUPPORT ASSY, front bearing, refer to this group under rotor, grain

1шт.

4

1309076C1

BEARING HOUSING

rotor front bearing, replaces 192956C1

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER, front bearing housing

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

6

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

rotor front shaft

1шт.

8

191546C2

IMPELLER

rotor front

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

22109R1

HEADED PIN

PIN, 3/4 x 4.500 hd type 5

1шт.

9

191545C1

SHAFT

ROD, rotor front

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

22811R1

WASHER

2.031 x 2.750 x .067

1шт.

10

1957446C1

BLADE

KIT, rotor impeller, replaces package, 1309130C1

1шт.

For Ref #10 see SB86-87 10/19/95

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

9412230

LOCK NUT

1/2 phc P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

11

ROTOR ASSY, threshing, 181045C96, 24 in., order rotor assy, 1327672C91 and extension package, 180951C92, includes nos. 8 thru 10, 12 thru 17 and 18

1шт.

12

1308829C1

BAR

helical rasp 120 deg, replaces package 1309122C1

21шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc P/T lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

13

186336C2

BAR

rotor rear helical, replaces package, 181072C2

9шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

180703C1

PACKAGE,SERVICE

INSULATOR, rotor drive coupler, package of 6

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

.531 x 1.500 x .12 hardened

1шт.

15

185166C91

HUB

COUPLER ASSY, rotor drive, includes ref. no. 14

1шт.

16

GAGE, reluctance pickup, refer to this group under rotor, grain

1шт.

17

1309185C1

SUPPORT

BAR, wear/reinforcing, chrome, replaces package, 1309310C1, includes ref. no. 18 and hardware

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

9412230

LOCK NUT

1/2 phc P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

18

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

SCREW, wear reinforcing

9шт.

9412230

LOCK NUT

1/2 P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

19

183335C3

SUPPORT

rotor rear bar

3шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

6шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock, instructions, installing (NSS)

1шт.

20

BAR, front door hold down, refer to this group under rotor, grain

1шт.

1324208C1

SHIM KIT

PACKAGE, rotor rasp shim, replaces 1319543C1, consists of (28) shim, .010 (NSS), (28) shim, .030 (NSS), (28) shim, .053 (NSS), (28) shim, l093 (NSS), instructions (NSS)

1шт.
