Запчасти Case IH 1470 (21-01) - THRESHING ROTOR AND CONCAVES, ROTOR, GRAIN (14) - THRESHING

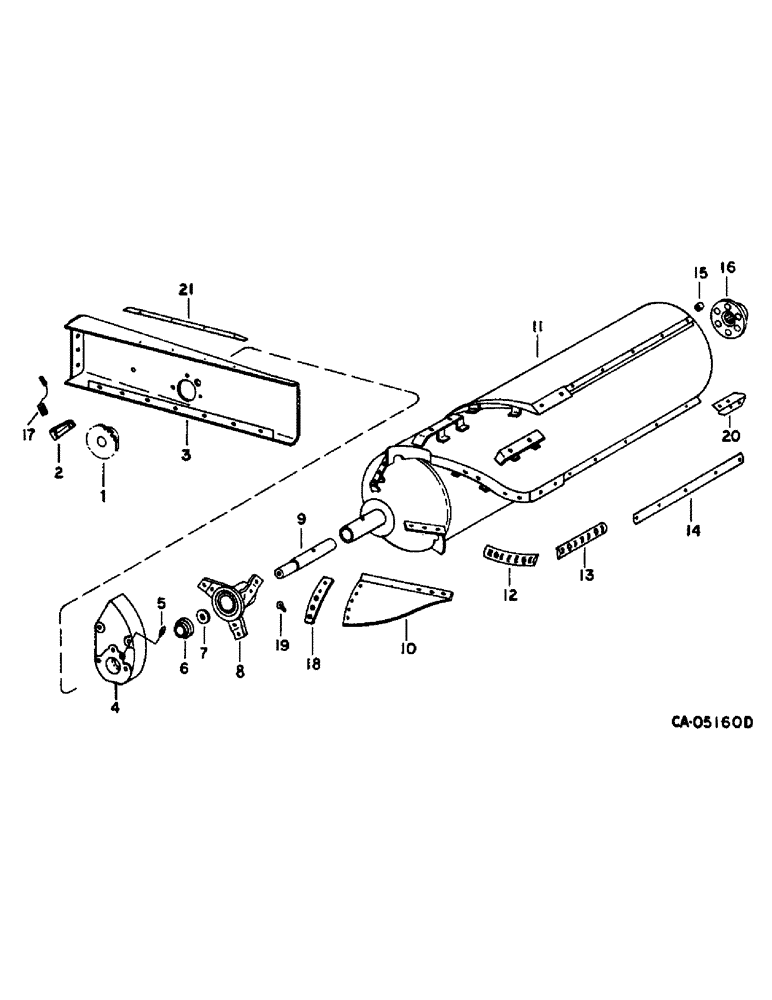

Схема запчастей Case IH 1470 - (21-01) - THRESHING ROTOR AND CONCAVES, ROTOR, GRAIN (14) - THRESHING
16
13
2
5
7
19
18
14
9
17
8
6
12
1
20
15
4
11
10
3
21

Артикул

Название

Примечание

Количество

1

198527C1

ROTOR

multi-position tachometer rotor speed magnetic pickup

1шт.

2

193221C1

SUPPORT

rotor tachometer magnetic, Serial Range: -1000

1шт.

2

1301239C1

BRACKET

cylinder tachometer magnetic, Start Serial: 10001

1шт.

3

193163C5

SUPPORT

ASSY, front bearing

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

1309076C1

BEARING HOUSING

rotor front bearing, replaces 192956C1

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER, front bearing housing

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

6

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

rotor front shaft

1шт.

8

191546C2

IMPELLER

rotor front

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

22109R1

HEADED PIN

PIN, 3/4 x 4.500 hd type 5

1шт.

9

191545C1

SHAFT

ROD, rotor front

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

22811R1

WASHER

2.031 x 2.750 x .067

1шт.

10

1957446C1

BLADE

KIT, rotor impeller, replaces package, 1309130C1

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

9412230

LOCK NUT

1/2 phc prevailing torque

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

11

1309309C93

ROTOR ASSY.

ROTOR ASSY, threshing, 24 in., includes ref. nos. 8 thru 10, 12 thru 16 and 18 thru 20

1шт.

12

1308829C1

BAR

helical rasp 120 deg, replaces package, 1309122C1

12шт.

12

1324583C1

BAR

helical rasp 120 deg, chrome

12шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc prevailing torque

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

13

1308668C1

RASP BAR

BAR, straight rasp, replaces package, 1309123C1

9шт.

131324582C1

BAR, straight rasp, chrome

9шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc prevailing torque

1шт.

14

1303038C2

BAR

rotor rear straight, replaces package, 180704C4

3шт.

14

1324580C1

BAR

rotor rear straight, chrome

3шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

180703C1

PACKAGE,SERVICE

INSULATOR, rotor drive coupling, package of 6

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

.531 x 1.500 x.12 hardened

1шт.

16

185166C91

HUB

COUPLING ASSY, rotor drive, includes ref. no. 15

1шт.

17

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range: -10000

1шт.

145507

NUT,Stamped, 7/8"-14

7/8NF cad stamped

1шт.

17

1301241C1

SENSOR

CONVERTER, reluctance pickup, Start Serial: 10001

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 C-Z stamped

1шт.

18

1309185C1

SUPPORT

BAR, wear/reinforced, chrome, replaces package, 1309310C1

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

9412230

LOCK NUT

1/2 phc P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

20

183335C3

SUPPORT

rotor rear bar

3шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

6шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock, instruction, installing (NSS)

6шт.

21

1308967C1

BAR

rotor front door hold down

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

1324208C1

SHIM KIT

PACKAGE, rotor rasp shim, replaces 1319543C1, consists of, (28) shim, .010 (NSS), (28) shim, .030 (NSS), (28) shim, .053 (NSS), (28) shim, .093 (NSS), instructions (NSS)

1шт.

1324031C1

PACKAGE

grain rotor separator angle bar support, consists of (4) support, rear bar (NSS), instructions (NSS)

1шт.

Выбрано товаров: 69
