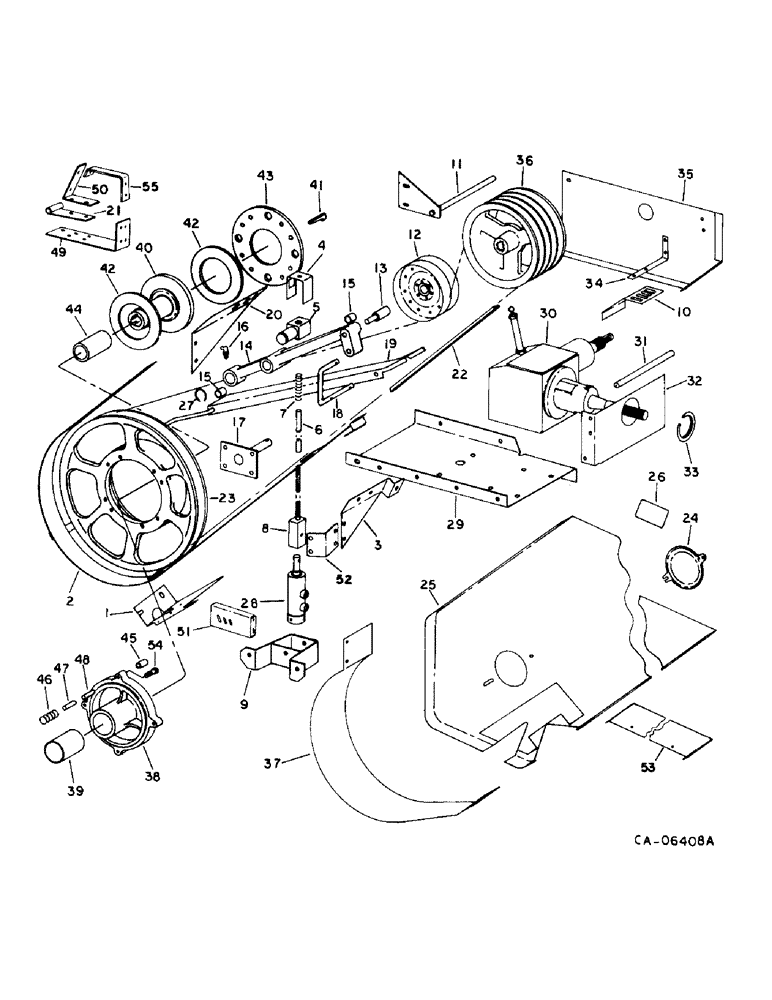

Запчасти Case IH 1470 (33-11) - FEEDER, FEEDER DRIVE (13) - FEEDER

1

1304084C2

SUPPORT

ASSY, belt guard lower, w/o rock trap

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 znd type 5

2шт.

1

1314056C1

SUPPORT

ASSY, belt guard lower, w/rock trap

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

2

1304079C2

TUBE

GUARD ASSY, feeder belt, w/stone retarder

1шт.

2

1314083C1

SUPPORT

GUARD ASSY, feeder belt, w/rock trap

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

3

188045C2

SUPPORT ASSY.

SUPPORT ASSY, belt guard rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

4

194357C2

CHANNEL

CLIP, drive belt tightener

1шт.

5

186890C1

PIVOT

feeder drive arm spring rod

1шт.

23047R1

WASHER

1.531 x 2.500 x .054

1шт.

6

194356C1

TUBE

tightener spring rod

1шт.

7

173863C1

SPRING

tightener rod

1шт.

8

194216C2

ROD

ASSY, feeder drive tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

23304R1

CLEVIS PIN,3/8" x 1 9/16"

PIN, CLEVIS, 3/8" x 1 9/16"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

9

194369C2

SUPPORT

ASSY, cylinder

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

10

194383C3

BRACKET

SUPPORT, upper belt guide

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

11

195109C1

ROD ASSY.

ROD ASSY, feeder drive belt trap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

12

1304056C1

PULLEY

feeder drive flat idler, 8 in. OD, 203.2 mm OD

1шт.

13

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSY, idler arm pulley

1шт.

14

1304055C92

LEVER ASSY.

LEVER ASSY, feeder drive idler, includes ref. nos. 12, 13 and 15

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

6шт.

15

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

feeder drive idler arm

2шт.

16

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 45 deg lub

1шт.

17

185414C2

SUPPORT

ASSY, feeder drive idler pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

18

1304058C1

ROD

feeder belt retainer

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

19

1304057C1

GUIDE

ASSY, feeder drive belt, w/stone retarder

1шт.

19

1314055C1

GUIDE

ASSY, feeder drive belt, w/rock trap

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20

192131C3

SUPPORT

belt guard upper

1шт.

21

194364C2

HINGE

retarder pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

22

1304060C2

V-BELT,149.99" L

Drive Feeder, with Stone Retarder 149.99" L

1шт.

22

1314075C1

BELT,4132.69 mm L

V-BELT, , Feeder Drive, with Rock Trap 4132.69 mm L

1шт.

23

1304075C2

PULLEY

feeder driven, 22.56 in. OD, 573.0mm OD

1шт.

24

188315C1

DOOR

drive belt cover access

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

935735R1

WING NUT

belt cover access door wing

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

25

1304736C91

COVER

SHIELD ASSY, feeder drive belt, w/stone retardeer drum

1шт.

25

1314116C92

COVER

SHIELD ASSY, feeder drive belt, w/rock trap, includes ref. no. 26

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

26

188199C1

PRODUCT GRAPHIC

caution

1шт.

27

27885R1

SNAP RING,#150, 1.408", Ext

RING, spring rod pivot retaining

1шт.

28

CYLINDER ASSY, refer to group 10 under feeder and separator clutch cylinder

1шт.

29

194521C1

SUPPORT

gear case

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

30

CASE, feeder and cleaning fan drive gear, refer to group 7 under feeder and cleaning fan drive gear case

1шт.

31

191497C1

SEALING STRIP

STRAP, gear case support, 10.6 in., 269.0mm

1шт.

32

191399C1

SUPPORT

gear case rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

33

191496C1

SEALING STRIP

gear case support, 11.8 in., 299.7mm

1шт.

34

1304717C2

ANGLE

feeder drive belt upper shield

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

35

1304093C1

SUPPORT

feeder drive belt upper

1шт.

36

PULLEY, feeder ddrive, refer to group 20 under belt drive, RH side

1шт.

37

1304125C1

SHIELD

pivot shaft driven pulley

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

38

1305220C91

HUB ASSY.

HUB ASSY, outer friction clutch, includes ref. no. 39

1шт.

39

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

outer friction clutch hub

1шт.

40

1305154C2

HUB

feed conveyor slip clutch

1шт.

41

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

42

181579C1

DISC

DISC, friction clutch

2шт.

43

185955C1

PLATE

RETAINER, friction

1шт.

44

584608R1

SPACER

clutch

1шт.

45

1305375C1

SPACER

drive lub

4шт.

46

1305692C1

SPRING

slip clutch

8шт.

47

S3780

SPACER,3/8" Pipe x 1 3/4"

Replaces 11531N 3/8" Pipe x 1 3/4"

8шт.

48

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

.546 x 540 x 1.500

8шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

49

1315078C3

SUPPORT

pivot extension, w/rock trap

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

50

1315079C1

SUPPORT

shield upper, w/rock trap

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

.41 x 1.5 x .188

1шт.

51

1315083C1

SUPPORT

belt shield lower extension, w/rock trap

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

52

1315310C1

SUPPORT

ANGLE, shield rear extension, w/rock trap

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

53

1314090C2

SHIELD

feeder belt extension, w/rock trap

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

54

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

3/8 x 6 hex-hd type 8, w/rock trap

8шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

55

1315232C1

SUPPORT

shield upper, w/rock trap

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.
