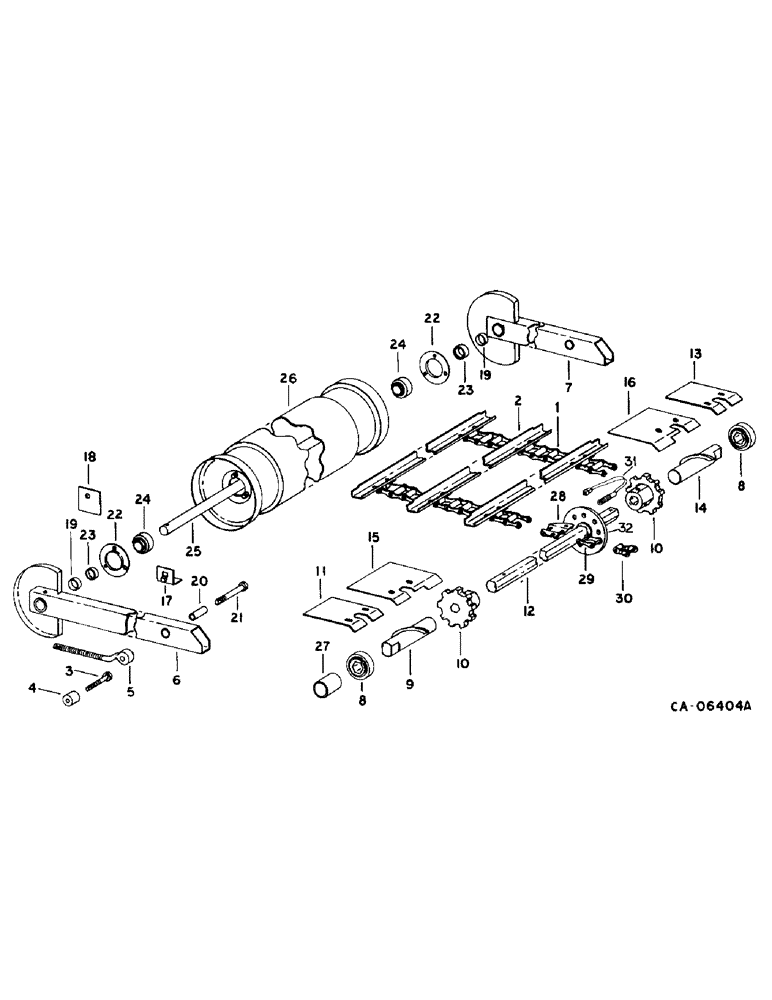

Запчасти Case IH 1470 (33-09) - FEEDER, FEEDER CONVEYOR (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
1319201C91
CHAIN (CE)
CHAIN ASSY, feed conveyor, includes ef. no. 2, replaces 182095C91 and 1313187C91
1шт.
2
1313419C1
SLAT
PACKAGE, feed conveyor, replaces 182100C1
1шт.
3
189709C1
BOLT,Hex, 1/2" - 13 x 3"
chain tightening clamp
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
22770R1
WASHER
.531 x 1.500 x .164
1шт.
4
197211C1
SPACER
feeder drum stop
2шт.
5
176508C1
BOLT,5/8" - 11 x 228.60mm
feed conveyor tightener
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 type 5
1шт.
6
1304193C1
SUPPORT
ARM ASSY, drum support LH, w/stone retarder drum
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3/8 x 3 znd type 5
1шт.
6
1305156C1
ARM ASSY.
ARM ASSY, drum support LH, w/o stone retarder drum
1шт.
24863R1
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
7
1304194C1
SUPPORT
ARM ASSY, drum support RH, w/stone retarder drum
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3/8 x 3 znd type 5
1шт.
7
1305157C1
ARM
ASSY, drum support RH, w/o stone retarder drum
1шт.
24843R1
BOLT,Hex, 3/8" - 16 x 2", Gr 8
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
8
179665C91
BALL BEARING,38.1mm Hex x 85mm OD x 30mm W
BEARING ASSY, feed conveyor shaft
2шт.
9
178780C1
SPACER
ASSY, conveyor sprocket LH
1шт.
10
197556C1
SPROCKET ASSY.
SPROCKET, feed conveyor chain, 9T
2шт.
197643C1
SET SCREW
1/2-13 x 1/2 hex-soc-cup, point
1шт.
11
185708C1
STRIPPER ASSY.
STRIPPER ASSY, LH, Serial Range: -1179
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 cad P/T lock type 8
1шт.
390307C1
WASHER
.531 x 1.062 x .095 hdn
1шт.
935915R1
SHIM,33.02mm OD x 0.38mm Thk
washer .015
1шт.
12
197277C2
SHAFT
feed conveyor, w/o rock trap
1шт.
12
1320160C2
BAR
SHAFT, feed control, w/rock trap
1шт.
137323
COTTER PIN,5/16" x 2 1/2"
Pin, Split (Cotter), 5/16" x 2 1/2"
1шт.
609376R1
WASHER
1.781 x 2.500 x .105
1шт.
20705R1
WASHER
1.781 x 2.500 x .054
1шт.
13
185709C1
STRIPPER ASSY.
STRIPPER ASSY, RH, Serial Range: -1179
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 cad P/T lock type 8
1шт.
390307C1
WASHER
.531 x 1.062 x .095 hdn
1шт.
935915R1
SHIM,33.02mm OD x 0.38mm Thk
washer .015
1шт.
14
178781C1
SPACER
ASSY, conveyor sprocket RH
1шт.
15
185818C1
STRIPPER ASSY.
STRIPPER, LH, Start Serial: 1180
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
16
185819C1
STRIPPER ASSY.
STRIPPER, RH, Start Serial: 1180
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
17
187364C2
ANGLE
ASSY, drum arm upper stop
2шт.
598819R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5
BOLT, 5/8 x 2-1/4 crg type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
22810R1
SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole
.656 x 1.250 x .054 sq/h
1шт.
18
187225C1
BAR
upper stop adjusting, Serial Range: -5500
2шт.
18
1304746C1
BAR
upper stop adjusting, Start Serial: 5501
2шт.
19
11449P
SPACER,1 1/4" Pipe x 1/2"
conveyor drum bearing, w/stone retarder drum
2шт.
20
187217C1
SPACER,7/8" Tube x 1 13/16"
drum arm pivot, w/stone retarder drum
2шт.
20
558506R1
SPACER
drum arm pivot, w/o stone retarder drum
2шт.
21
187218C1
BOLT
drum support arm, w/stone retarder drum
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 type 5
1шт.
608701R1
WASHER
.656 x 1.250 x .054
1шт.
131016
WASHER
.656 x 1.312 x .074
1шт.
21
178005C1
BOLT,Hex, 5/8" - 11 x 3", Gr 5
drum arm support, w/o stone retarder drum
1шт.
NLS
NO LONGER SERVICED
.656 x 1.312 x .074
1шт.
22
202909C1
BEARING HOUSING
FLANGE, drum bearing, replaces two 565631R1, w/stone retarder drum
4шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
25709R1
WASHER
.406 x .812 x .089 hdn
1шт.
22
165360C1
FLANGED BEARING,95.2 mm OD x 8.74 mm
FLANGE, drum bearing, w/o stone retarder drum
2шт.
231-1447
NUT,7/16"-14, GB
NUT, LOCK, 7/16"-14, GB
1шт.
23
557995R11
COLLAR
W/SET SCREW, feed conveyor drum bearing, w/stone retarder drum
2шт.
23
455102R21
COLLAR
W/SET SCREW, feed conveyor drum bearing, w/o stone retarder drum
2шт.
24
619738R91
BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"
feed conveyor drum, w/stone retarder drum
2шт.
24
202311C91
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
BEARING, feed conveyor drum, w/o stone retarder drum
2шт.
25
187207C2
SHAFT,31.75mm OD x 909.3mm L
SHAFT, feed drum, w/stone retarder drum
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3/8 x 3 type 5
1шт.
25
175982C2
SHAFT
feed drum, w/o stone retarder drum
1шт.
20704R1
WASHER
1.031 x 1.500 x .105
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
26
1957348C1
BRAKE ASSY.
DRUM ASSY, feed conveyor, replaces drum, 187195C2 by also ordering four bearing flanges 202909C1, w/stone retarder drum
1шт.
26
175975C1
DRUM HUB
DRUM ASSY, feed conveyor, w/o stone retarder drum
1шт.
27
162172C1
SPACER
feeder pivot shaft LH
1шт.
609376R1
WASHER
1.781 x 2.500 x .105
1шт.
275804R1
BOLT,Hex, 3/8" - 16 x 3", Gr 8
3/8 x 3 PHC type 8
1шт.
25522R1
NUT,3/8"-16, G8
3/8 PHC type 8
1шт.
120385
WASHER,3/16"
3/8 lock
1шт.
28
182090C1
LINK,Chain, 41.4mm Pitch
LINK, conveyor attaching
1шт.
29
182094C1
LINK,Chain, Link, 41.4mm
conveyor connecting
1шт.
23442R1
PIN,2.36mm OD
#550 roller chain "S"
1шт.
30
182127C1
LINK,41.4mm Pitch
conveyor offset
1шт.
31
1301241C1
SENSOR
CONVERTOR, feeder pickup
1шт.
107827
NUT,Stamped, 3/4"-16
3/8 C-Z stamped
1шт.
32
1305665C1
DISC
FLANGE ASSY, convertor pickup
1шт.
197643C1
SET SCREW
1/2 x 1/2 hex-soc-hd
1шт.
SB 039-87 Feeder Drum Arm Washer
1шт.
SB 021-88 Bolt on Feeder Chain Slats 1313419c2 10/19/95
1шт.
SB 015-88 Feeder Chains for service are released with an A557 transmission chain for longer life and improved reliability.
1шт.
