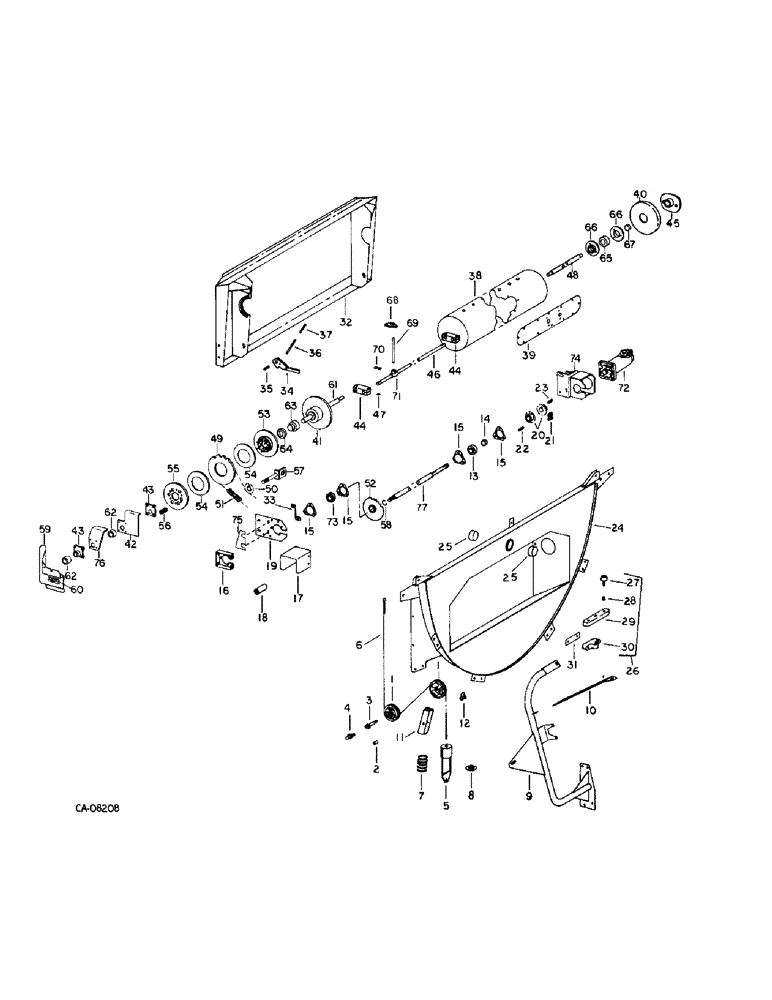

Запчасти Case IH 1470 (33-06) - FEEDER, FEED BEATER, SERIAL NO. 10076 AND ABOVE (13) - FEEDER

1

634956R11

PULLEY

W/BUSHING SWIVEL CABLE, includes ref no. 2

1шт.

2

574859R1

BUSHING

4шт.

3

574317R1

STUD,Hex, 5/8" - 11 x 2 3/4"

BOLT, cable pulley

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

1304191C1

RETAINER

ASSY, spring leveling

2шт.

657196R1

PIN

1/4 x 2 pln slt-spr

1шт.

131019

SWEEP

1.062 x 2.000 x .108

1шт.

6

1304022C1

CABLE

ASSY, leveling

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21591R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1.750 hd type 5

1шт.

7

338133R2

SPRING

leveling

2шт.

8

1304588C1

WASHER

WASHER, spring leveling

2шт.

9

1304211C1

SUPPORT

BRACKET ASSY, cable leveling LH, Serial Range: -12000

1шт.

9

1304211C1

SUPPORT

BRACKET ASSY, cable leveling LH, Start Serial: 20001

1шт.

9

1314018C1

BRACKET

ASSY CABLE LEVELING LH, Serial Range: 12001-20000

1шт.

9

1304212C1

SUPPORT

BRACKET ASSY, cable leveling RH, Serial Range: -12000

1шт.

9

1304212C1

SUPPORT

BRACKET ASSY, cable leveling RH, Start Serial: 20001

1шт.

9

1314019C1

BRACKET

ASSY, cable leveling RH, Serial Range: 12001-20000

1шт.

10

1304585C1

BAR

brace

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

11

1304213C1

YOKE

BLOCK ASSY, pulley

2шт.

12

374753R1

STIRRUP

SHACKLE

2шт.

137785

PIN, 1/8 x 1 cot

1шт.

21573R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2. hd type 1

1шт.

13

611583R91

BALL BEARING

BEARING, jackshaft RH

1шт.

14

517645R11

COLLAR

W/SET SCREW, locking

1шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE, jackshaft bearing

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

178254C1

SUPPORT

jackshaft

1шт.

17

189729C1

CHANNEL

SHIELD, jackshaft LH

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

18

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, jackshaft

1шт.

586591R1

COTTER PIN

PIN, 1/8 QA

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2.375 hd type 5

1шт.

19

175915C2

SUPPORT

LH bearing

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

487374T1

NUT, 1/2 flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

1314043C1

PACKAGE

COUPLER ASSY, chain

1шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 c/pt znp hdl/s set

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8 x 1/2 c/pt znp hdl/s set

1шт.

21

CHAIN ASSY, coupler, use 17 links from 10 ft roll marked 1792D and one connecting link 1378D

1шт.

1378D

CHAIN LINK

LINK, #50-2 single pitch connecting

1шт.

22

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

23

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 1 sq parallel

1шт.

24

1314012C92

HOUSING

ASSY, includes ref no. 25

1шт.

25

1304162C1

BUSHING,76.71mm ID x 79.91mm OD x 31.75mm L

housing

2шт.

26

1304216C92

SUPPORT

ROLLER ASSY, housing, includes ref nos 27 thru 30

1шт.

26145R1

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"

SCREW, 5/8 x 1.750 ast 12pt flg

1шт.

27

1304217C92

BEARING,50.8 mm OD x 50.8, 31.7 mm

track roller

8шт.

426767

NUT,7/8"-14, G5

7/8-NF type 5

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

28

1304473C1

BUSHING

roller arm

4шт.

29

1304474C1

BAR

ARM, roller

4шт.

30

1304475C1

SUPPORT

roller arm

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

1шт.

26145R1

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"

SCREW, 5/8 x 1.750 ast 12pt flg

1шт.

31

1304476C1

SHIM

roller assy

8шт.

32

1314026C2

ADAPTER

ASSY, feeder

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

33

197988C1

SUPPORT

bearing brace

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

34

179024C1

HINGE

HANDLE ASSY, locking

2шт.

35

177141C1

PIN,15.88mm OD x 41mm L

locking latch pivot

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

36

177138C1

ROD

locking latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

37

367833R1

SPRING

locking latch rod

2шт.

1338021C1

PIN,7.94mm OD

latch locking

1шт.

38

160322C12

PIPE FITTING

TUBE ASSY, Serial Range: -12000

1шт.

38

1314024C1

TUBE,304.75 mm OD, 1129, 968 mm Length

ASSY, Start Serial: 12001

1шт.

39

150731C2

COVER

beater tube, Serial Range: -12000

1шт.

39

1313091C1

COVER

beater tube, Start Serial: 12001

1шт.

167345

BOLT (SPREADER),Cross Pan Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 p/hdcr tap

1шт.

40

158906C1

RETAINER

beater

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

41

158905C2

HUB

drive

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

1304392C1

SUPPORT

shaft

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

43

158907C1

HUB

support

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

44

158912C1

CLAMP

finger shaft

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

45

158915C1

HUB

finger adjusting

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 crg type 1

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

21029R1

WASHER

.469 x 1.000 x .105

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

46

159181C1

SHAFT

center

1шт.

47

28459KA

WASHER

shaft clamp

4шт.

48

158913C1

ROD

finger adjusting

1шт.

49

1314003C1

SPROCKET ASSY.

SPROCKET, driven, 54T

1шт.

50

594706R91

SPROCKET ASSY.,15T

SPROCKET ASSY, drive idler, 15T

1шт.

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT, 5/8 x 2-1/2 crg type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

51

CHAIN ASSY, drive, use 79 links from 10 ft roll marked 1791D, four offset links 1315D and one connecting link 1310D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

1315D

LINK

#50 single pitch offset

4шт.

52

1314004C1

SPROCKET ASSY.

SPROCKET ASSY, drive, 24T

1шт.

53

1304999C1

HUB

ASSY, sprocket

1шт.

54

181579C1

DISC

DISC, friction clutch

2шт.

55

1304998C1

RETAINER

friction clutch outer

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120388

.438 x 1.000 x .064

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

56

28395H

SPRING

slip clutch

6шт.

57

1314031C2

ROD

ASSY, tightener

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

58

575186R1

SNAP RING

RING, snap

1шт.

59

1314049C91

SHIELD

ASSY, includes ref no. 60

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

60

179749C2

PRODUCT GRAPHIC

danger

1шт.

61

158908C1

ROD

SHAFT, support

1шт.

62

597950R1

COLLAR

locking

2шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 c/pt znp hdl/s set

1шт.

63

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

ASSY, beater

1шт.

64

557995R11

COLLAR

W/SET SCREW, bearing locking

1шт.

65

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

1шт.

66

937517R1

FLANGE

bearing

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

67

455102R21

COLLAR

W/SET SCREW, bearing locking

1шт.

68

189649C1

GUIDE

finger, Serial Range: -12000

16шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

68

1307259C2

GUIDE

finger

24шт.

127550

NUT,Tee, 1/4"-20

1/4-20 pln tee

1шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

no. 1/4 x 3/4 I/hd cr

1шт.

69

187072C3

FINGER

SHAFT, retractable finger, Serial Range: -12000

16шт.

69

1313061C2

PIN,15.87mm OD x 195mm L

SHAFT, retractable finger, Start Serial: 12001

24шт.

70

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot, finger

20шт.

71

187071C1

HUB

retractable finger, Serial Range: -12000

16шт.

71

1308425C1

HUB

retractable finger, Start Serial: 12001

20шт.

72

1310797C91

MOTOR

ASSY, header drive

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

1304288C1

SHIM

motor mounting

1шт.

1304289C1

SHIM

motor mounting

1шт.

73

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, feeder jackshaft LH

1шт.

74

1314038C1

SUPPORT

ASSY, header drive mounting

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

75

1314045C1

BAR

feeder jackshaft bearing support plate

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

76

1314046C1

SUPPORT

ASSY, feed beater

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

77

1314037C1

SHAFT

feeder cross

1шт.

1301932C2

SEAL KIT

ASSY, header motor shaft seal

1шт.

1301933C2

PACKAGE

KIT ASSY, header motor seal

1шт.
