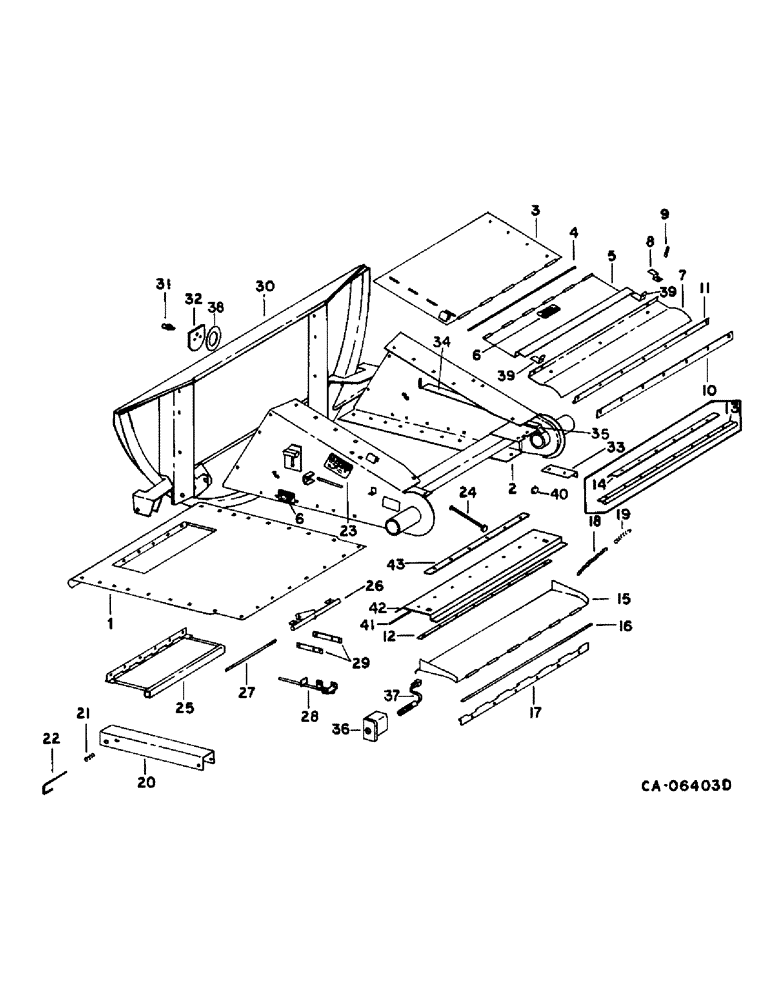

Запчасти Case IH 1470 (33-01) - FEEDER, FEEDER (13) - FEEDER

1

1304946C2

SUPPORT

SHEET ASSY, feeder bottom

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

no. 3/8 x 1-1/4 t/hds

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

3/8 PHC feeder

1шт.

2

1304734C91

HOUSING

ASSY, feeder, for 47 in. feeder, includes ref. no. 6, 23, 24, 34 and 35

1шт.

3

185837C1

SUPPORT ASSY.

SUPPORT ASSY, feeder top

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 PHC flange

1шт.

4

175906C1

ROD

top door hinge

1шт.

5

180555C91

DOOR ASSY.

DOOR ASSY, feeder top, includes ref. no. 6

1шт.

6

179749C2

PRODUCT GRAPHIC

danger instr.

3шт.

7

197426C4

COVER

feeder top

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 PHC flange

1шт.

8

184645C1

CLIP

top door latch

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

9

7422T

SPRING

tip door latch

1шт.

10

634204R1

SEAL

feeder top

1шт.

11

197418C1

SUPPORT

feeder top seal

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

197429C1

SEALING STRIP

lower door seal

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

6шт.

196922C1

LOCK NUT

no. 10 P/T lock

6шт.

13

197428C2

DOOR SEAL

feeder lower door, Serial Range: -20000

1шт.

Rivets for items #13 & 14 are 187166c1.

1шт.

14

197427C1

GUIDE

STRIP, lower door seal spacer, Serial Range: -20000

1шт.

15

193362C2

DOOR

ASSY, feeder bottom

1шт.

16

159012C1

ROD

feeder bottom door hinge

1шт.

17

193364C2

HINGE

feed plate

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

18

167570C1

CHAIN,203.2mm L

lower door latch

2шт.

19

635503R1

SPRING,148.8mm Free Length

lower door latch

2шт.

20

197554C3

CHANNEL

lift cylinder lock

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

586591R1

COTTER PIN

PIN, 1/8 qa

1шт.

21

M296

SPRING

lift locking rod

1шт.

22

197849C1

ROD

cylinder lift lock

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

23

189922C3

DECAL

PRODUCT GRAPHIC, danger

2шт.

24

185836C1

BOLT,Hex, 5/8" - 11 x 9"

header leveling adjusting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

25

1304940C2

DOOR

ASSY, feeder bottom

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

6шт.

26

1304958C2

TUBE

ASSY, door latch

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 znd type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

27

1304953C1

ROD

latch pivot

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

28

1304951C1

SUPPORT

HANDLE ASSY, door latch

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

29

1304956C1

BAR

LINK, connecting

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN, 3/8 x .750 hd type 1

2шт.

30

1304169C2

FEEDER

CIRCLE ASSY

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

31

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg, Serial Range: -5500

1шт.

31

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf short 45D, Start Serial: 5501

1шт.

32

1304170C2

BAR

CAP, feed beater housing, Serial Range: -10075

1шт.

32

1314023C1

BAR

feed beater housing, Start Serial: 10076

1шт.

26321R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 phc P/T type 8

1шт.

178627

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, 5/8 ext-int tooth lock

1шт.

33

1314035C1

ANGLE

circle LH

1шт.

33

1314036C1

ANGLE

circle RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

34

182032C2

BAR

feeder upper

2шт.

35

182035C1

SUPPORT

feeder lower

2шт.

36

1307486C1

SUPPORT ASSY.

SUPPORT ASSY, transducer mounting

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 hex-hd flange

1шт.

37

GAGE, transducer, refer to this group under feeder conveyor

1шт.

38

1314020C1

THRUST WASHER

GASKET, thrust washer

1шт.

39

1322144C1

ANGLE

top door stop

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

40

190295

PLUG,13/16"

13/16 hole dia. pln button, to plug hole in rear cross tie tube when not equipped with automatic feeder cut off

1шт.

41

1319963C1

SEAL

SEAL, feeder rear, Start Serial: 20001

1шт.

42

1319961C1

SUPPORT

feeder bottom rear, Start Serial: 20001

1шт.

43

1319965C1

BAR

feeder bottom rear spacing, Start Serial: 20001

1шт.
