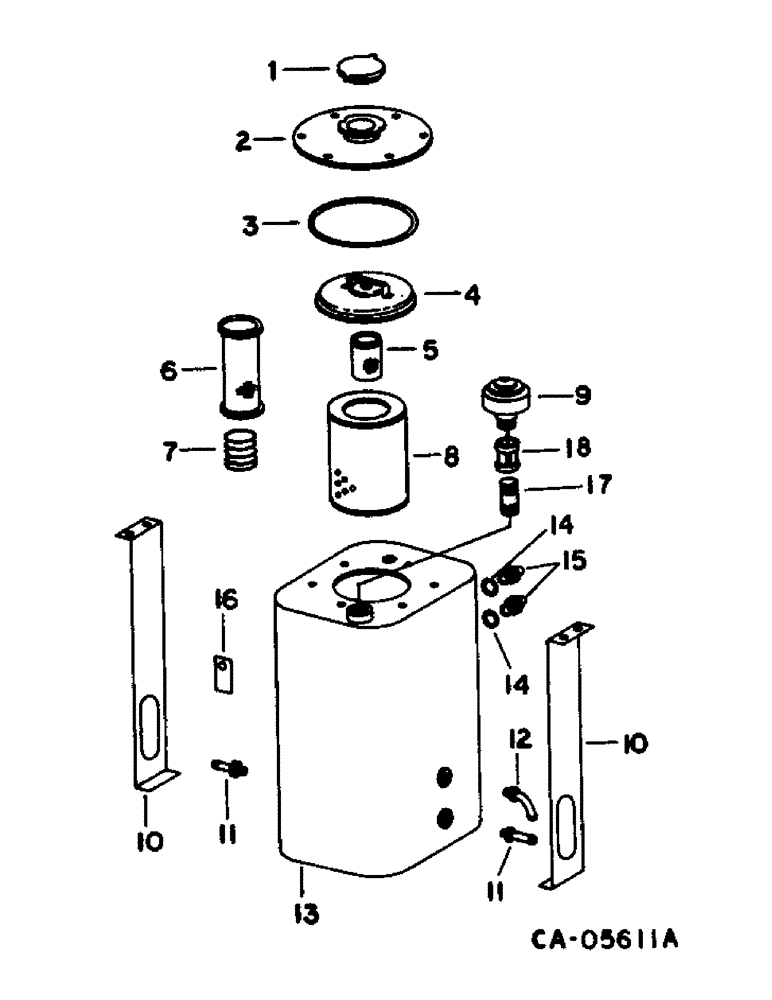

Запчасти Case IH 1470 (10-70) - HYDRAULICS, HYDRAULIC RESERVOIR, LH SIDE (07) - HYDRAULICS

1310801C1

TANK

ASSY, LH hydraulic oil, includes ref. nos. 1 thru 8, 14 & 15

1шт.

1

361705R91

COVER

CAP ASSY, cover

1шт.

2

1301115C1

COVER ASSY

tank

1шт.

3

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

cover

1шт.

4

173131C1

COVER ASSY

LID ASSY, filter

1шт.

5

179489C1

FILTER, ENGINE OIL

FILTER, cover

1шт.

6

173929C1

STRAINER ELEMENT

STRAINER

1шт.

7

173930C1

SPRING

port

1шт.

8

528493R3

HYDRAULIC OIL FILTER

ELEMENT ASSY

1шт.

9

923745C91

BREATHER ASSY.

BREATHER FILTER ASSY

1шт.

10

193291C1

SUPPORT

hydraulic reservoir

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

11

FITTING, refer to this group under hydrostatic motor, pump and header lift diagram

1шт.

12

ELBOW, charge pump suction, refer to this group under hydrostatic motor, pump and header lift diagram

1шт.

13

TANK ASSY, hydraulic oil, not serviced separately, order tank assy, 1310801C1

1шт.

14

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

oil level sight glass

2шт.

15

244600R92

SIGHTGLASS

GLASS, oil level sight, includes ref. no. 14

1шт.

16

159752C1

SUPPORT

hydraulic reservoir clamp

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pln long pipe, breather extension

1шт.

18

111661

COUPLING,3/4" NPT

3/4 pln pipe, breather extension

1шт.

27804R1

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

CLAMP, hyd reservoir, not illustrated

2шт.
