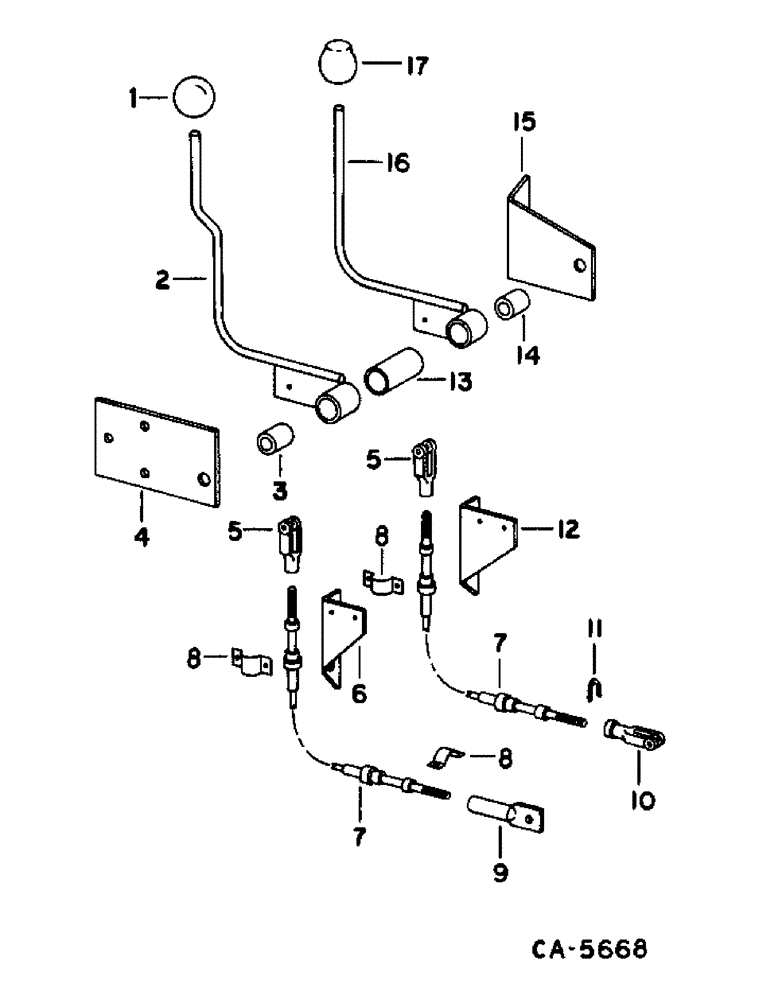

Запчасти Case IH 1470 (10-69) - HYDRAULICS, HEADER AND REEL LIFT CONTROL, SERIAL NO. 10001 AND ABOVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
198936C1
KNOB
header lift control
1шт.
2
195651C91
LEVER
ASSY, header lift control, includes ref. no. 3
1шт.
18784R1
BOLT,Hex, 3/8"-16 x 2 3/4", G2
3/8 x 2-3/4 type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
22258R1
WASHER
.656 x 1.000 x .027
1шт.
3
568920R1
BUSHING
header lift control lever
1шт.
4
193214C1
BAR
header lift control lever LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
5
116383
CLEVIS
upper adjustment rod end
2шт.
121223
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
1шт.
138083
PIN
1/4 x .770 clevis
1шт.
6
198879C1
SUPPORT
cable lift control lever LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
7
198524C1
CABLE
control lift
2шт.
120613
JAM NUT,Hex, 1/4" - 28, Gr 5
1шт.
8
198605C1
CLAMP
lift control cable
3шт.
174097C1
FLANGE NUT,Flg, USR, #10-24
10-24 C-Z flange lock
1шт.
NLS
NO LONGER SERVICED
no. 10 x 3/4 znp h/hd mach
1шт.
9
193215C1
ROD
header lift control cable lower
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
21881R1
CLEVIS PIN
PIN, 3/8 x 1.000 clevis
1шт.
10
409852C1
CLEVIS
1/4-28 adj rod end
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
20286R1
SPLIT PIN/SAFETY PIN
PIN, 3/16 x 1.031 clevis
1шт.
120391
WASHER,#10
.219 x .500 x .036
1шт.
11
198525C1
CLAMP
control cable lower
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
12
198394C1
SUPPORT
control cable upper
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .68 x .051
1шт.
13
568007R1
SPACER,5/8" Tube x 2 1/8"
lift control lever
1шт.
14
568921R1
BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L
reel lift control lever
1шт.
15
198397C1
SUPPORT
reel lift control lever
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
16
193211C91
LEVER
ASSY, reel lift control arm, includes ref. no. 14
1шт.
17
198937C1
KNOB
reel lift control
1шт.
Выбрано товаров: 41
