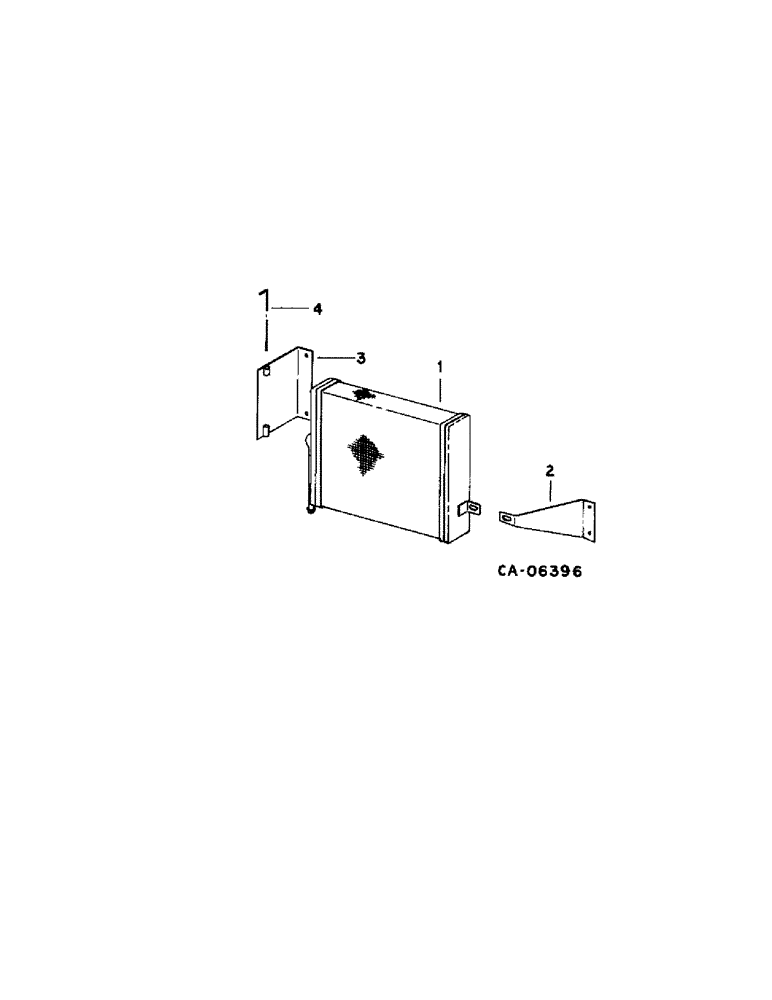

Запчасти Case IH 1470 (10-68[1]) - HYDRAULIC OIL COOLER LOCATED BEHIND ROTARY SCREEN (07) - HYDRAULICS

1

536349R1

COOLER

SPARE PART COOLER, oil

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

2

1304924C1

SUPPORT

SPARE PART SUPPORT, cooler

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

3

1304925C1

SUPPORT

SUPPORT ASSY, cooler

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

4

1304927C1

PIN

SPARE PART PIN, cooler hinge

1шт.
