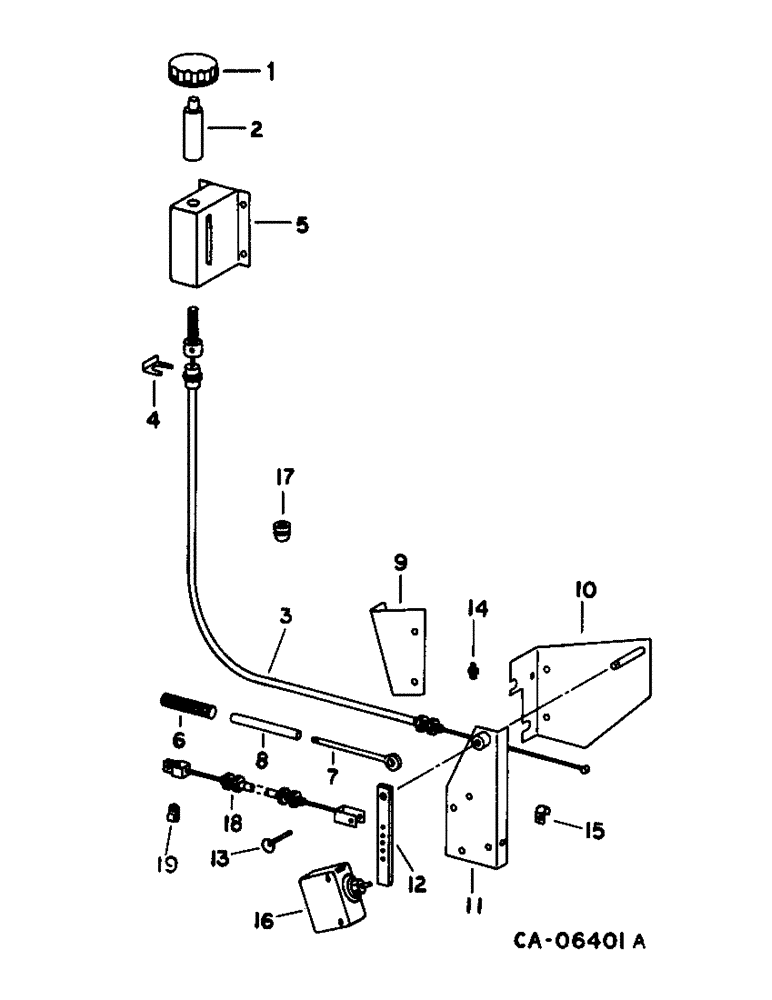

Запчасти Case IH 1470 (10-66) - HYDRAULICS, AUTOMATIC HEADER CONTROL, SERIAL NO. 10000 AND BELOW, SEE NOTE (07) - HYDRAULICS

1

198941C1

KNOB

height control upper cable

1шт.

2

196989C1

UNION

upper control cable

1шт.

3

196887C1

CABLE

height control upper

1шт.

196922C1

LOCK NUT

upper cable grip

1шт.

159967

SCREW,Cross Pan Hd, #10 - 24 x 1 1/2"

no. 10 x 1-1/2 znp P/HDCR mach

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

4

379187C1

CLIP

upper control cable

1шт.

5

198806C1

SUPPORT

ASSY, upper control cable

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

6

391745R1

SPRING

flow control valve pivot support

1шт.

7

198490C1

ROD

header control

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

196621C2

TUBE,0.402" ID, 0.5" OD, 6.88" Length

rod

1шт.

9

1304669C1

SUPPORT

flow control valve

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

10

198486C1

SUPPORT

ASSY, flow control valve pivot

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

11

174235C3

SUPPORT

ASSY, flow control

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

12

174244C1

BAR

flow valve control

1шт.

13

174230C1

PIN

valve control bar to lower cable connecting

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

FITTING, lub

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, upper cable

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

16

VALVE ASSY, automatic flow control, refer to this group under automatic flow control valve

1шт.

17

195803C1

GROMMET

cable seal, 3/8 in. ID

1шт.

18

174240C1

CABLE PULLING GRIP

CABLE, height control lower, 136.1 in., 3456.9 mm for 81- header

1шт.

18

183613C1

CABLE PULLING GRIP

CABLE, height control lower, 86.8 in, 2204.7 mm for 820 header

1шт.

28020R1

PIN

1/4 x 1-1/4 hd type 5

1шт.

473443R1

COTTER PIN

quick attachable cot

1шт.

19

299404C1

CLAMP

3/8 in. ID

1шт.
