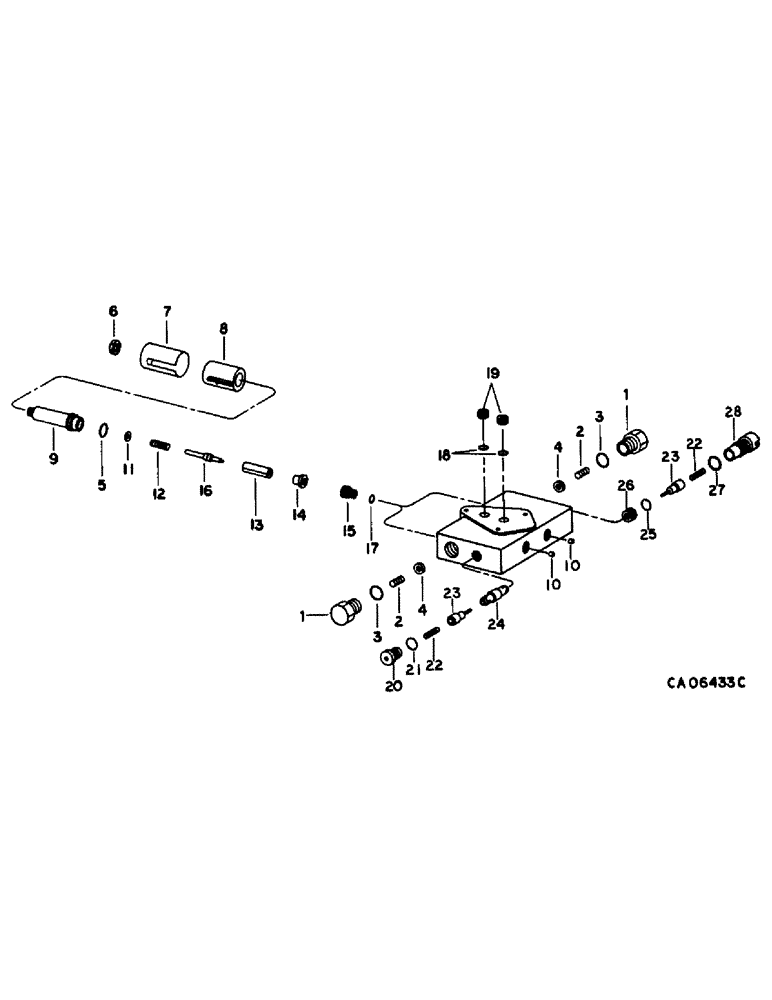

Запчасти Case IH 1470 (10-62) - HYDRAULICS, DOUBLE PILOTED VALVE, UNLOADER SWING, SERIAL NO. 10001 AND ABOVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1267035C92
VALVE
double piloted, replaces 1301650C91, includes ref. nos. 1 thru 5, 9, 11 thru 18 and 20 thru 28
1шт.
1
1301686C1
CAP
PLUG, end
2шт.
2
1301689C1
SPRING
2шт.
3
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 in. OD class 6
2шт.
4
1304687C1
HARNESS
WASHER, spring
2шт.
5
384578R1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
13/16 x 15/16 class 6
2шт.
6
107825
NUT,Stamped, 1/2"-20
1/2 NF
2шт.
7
1301632C1
CAP
coil
2шт.
8
1301633C1
COIL
SWITCH
2шт.
112432
NUT,#10-32, Brass
Machine screw #10-32, Brass
2шт.
9
1301627C1
STUD
ASSY
2шт.
10
1301637C1
ORIFICE
PLUG, orifice
2шт.
11
1301642C1
WASHER
2шт.
12
1301640C1
SPRING
2шт.
13
1301648C1
ARMATURE
BUSHING
2шт.
14
1301624C1
BUSHING
pole
2шт.
15
1301625C1
ORIFICE
PISTON, orifice
2шт.
16
1301647C1
POPPET
PIN, bi-directional
2шт.
17
384937R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1/4 x 3/8 class 6
2шт.
18
379365R1
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3/8 x 1/2 class 6
4шт.
19
1301634C1
VALVE
CAP, plug
2шт.
20
1301670C1
PLUG
1шт.
Used with vlave 1267035C92
1шт.
21
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6
1шт.
Used with vlave 1267035C92
1шт.
22
1272887C1
SPRING
2шт.
Used with vlave 1267035C92
1шт.
23
1267160C2
VALVE
2шт.
Used with vlave 1267035C92
1шт.
24
1267162C1
VALVE
shuttle spool
1шт.
Used with vlave 1267035C92
1шт.
25
382997R1
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1/2 x 5/8 class 6
1шт.
Used with vlave 1267035C92
1шт.
26
1267163C1
WASHER
WASHER, seat
1шт.
Used with vlave 1267035C92
1шт.
27
606271C1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
5/8 x 13/16 class 6
1шт.
Used with vlave 1267035C92
1шт.
28
1267164C1
FITTING
retainer guide
1шт.
Used with vlave 1267035C92
1шт.
Выбрано товаров: 39
