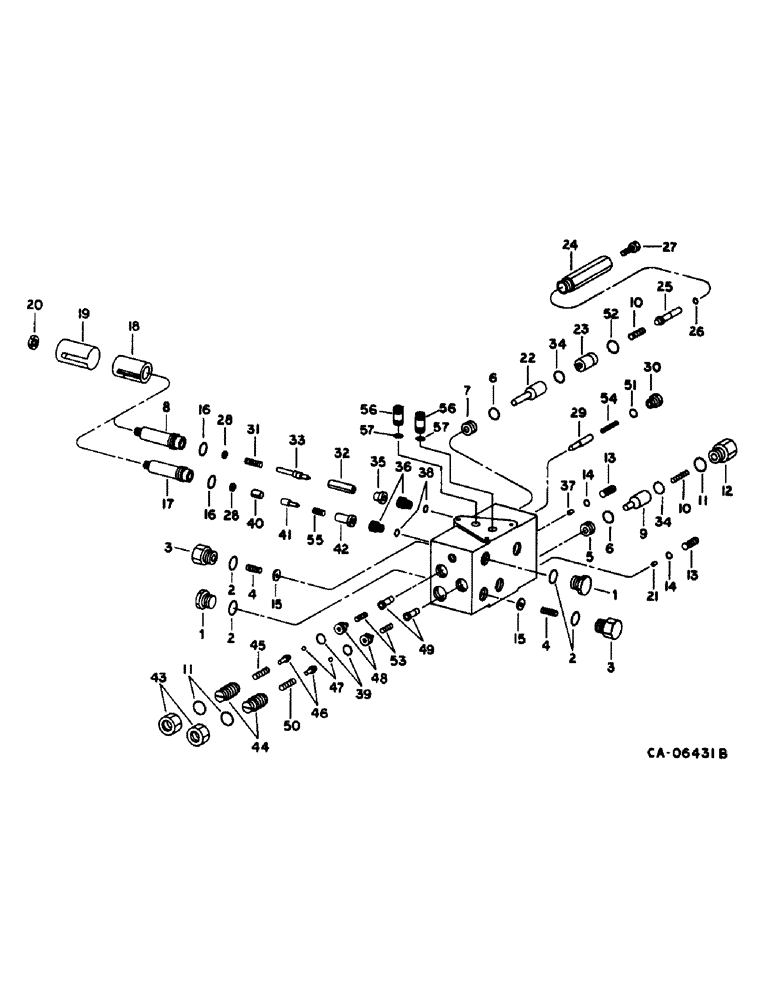

Запчасти Case IH 1470 (10-59) - HYDRAULICS, HEADER VALVE, HEADER LIFT, FEEDER CLUTCH AND STEERING, S.N. 10001 AND ABOVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1267036C92
VALVE
ASSY, header, replaces 1301681C91, includes ref. nos. 1 thru 17 and 21 thru 55
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
1
1301653C1
PLUG,3/4" - 16 x 9.50mm
PLUG, end
2шт.
3
1301655C1
PLUG
end, used with valve 1301681C91
2шт.
3
1272253C1
PLUG
end, used with valve 1267036C92
2шт.
4
1301656C1
SPRING
used with valve 1301681C91
2шт.
4
1272254C1
SPRING
used with valve 1267036C92
2шт.
5
1301657C1
PISTON
flow
1шт.
6
392382R1
O-RING,0.551" ID x 0.07" Width
9/16 x 11/16 class 6
2шт.
7
1301658C1
PISTON
flow
1шт.
8
1301627C1
STUD
ASSY, N.C.
1шт.
9
1301659C1
PIN
poppet
1шт.
10
1301660C1
SPRING
2шт.
11
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 in. OD class 6
4шт.
12
1301661C1
PLUG
hex-hd end
1шт.
13
1301631C1
PLUG,5/16" - 24 x 14.80mm, Slotted, HT
STUD, seal
2шт.
14
529909R1
O-RING,1.78mm Thk x 2.54mm ID
2шт.
15
1301662C1
WASHER
damping
2шт.
16
384578R1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
13/16 x 15/16 class 6
2шт.
17
1301641C1
STUD
ASSY, n.o.
1шт.
18
1301730C1
VALVE
SWITCH
2шт.
112432
NUT,#10-32, Brass
Machine screw #10-32, Brass
2шт.
19
1301632C1
CAP
coil
2шт.
20
107825
NUT,Stamped, 1/2"-20
1/2NF cad stamped
2шт.
21
1301647C1
POPPET
PLUG, orifice
1шт.
22
1301664C1
VALVE
PIN, lower
1шт.
23
1301665C1
PISTON
dash pot
1шт.
24
1301666C1
PLUG
adjusting
1шт.
25
1301667C1
PIN
adjusting
1шт.
26
21587R1
O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro
1/8 x 1/4 class 6
1шт.
27
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
1шт.
28
1301642C1
WASHER
2шт.
29
1301668C2
SPOOL
PIN, check valve
1шт.
Ref #29 - See SB 23-87 for Check Valve Poppet identification. 10/19/95
1шт.
30
1301669C1
PLUG
7/16-20
1шт.
31
1301640C1
SPRING
1шт.
32
1301648C1
ARMATURE
BUSHING
1шт.
33
1301347C1
PIN, bi-direct
1шт.
34
574069R1
O-RING,0.750" ID x .062"
3/4 x 7/8 class 5
2шт.
35
1301624C1
BUSHING
pole
1шт.
36
1301625C1
ORIFICE
PISTON, 2 used with valve 1301681C91, 1 used with valve 1267036C92
1шт.
36
1301639C1
PISTON
1 used with valve 1267036C92
1шт.
37
1301671C1
PLUG
orifice
1шт.
38
384937R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1/4 x 3/8 class 6
2шт.
39
382997R1
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1/2 x 5/8 class 6
2шт.
40
1301672C1
PIN
armature, used with valve 1301681C91
1шт.
40
1301643C1
VALVE
PIN, armature, used with valve 1267036C92
1шт.
41
1304644C1
CONNECTOR, ELEC
PIN
1шт.
42
1301646C1
BUSHING
pole
1шт.
43
1301674C1
NUT
1 in. hex.
2шт.
44
1301675C1
PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm
STUD
2шт.
45
1301676C1
SPRING
used with valve 1301681C91
1шт.
45
1272403C1
SPRING
used with valve 1267036C92
1шт.
46
1301677C1
PIN
spring guide
2шт.
47
17008R1
BALL,1/4" Dia
Grade 25 metal 1/4" Dia
2шт.
48
1301654C1
NUT
2шт.
49
1301678C1
VALVE
PISTON, relief valve
2шт.
50
1301636C1
SPRING
1шт.
51
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6
1шт.
52
370920R1
O-RING,1/2" ID
1/2 x 5/8 class 5
1шт.
53
1301679C1
SPRING
2шт.
54
1301729C1
SPRING
1шт.
55
1301821C1
SPRING
1шт.
56
1301630C1
TUBE
PISTON, thru
2шт.
57
379365R1
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3/8 x 1/2 class 6
4шт.
1282279C1
SEAL KIT
KIT, o-ring repair, consists of (4) o-rings (NSS), (2) o-rings (NSS), (4) o-rings (NSS), (2) o-rings (NSS), (2) o-rings (NSS), o-ring (NSS), (2) o-ring (NSS), (2) o-rings (NSS), (2) o-rings (NSS), o-ring (NSS), o-ring (NSS)
1шт.
530575R91
SHIM KIT
PACKAGE, relief valve shim, consists of (4) shim .005 in. (NSS), (4) shim .007 in. (NSS), (2) shim .020 in. (NSS), shim .042 (NSS)
1шт.
