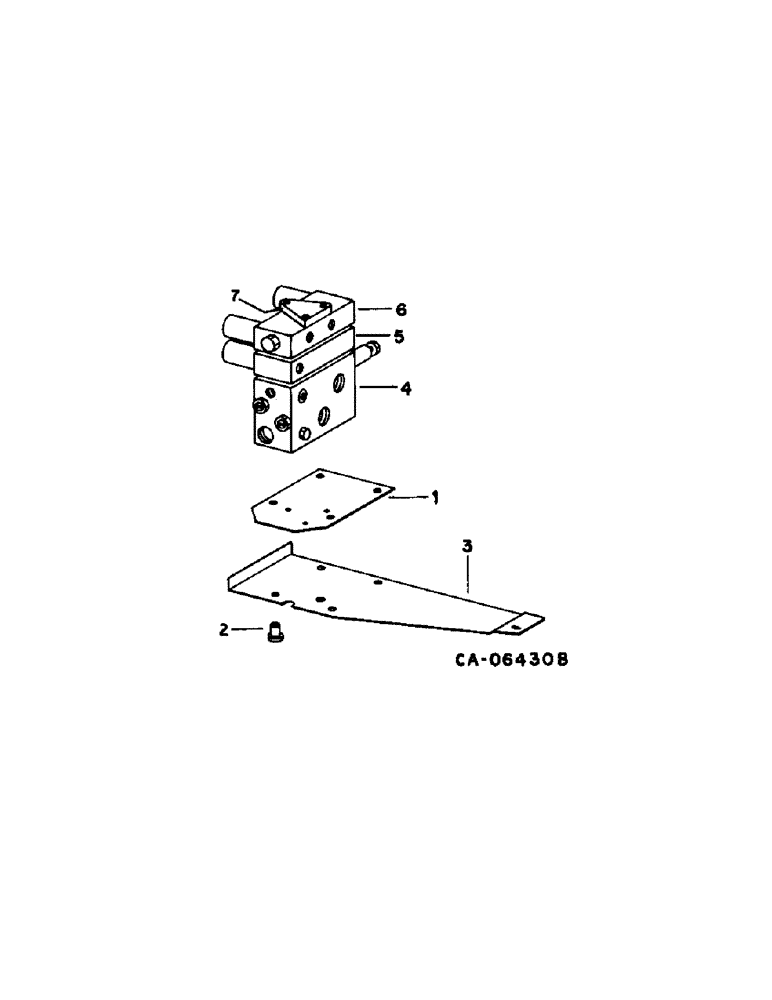

Запчасти Case IH 1470 (10-58) - HYDRAULICS, CONTROL VALVE, SERIAL NO. 5501 AND ABOVE (07) - HYDRAULICS

1

183683C1

BAR

control valve mounting

1шт.

2

196504C1

BUSHING

header lift valve

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

366112R1

WASHER

.781 x 1.250 x .150

1шт.

3

183684C1

SUPPORT

control valve

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

4

VALVE ASSY, header, refer to this group under header valve, feeder clutch, header lift, separator clutch and steering

1шт.

5

VALVE, unload/single BI-directional, refer to this group under unload single BI-directional valve, reel lift

1шт.

6

VALVE, double piloted, refer to this group under double piloted valve, unloaded swing

1шт.

7

85258C1

CAP

end

1шт.

28602R1

BOLT,Hex, 1/4" - 20 x 4 1/4", Gr 5

1/4 x 4-1/4 znd type 5

3шт.

NLS

NO LONGER SERVICED

1/4 ext tooth lock

3шт.
