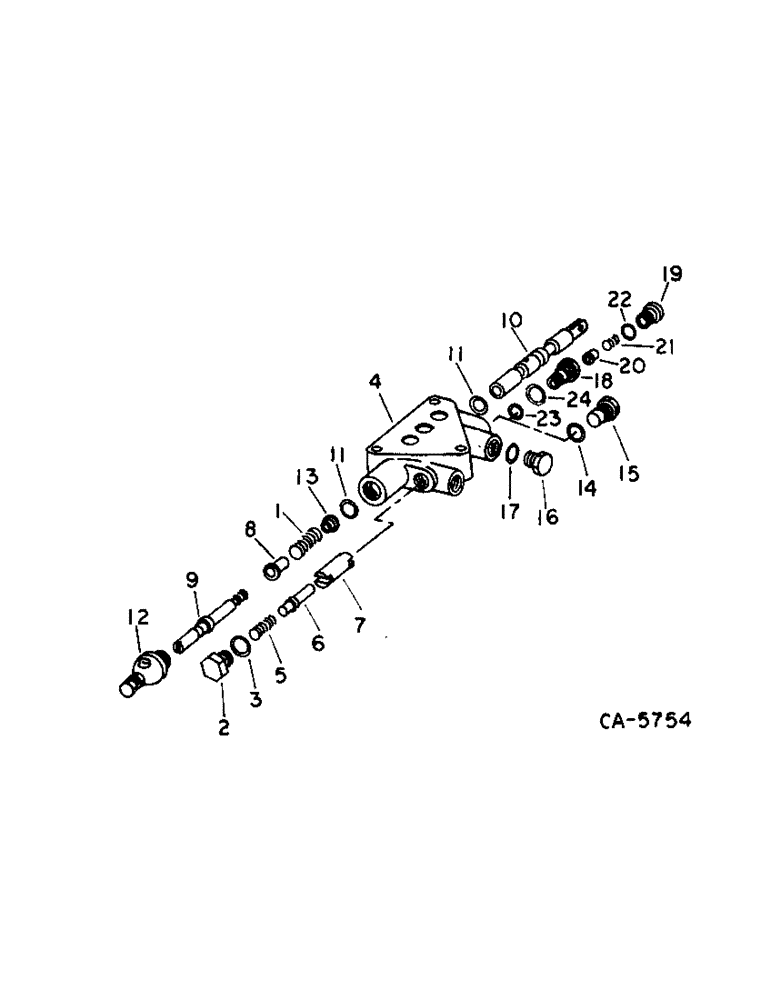

Запчасти Case IH 1470 (10-55) - HYDRAULICS, HEADER LIFT VALVE, SERIAL NO. 10000 AND BELOW (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
183656C91
VALVE
ASSY, includes ref. nos. 1 thru 17
1шт.
1
588353R1
SPRING
spool centering
1шт.
2
159801C1
PLUG
1шт.
3
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/16 class 5
1шт.
4
BODY, order valve assy (NSS)
1шт.
5
159382C1
SPRING
lockout
1шт.
6
159380C91
VALVE
POPPET ASSY
1шт.
7
173859C1
PLUNGER
lockout
1шт.
8
937195R1
SPRING WASHER
spool spring
1шт.
9
937197R1
SCREW,1/4" - 20 x 2-5/16"
spool spring
1шт.
10
SPOOL, single acting, order valve assy (NSS)
1шт.
11
252707R1
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
3/4 x 15/16 class 5
2шт.
12
937198R91
CAP
ASSY
1шт.
181595
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
5/16NF x 3/4 type 5
1шт.
124920
JAM NUT,Jam, 5/16"-24, G5
1шт.
13
937194R1
SPRING WASHER
spool spring
1шт.
14
252707R1
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
3/4 x 15/16 class 5
1шт.
15
588342R1
PLUG
hex., not for use w/ahc
1шт.
16
9410359
PLUG
1/2 C-Z str thd o-ring boss, not for use w/ahc
1шт.
17
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1/2 OD tube class 6, not for use w/ahc
1шт.
18
173827C91
VALVE
PLUG ASSY, check, includes ref. nos. 19 thru 24, for use w/ahc
1шт.
19
PLUG, slotted, order plug assy, 173827C91 (NSS)
1шт.
20
387436R1
TAPPET
PLUNGER, lift check
1шт.
21
387437R1
SPRING
lift check
1шт.
22
252739R1
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
1/2 x 11/16 class 6
1шт.
23
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
9/16 x 3/4 class 5
1шт.
24
232707R1
O-RING, 3/4 x 15/16 class 5
1шт.
159383C91
PACKAGE
KIT, seal, consists of
1шт.
321956R1
GASKET
O-RING, 3/32 x 5/8
1шт.
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
3/32 x 9/16
1шт.
252739R1
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
3/32 x 1/2
1шт.
310925R1
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
3/32 x 3/4
1шт.
159380C91
VALVE
POPPET ASSY
1шт.
Выбрано товаров: 33
