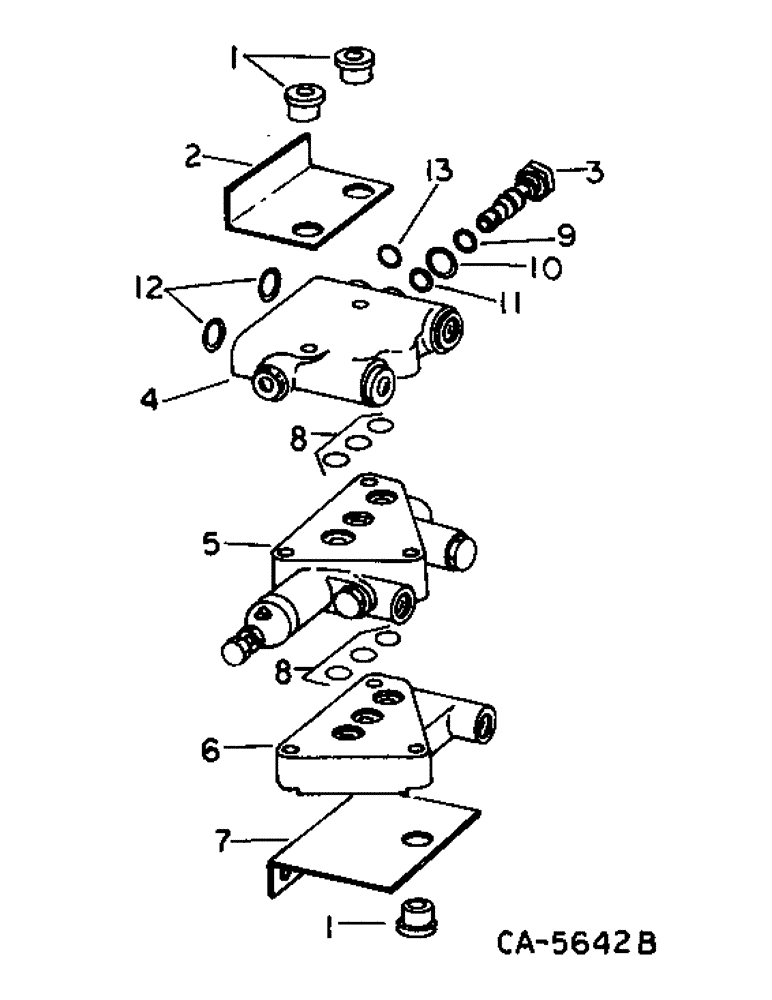

Запчасти Case IH 1470 (10-54) - HYDRAULICS, HEADER LIFT VALVE ASSEMBLY, SERIAL NO. 10000 AND BELOW (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
196504C1
BUSHING
header lift valve
3шт.
2
193258C1
SUPPORT
header lift valve mounting upper
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
3
167447C91
VALVE
ASSY, relief, includes ref. nos. 9 thru 11
1шт.
3
179666C2
SHUT-OFF VALVE
VALVE ASSY, 2250 PSI, includes ref. nos. 9 thru 11
1шт.
4
183655C93
LOCK VALVE
VALVE ASSY, LH port plate, includes ref. nos. 12 and 13
1шт.
5
VALVE ASSY, refer to this group under header lift valve
1шт.
6
166882C1
VALVE
RH end plate
1шт.
7
196571C1
ANGLE
header lift valve mounting lower
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
8
574069R1
O-RING,0.750" ID x .062"
3/4 x 7/8 class 5
6шт.
9
252707R1
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
3/4 x 15/16 class 5
1шт.
10
673644R1
WASHER
WASHER, back-up
1шт.
11
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/16 class 5
1шт.
12
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
11/16 x 7/8 class 5
2шт.
13
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
9/16 x 3/4 class 5
1шт.
183658C1
RING
KIT, seal repair
1шт.
166883C91
PACKAGE
KIT, seal, consists of kit, port plate repair
1шт.
In the seal kit 166883C91. the O-Ring, 35221R1 should be 352221R1.10/23/95
1шт.
35221R1
O-RING, 3/32 x 9/16 ID
1шт.
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
3/32 x 11/16 ID
2шт.
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
3/32 x 5/8 ID
1шт.
252707R1
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
3/32 x 3/4 ID
1шт.
673644R1
WASHER
3/32 x 5/8 back-up kit, between sections
2шт.
574069R1
O-RING,0.750" ID x .062"
1/16 x 3/4 ID
6шт.
159383C91
PACKAGE
KIT, seal repair
1шт.
