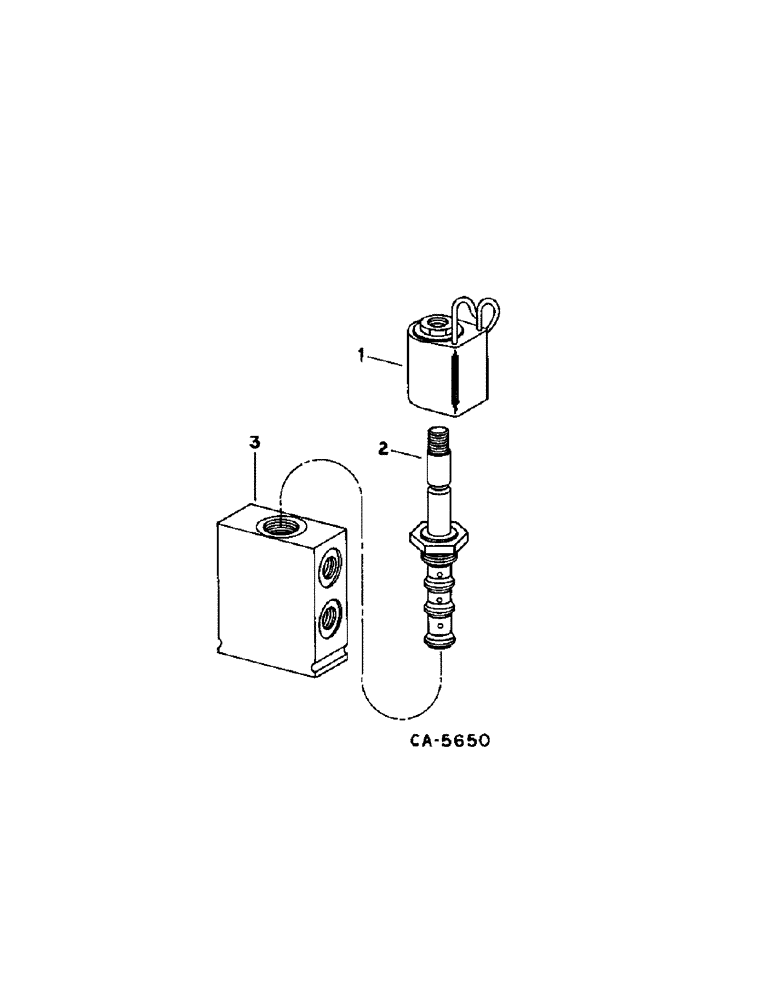

Запчасти Case IH 1470 (10-52[1]) - 4 WHEEL DRIVE, FEEDER AND SEPARATOR CLUTCH VALVE (07) - HYDRAULICS

187505C91

VALVE

ASSEMBLY, 4 wheel drive, feeder and separator clutch, includes ref. nos. 1, 2 and 3

3шт.

1310706C1

ANGLE

control valve bracket

1шт.

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4 x 2 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

22859R1

WASHER

.344 x .750 x .164

1шт.

1

187852C1

SWITCH

KIT, solenoid

1шт.

2

187849C1

SOLENOID VALVE

VALVE, 4 way solenoid

1шт.

3

187851C1

BODY

valve

1шт.

187850C1

SEAL KIT

KIT, o-ring and washer service, consists of o-ring (NSS), washer, back-up (NSS)

1шт.
