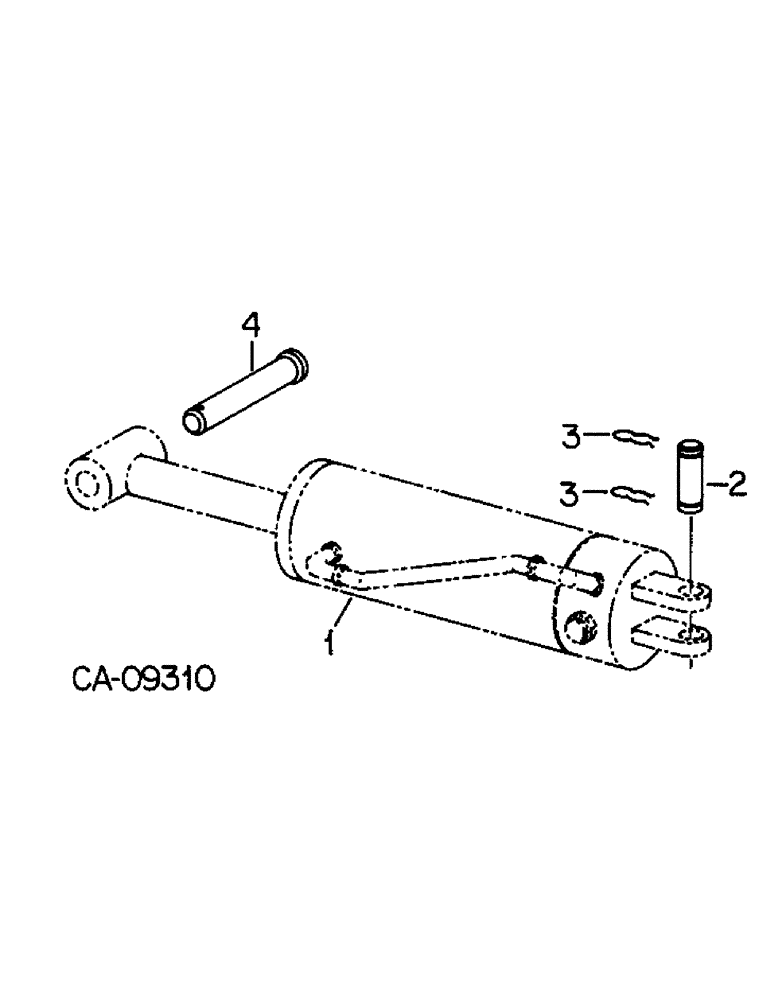

Запчасти Case IH 1470 (10-51) - HYDRAULICS, LEVELING CYLINDER (07) - HYDRAULICS

1

1304218C92

CYLINDER

ASSY, leveling, LH

1шт.

1

1304219C92

CYLINDER

ASSY, leveling, RH, for service parts refer to CYL-1 section B

1шт.

1304224C2

KIT

cylinder service

1шт.

2

1304196C1

PIN

clevis

2шт.

3

1304197C1

PIN

spring

4шт.

4

1304582C2

PIN

rod

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.
