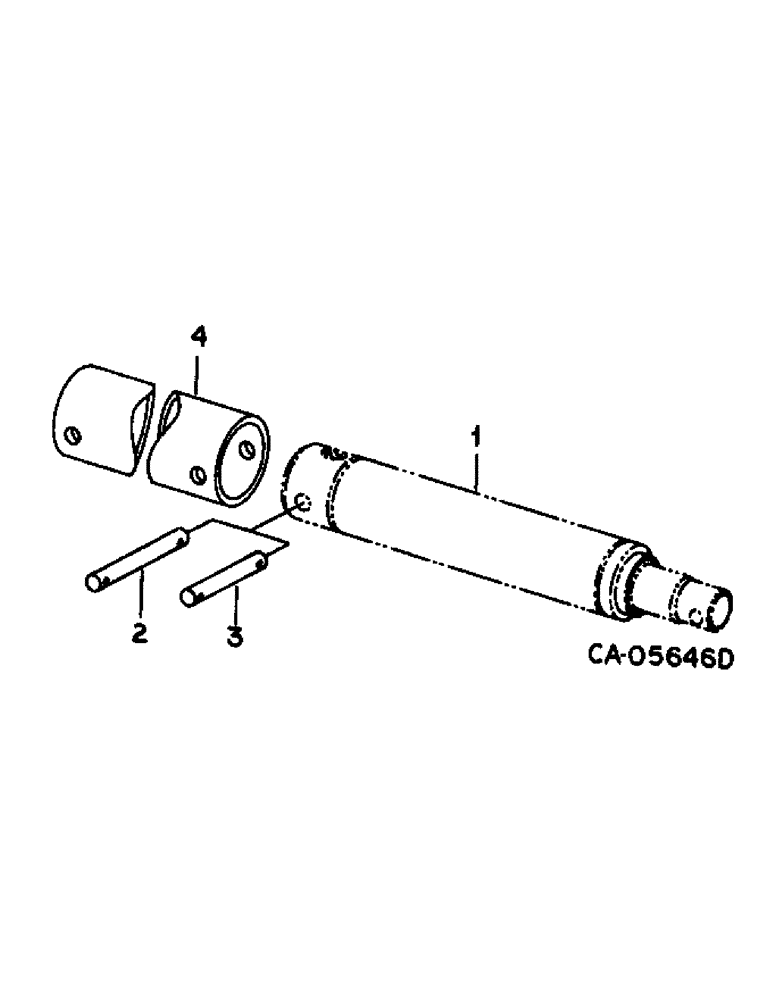

Запчасти Case IH 1470 (10-50) - HYDRAULICS, HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, for service parts refer to CYL-1 section A

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1470 INTERNATIONAL HARVESTER HILLSIDE COMBINE, Assy

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.

2

195822C1

PIN,25.4mm OD x 228.6mm L

header lift cylinder, used w/third cylinder

2шт.

3

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder, 2 used w/third cylinder, 6 used w/o third cylinder

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

4

1320145C1

BRACE

TUBE, lift cylinder extension, 8 in.

1шт.

Ref #4 - 1320145c1 Is 10.2" long

1шт.

4

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

lift cylinder extension, 10 in.

1шт.

1320845c1 Is 12.23 " long

1шт.

4

1314137C1

TUBE,2.75" ID, 3.5" OD

lift cylinder, 12.2 in.

1шт.
