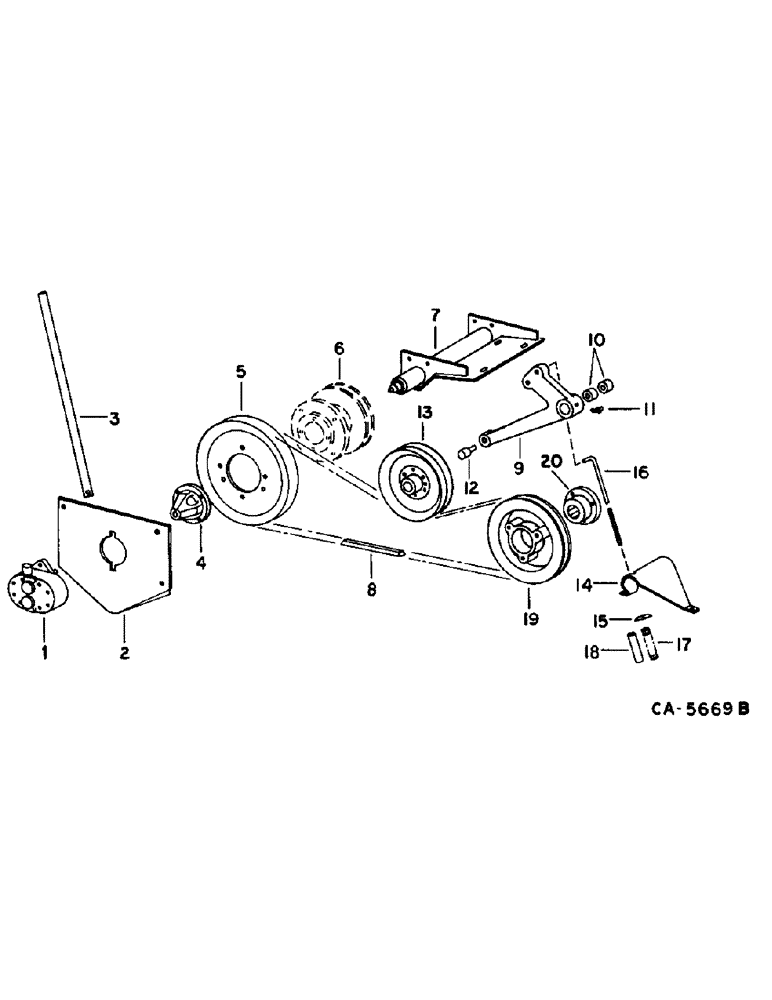

Запчасти Case IH 1470 (10-49) - HYDRAULICS, AUXILIARY HYDRAULIC PUMP (07) - HYDRAULICS

1

1272258C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, Cessna, replaces 187746C91 and 184794C91

1шт.

1272258C92R

REMAN-HYD PUMP

1470. Reman for New P/N 1272258C91.

1шт.

1272258C92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178373

WASHER, .531 x 1.000 x .056

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

2

192958C2

BAR

hydraulcic pump

1шт.

3

192957C1

ANGLE

hydraulic pump plate

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

4

191207C1

HUB

hydraulic pump

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

192943C1

PULLEY ASSY.

PULLEY ASSY, auxiliary shaft driven, 11.65 in. OD, 295.9 mm OD

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

PULLEY ASSY, auxiliary pump drive, refer to group 26 under grain tank unloader drive

1шт.

7

191203C1

SUPPORT

ASSY, auxiliary drive rear, for use w/o straw chopper, Serial Range: -10000

1шт.

7

181338C1

SUPPORT ASSY.

SUPPORT ASSY, auxiliary drive rear, for use w/straw chopper, Start Serial: 10001

1шт.

7

181338C1

SUPPORT ASSY.

SUPPORT ASSY, auxiliary drive rear, for use w/straw chopper, Serial Range: -10059

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cad all metal prevailing, torque hex. lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

21211R1

WASHER

.781 x 1.500 x .154

1шт.

8

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Auxiliary pump drive, OC 0.879" W x 96.11" L

1шт.

9

192946C92

LEVER ASSY.

LEVER ASSY, auxiliary pump drive, includes ref. no. 10

1шт.

10

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

auxiliary pump drive lever

2шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self-tap lub

1шт.

12

274844R91

BEARING ASSY,30mm OD x 73.66mm L

flat idler pulley

1шт.

13

192865C1

PULLEY

ASSY, flat idler, 8 in. OD, 203.2 mm OD

1шт.

14

192092C1

SUPPORT

auxiliary pump drive pivot

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

15

194652C1

PIVOT

BAR, auxiliary drive pivot

1шт.

16

182752C1

ROD

auxililary drive jackshaft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

17

V368

SPRING

auxiliary drive rod

1шт.

18

181119C1

SPACER

auxiliary drive rod

1шт.

19

196481C1

PULLEY

auxiliary pump drive, 9.25 in. OD, 235.0 mm OD

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 type 8

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

20

196482C2

HUB

pump drive pulley

1шт.

178385C2

SEAL KIT

seal repair, for use w/pump 187746C91

1шт.

168318C93

SEAL KIT

seal repair, for use w/pump 187794C91

1шт.

1272638C2

SEAL KIT

KIT, seal repair, for use w/pump 1272258C91

1шт.
