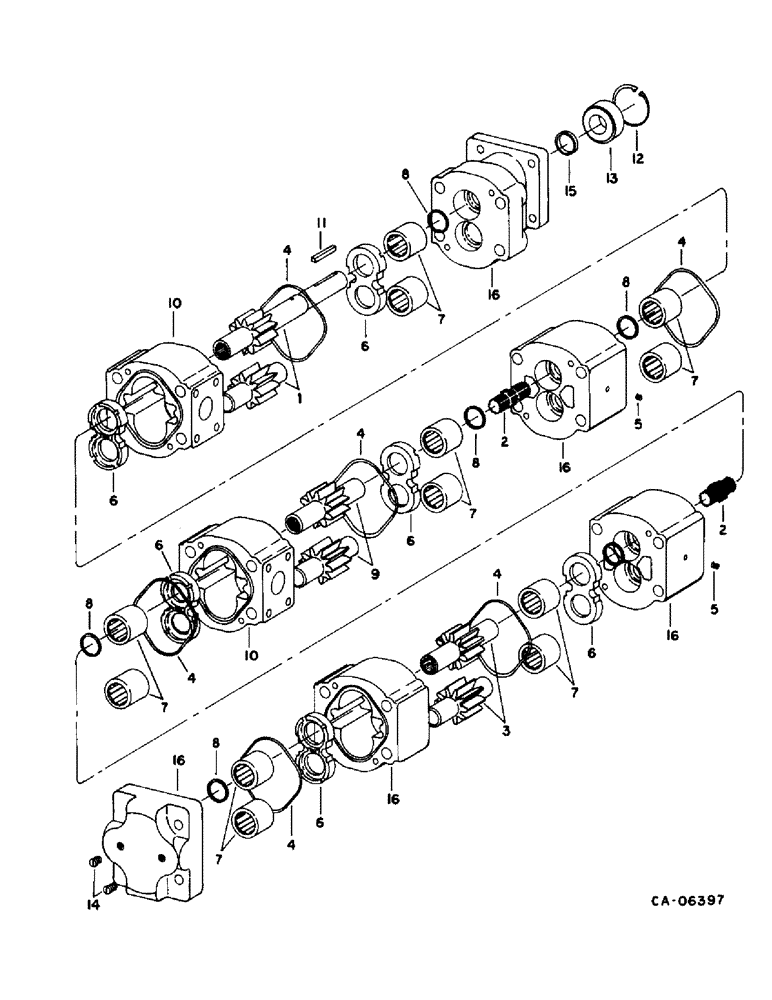

Запчасти Case IH 1470 (10-47) - HYDRAULICS, PUMP, HEADER AND REEL DRIVE (07) - HYDRAULICS

1304186C91

PUMP

ASSY, header and reef drive, includes ref. nos. 1 thru 16

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

4шт.

1314124C1

SCREW,Flat Hd, 1/2" - 13 x 2"

1/2 x 2 flat socket hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3031159R1

WASHER

4шт.

1

1304198C1

GEAR-SET

GEAR SET, matched

1шт.

2

3035663R1

SHAFT

2шт.

3

631238C1

GEAR SET

1шт.

4

3035569R1

SEAL

6шт.

5

634197C1

PLUG

2шт.

6

610228C2

PLATE

6шт.

7

610247C91

BEARING

12шт.

8

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

replaces 627657C1

6шт.

9

3035662R91

GEAR SET

1шт.

10

637664C1

HOUSING

2шт.

11

1304268C1

KEY

#25

1шт.

12

3035667R1

RING

snap

1шт.

13

3035655R91

BALL BEARING

1шт.

14

625322R1

PLUG

2шт.

15

L32318

SEAL

replaces 627659C91

1шт.

16

HOUSING, not serviced separately, order pump assy, 1304186C91

1шт.
