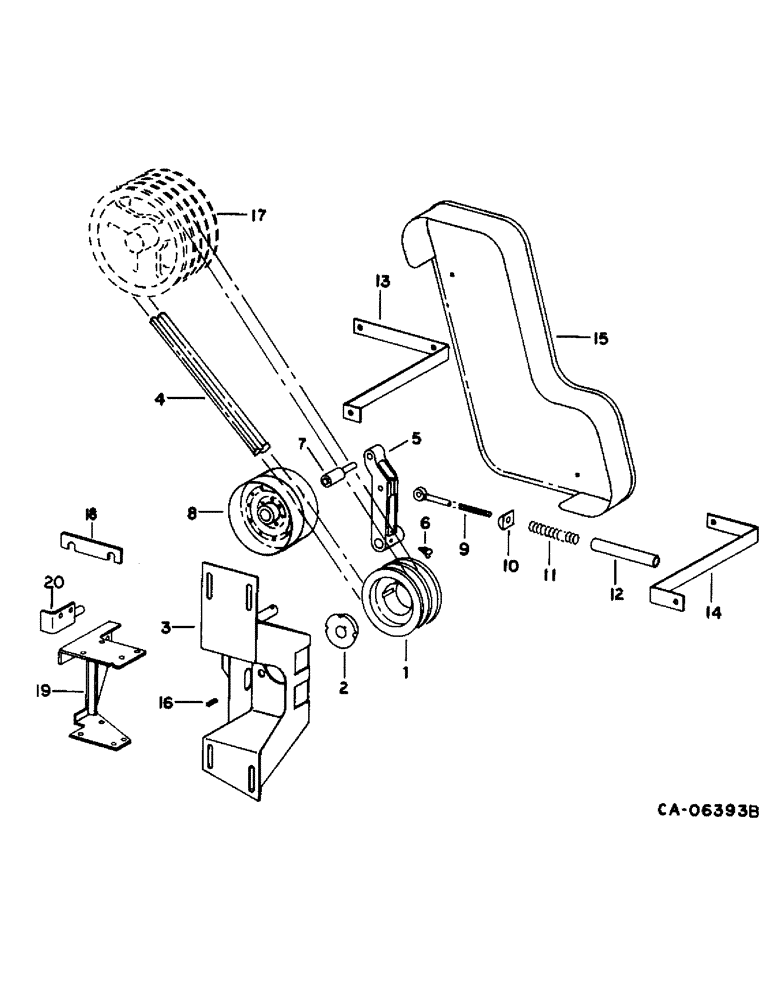

Запчасти Case IH 1470 (10-45) - HYDRAULICS, HEADER AND REEL PUMP DRIVE (07) - HYDRAULICS

1

1304185C1

PULLEY

pump. 7 in. OD, 177.8 mm OD

1шт.

83-15016

SET SCREW,Hex Soc, 1/2"-13 x 1"

SCREW, 1/2 x 1 pln c/pt hdl/hs set

1шт.

2

1304136C1

HUB

BUSHING, pulley

1шт.

3

SUPPORT ASSY, pump mounting, furnish the following, Serial Range: -10075

1шт.

1314060C1

SUPPORT

1шт.

1314061C1

SUPPORT

1шт.

1314067C1

SUPPORT

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

1314061C1

SUPPORT

ASSY, pump mounting, Start Serial: 10076

1шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 hex-hd flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

4

1304061C2

V-BELT,0.88" W x 119.19" L

Pump Drive 0.88" W x 119.19" L

1шт.

5

171227C1

LEVER

ARM, belt tightener

1шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

6

16964R91

FITTING

1/4 90 deg lube

1шт.

7

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

pulley

1шт.

8

174757C1

PULLEY

idler, 8 in. OD, 203.2 mm OD

1шт.

9

171479C1

BOLT,1/2" - 13 x 24.70"

tightener

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1.750 hd type 1

1шт.

10

194652C1

PIVOT

BAR, pivot arm

1шт.

11

PO23

SPRING

1шт.

12

190462C1

TUBE,1.171" ID, 1.315" OD, 6.88" Length

tightener spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22042R1

WASHER

.531 x 2.000 x .105

1шт.

13

1304549C2

SUPPORT

BRACKET ASSY, shield upper

1шт.

14

1304615C2

SUPPORT

BRACKET ASSY, shield lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

1304483C1

SUPPORT

SHIELD ASSY, pump drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

16

1304268C1

KEY

.31 x .47 x 1.5

1шт.

17

PULLEY, feeder drive, refer to group 20 under belt drive, RH side

1шт.

18

1304740C1

BAR

SHIM, .06 in.

2шт.

18

1304741C1

BAR

SHIM, .12 in.

1шт.

19

1314060C1

SUPPORT

ASSY, idler shaft, Start Serial: 10076

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

1314067C1

SUPPORT

ASSY, idler pivot, Start Serial: 10076

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
