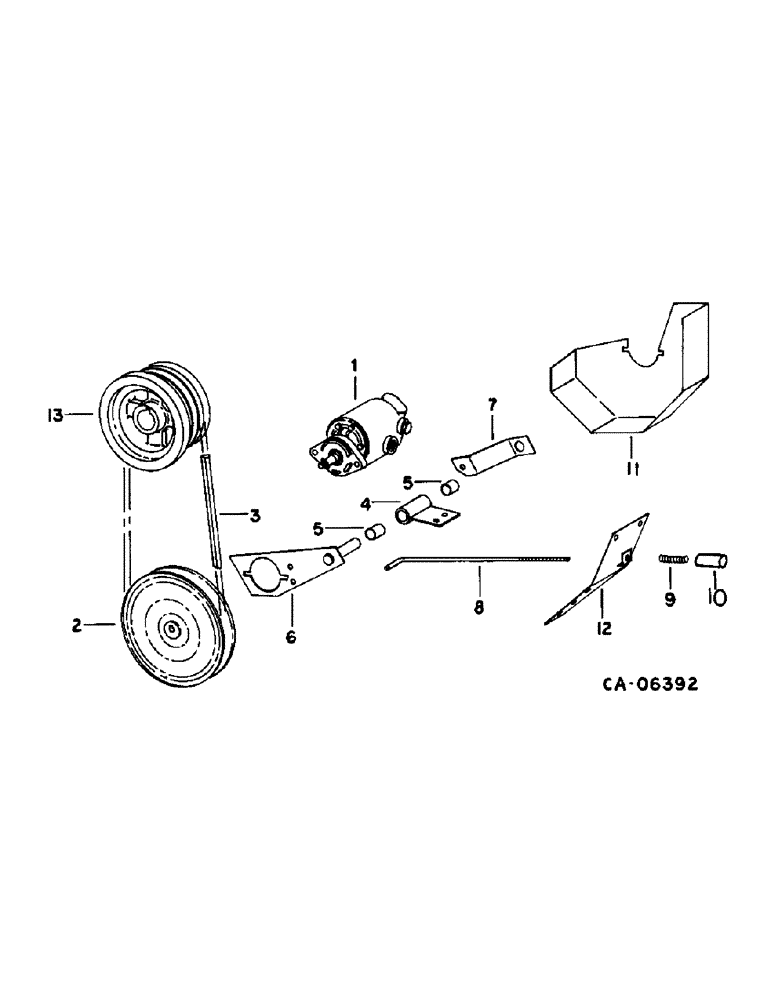

Запчасти Case IH 1470 (10-44) - HYDRAULICS, LEVELING PUMP DRIVE (07) - HYDRAULICS

1

1304183C91

PUMP

ASSY, leveling

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 crg type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

2

1304182C1

PULLEY

ASSY, pump driven, 12 in. OD, 304.8 mm OD

1шт.

20729R1

NUT,3/8"-16, G5, LH

3/8 znd lht type 5

1шт.

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

3

1304181C1

V-BELT,62.99" L

Pump Drive 62.99" L

1шт.

4

1304995C91

PIVOT

ASSY, pump, replaces 1304709C9, includes ref. no. 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 znd type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

pump pivot

2шт.

6

179321C2

SUPPORT

ARM ASSY, pump

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

7

188733C1

SUPPORT

ASSY, pump

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

1304711C1

ROD

pump tightener spring

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

9

PO32

SPRING, pump tightener

1шт.

10

12781

SPACER,3/8" Pipe x 4 3/8"

pump tightener spring

1шт.

11

1304712C1

SUPPORT

SHIELD, pump drive

1шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

22196R1

WASHER

.469 x .875 x .056

1шт.

12

SUPPORT ASSY, engine rail, refer to group 12 under engine rails

1шт.

13

DAMPENER ASSY, refer to ENG-5 parts catalog, section N

1шт.

1301934C1

DECAL

KIT ASSY, seal repair

1шт.

1301935C1

KIT

ASSY, backplate repair

1шт.
