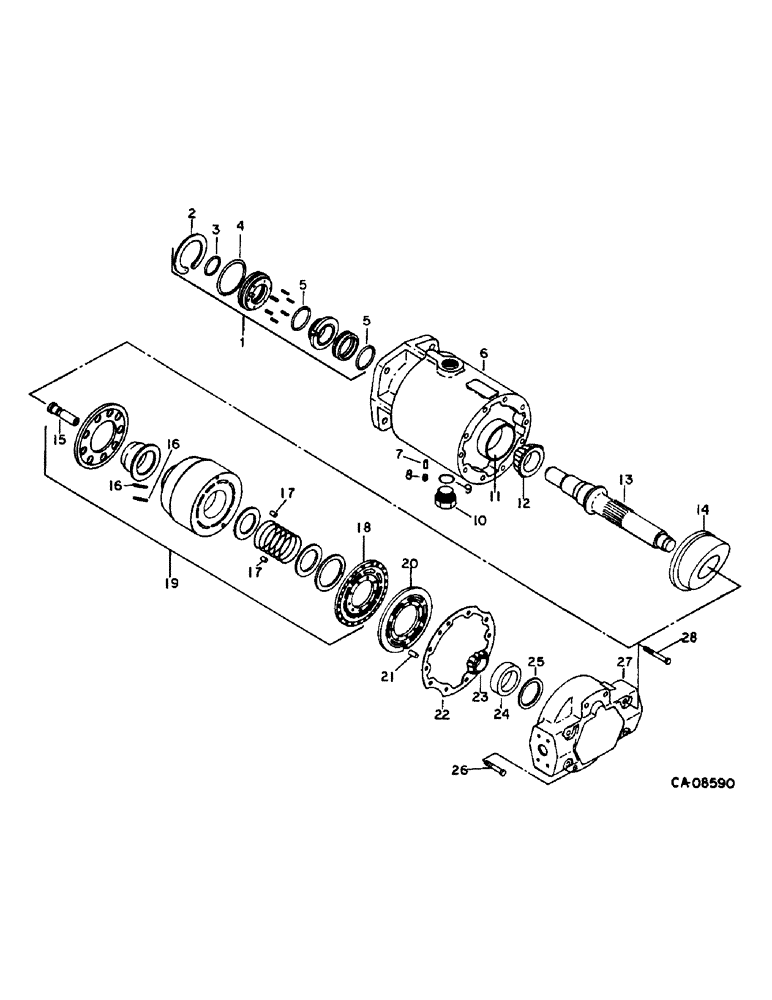

Запчасти Case IH 1470 (10-42) - HYDRAULICS, HYDROSTATIC MOTOR, SINGLE SPEED, EATON (07) - HYDRAULICS

1252345C92

MOTOR, HYDRAULIC

MOTOR ASSY, hydrostatic (Replaces 1252345C92)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

166506C1

GASKET,0.81mm Thk

hyd motor

1шт.

1

142518C92

PACKAGE

KIT, shaft seal, replaces 133751C92

1шт.

2

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

3

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

1-3/8 x 1-1/2 x 1/16

1шт.

4

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32

1шт.

5

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

2шт.

6

HOUSING, motor, not serviced separately, order motor assy, 1252345C92

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 pln type 5

1шт.

7

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 pln hardened dowl

1шт.

8

444688

PLUG

1/8-27 sol-hd pipe

1шт.

9

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

10

9410361

PLUG

1-1/16-12 str-thd o-ring boss

1шт.

11

130503H

BEARING CUP

BEARING, output shaft cup

1шт.

12

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING ASSY, output shaft cone

1шт.

13

224667C1

SHAFT

output

1шт.

14

142410C1

HOUSING

fixed swash plate

1шт.

15

140751C1

PISTON ASSY.

PISTON ASSY, cylinder block

9шт.

16

140752C1

PIN

pre-load dowl

6шт.

17

140754C1

PIN

bearing plate dowl

2шт.

18

140753C1

PLATE

bearing

1шт.

19

140750C92

KIT

rotating group

1шт.

20

140755C2

PLATE

motor valve

1шт.

21

140754C1

PIN

valve plate dowel

1шт.

22

140756C1

GASKET

end cover

1шт.

23

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

ASSY, output shaft cone

1шт.

24

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

ASSY, output shaft cone

1шт.

25

140760C91

SHIM KIT

PACKAGE, shim service

1шт.

26

NLS

NO LONGER SERVICED

2шт.

27

COVER, motor end, not serviced separately, order motor assy, 1252345C92

1шт.

28

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 pln type 5

6шт.

142518C92

PACKAGE

KIT, shaft seal, consists of

1шт.

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

1-3/8 x 1-1/2 class 6

1шт.

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 class 5

1шт.

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 class 5, retainer (NSS), springs (NSS), seal (NSS), seal (NSS)

1шт.
